4″ Chipping Diameter
4″ Chipping Diameter
Reversible Chipping Blades
Reversible Chipping Blades

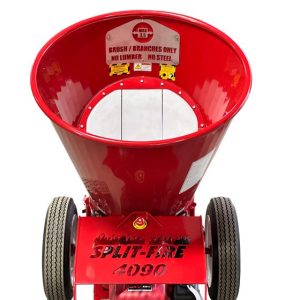

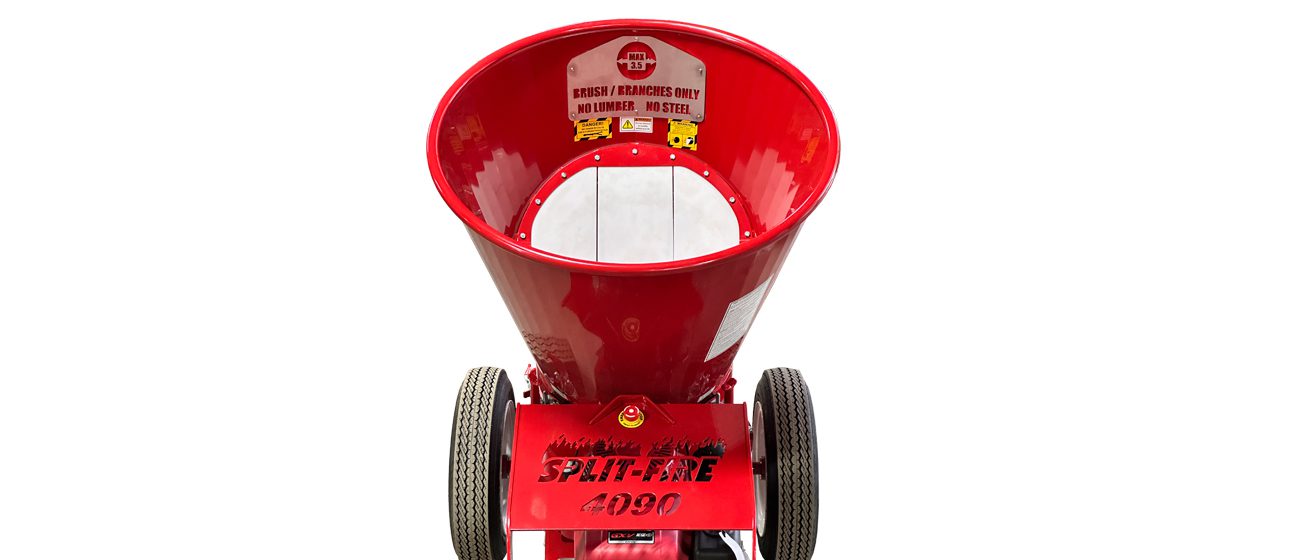

Extended Infeed Chute Designed for Safety
Extended Infeed Chute Designed for Safety
Designed For Easy Maintenance
Designed For Easy Maintenance
Compact Design
Compact Design

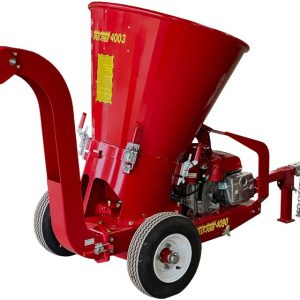

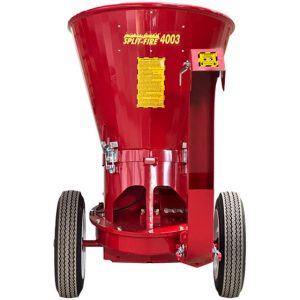

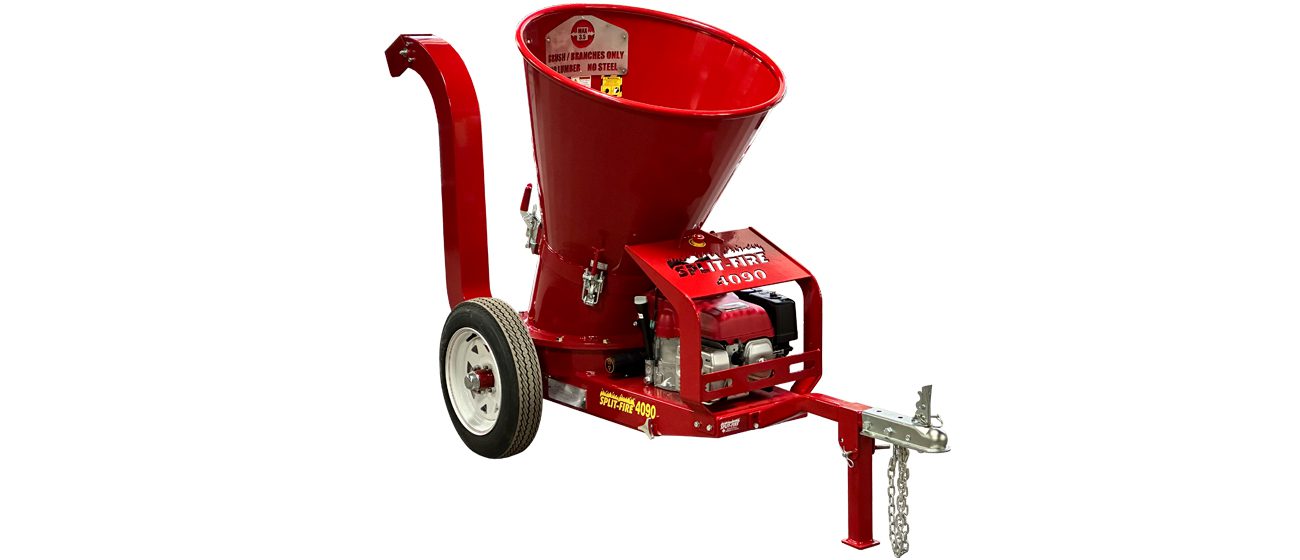

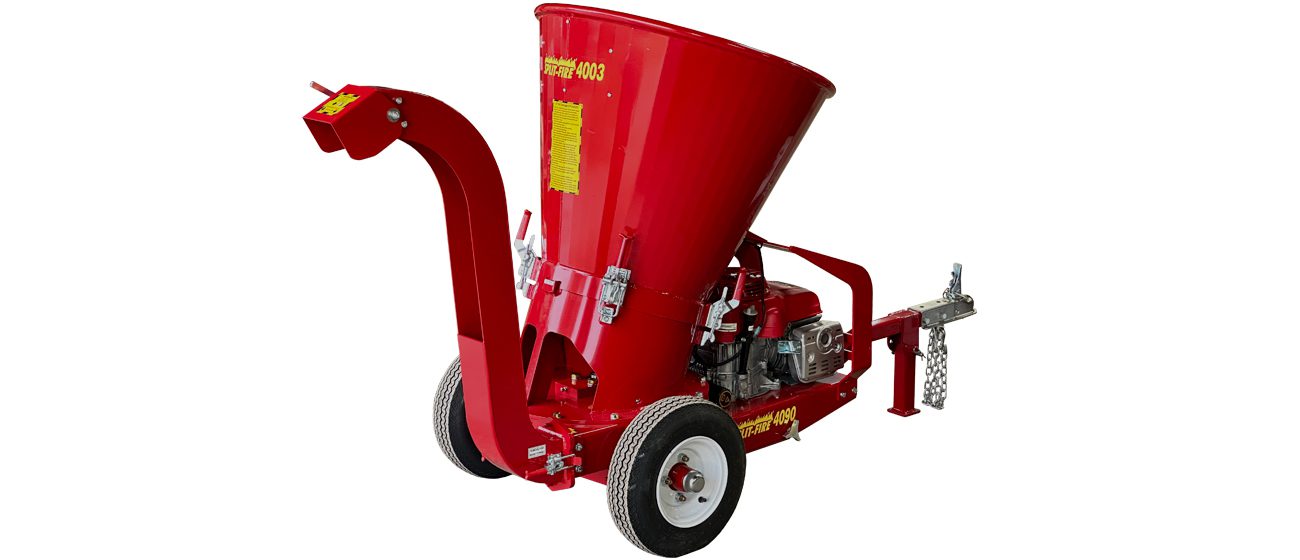

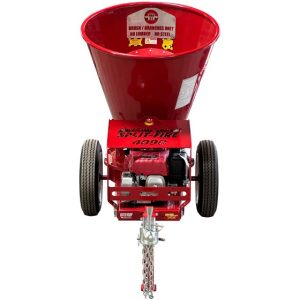

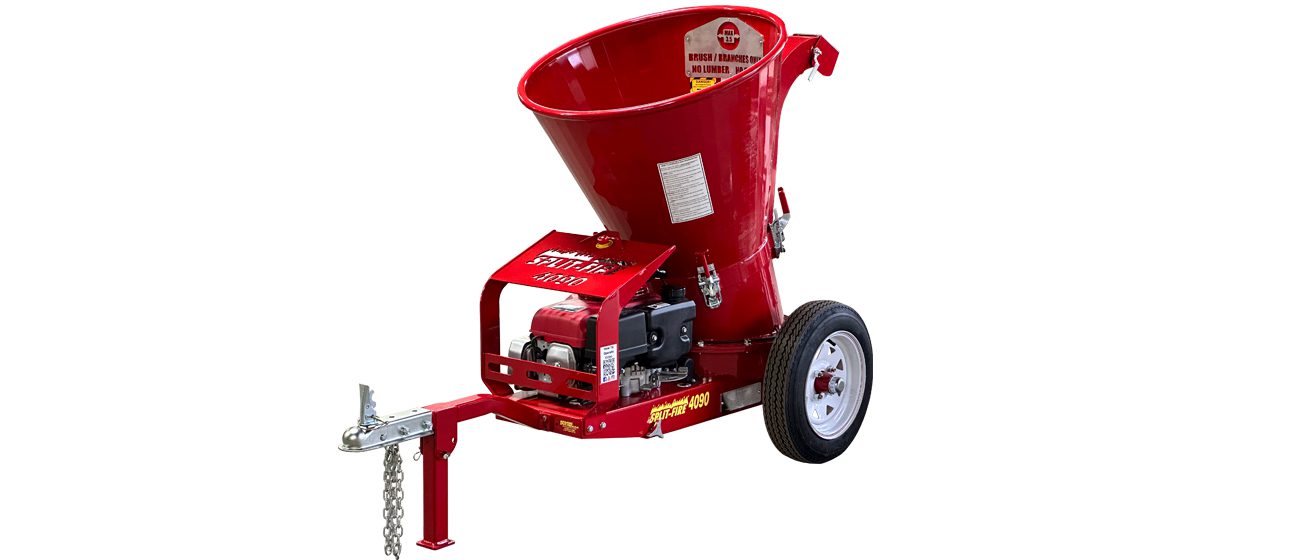

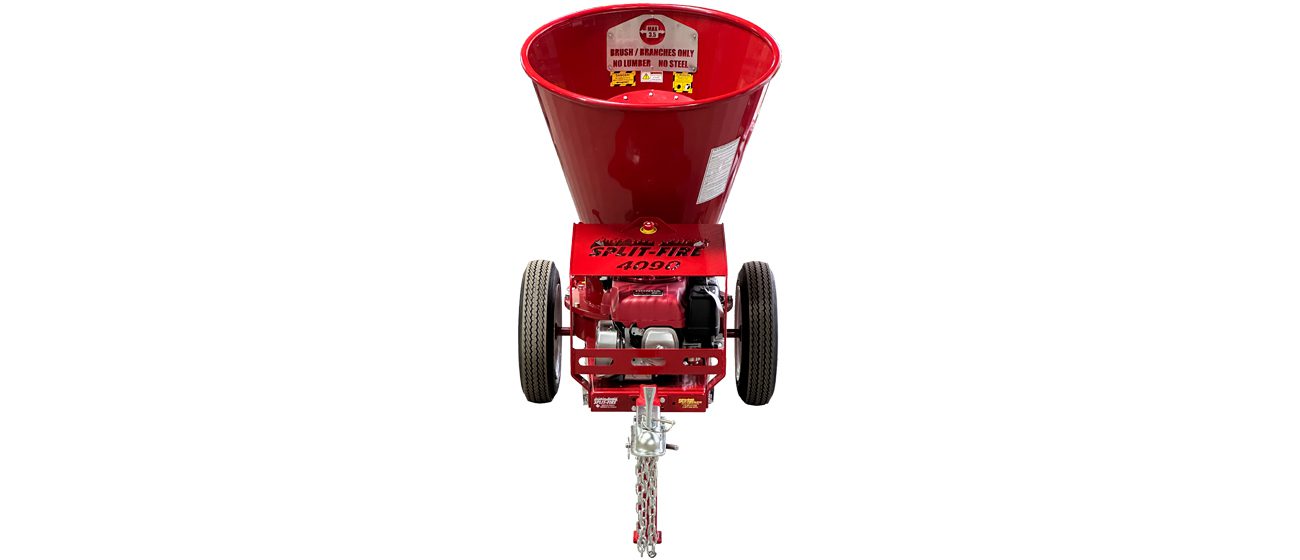

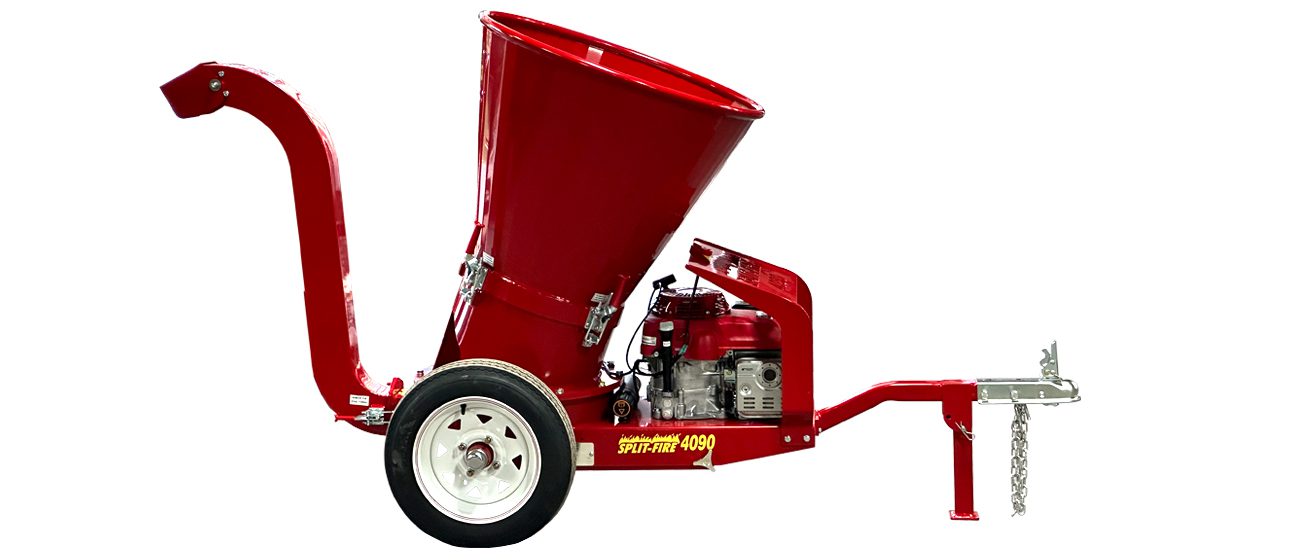

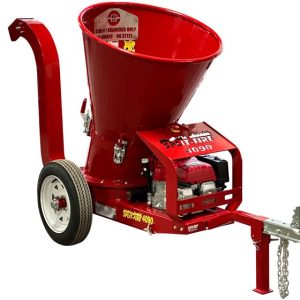

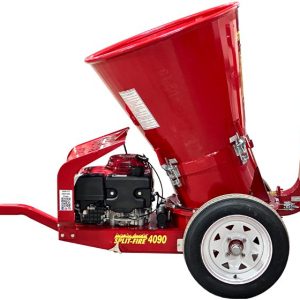

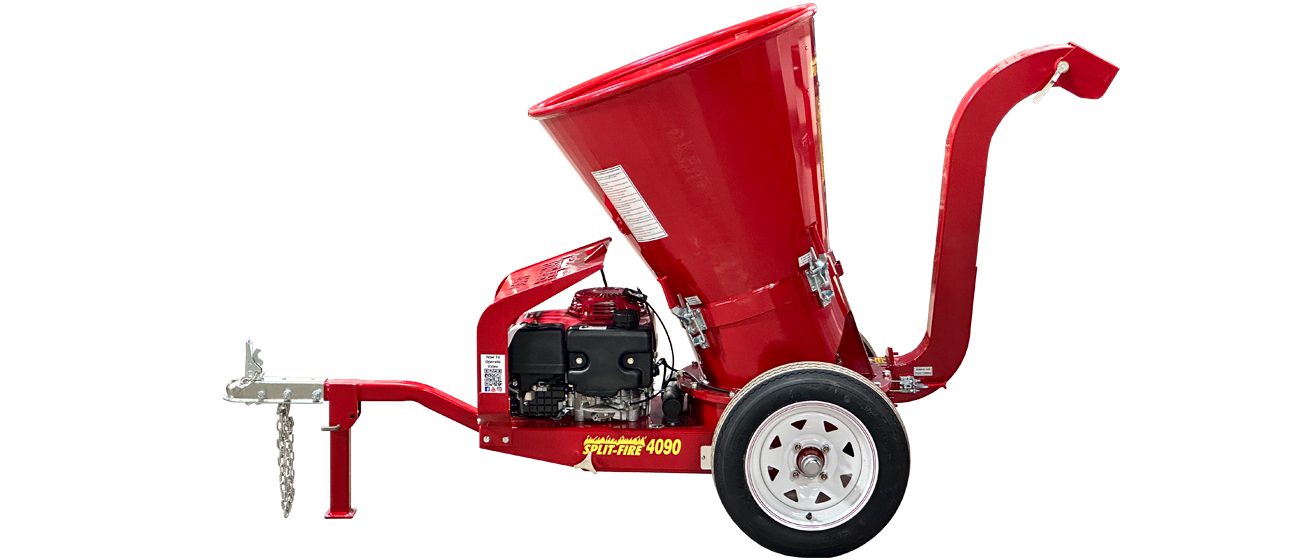

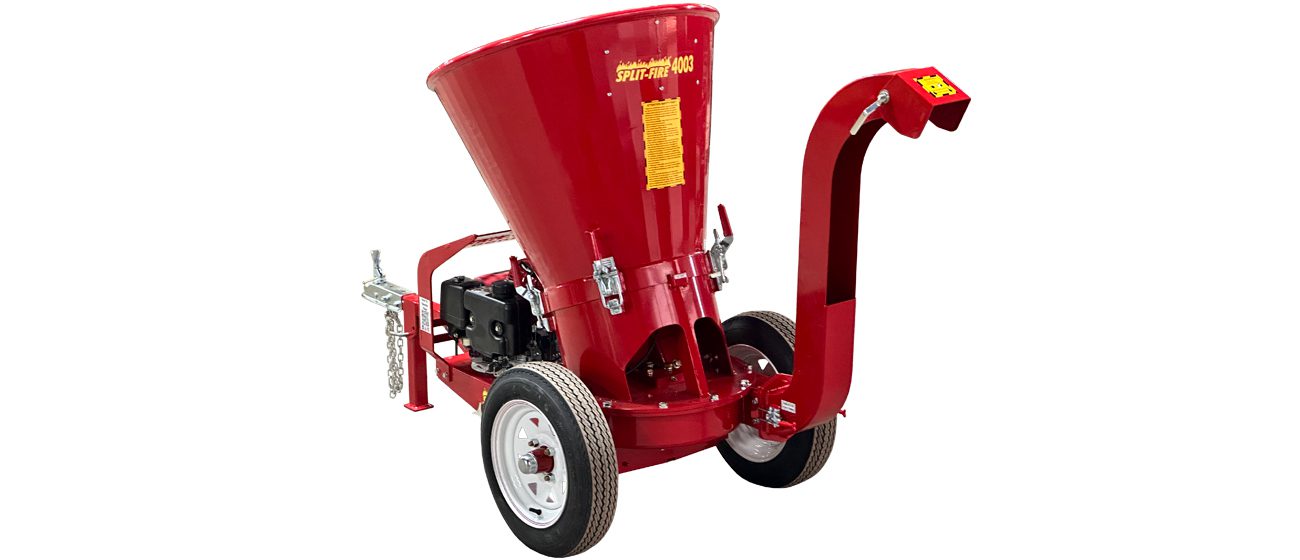

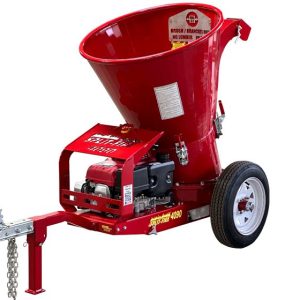

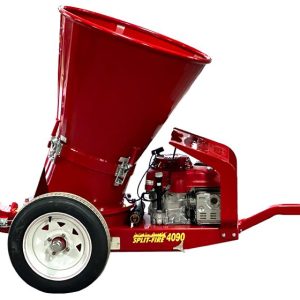

Horizontal Wood Chipper 4090

Okay with unconventional? The Split-fire 4090 rethinks woodchipper design, and has been specifically designed for safety, ease of use and productivity. The innovative design is paired with a heavy build. Fitted with a 100 lbs. rotor and 3/8” chipping box the 4090 woodchipper is effective for branches and limbs up to 4”. Reduce most pre-trimming and cutting as the rotor opening gapes past 6” to accept leafy and Y shaped branches with ease.

Whether it’s being used to keep your property in tip top shape, or as a profit maker for your rental operation, the 4090 is sure to impress. Several options are available to allow you to configure the chipper specifically for your needs. The design and How-To YouTube videos allow for quick and easy servicing. The 4090 will make any chipping a breeze, and will make an otherwise long day, short and enjoyable.

LETS BUILD IT!

$4,869.00

Product total
Options total
Grand total
Pay a deposit of $500.00
Share with friends:

DEPOSIT

Minimum $500 deposit is required to have you
machine put on order.

DISCLAIMER

Once your machine is in the manufacturing
process the $500 is non refundable.
More Machine Info Below

MACHINE SPECS

Chipper Box 3/8" Plate
Infeed Chute 12 ga. steel
Max Diameter 4"
Power Source Honda GXV 390
Chip Size 1/2" – 3/4"
Rotor Diameter 19 1/2"
Rotor Weight 100 lbs
Knives 2 Blade | 7 1/4" x 2 3/4" x 7/16"
Hitch Size 2" Ball
Final Drive Centrifugal Clutch
Infeed Chute Width 32" wide
Infeed Chute Depth 36 1/2" deep
Blade Opening 110 sq inches
Overall Width 34"
Overall Length 73"
Overall Height 52"
Weight 550 lbs
Self-Feeding Yes
Finish Powder coated
Bed Knife Adjustable
Tire Size 4.80" x 8"
