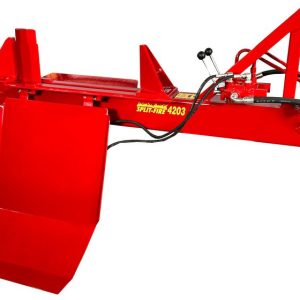

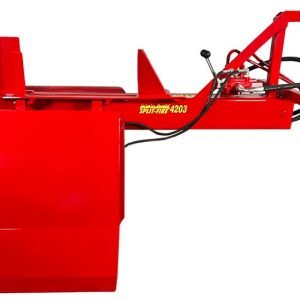

Why maintain another engine and hydraulic system? Utilize that farm tractor with the 4203 3 point hitch wood splitter. Made for large frame tractors, the 4203 will push 32 tons at 2900 PSI. Made for large, twisted logs, the 4203 is a 3pt hitch implement that is meant to be used, and then forgotten about until you need it next. Maintenance free due to the UHMW slider, and all fluid and power being utilized from the tractor. The internal cylinder keeps components safe from damage and the elements.
Add weld-on options like the hydraulic log lifter to help lift the big stuff or an extended stoke to make that perfect long stroke log splitter for boiler wood. Simple and powerful, this 4203 3pt log splitter is made to last, all while offering safe, simple, and efficient operation.
$2,577.00
| Frame | 7" x 7" steel tube |
|---|---|
| Tonnage | 32 tons @ 2900 psi |
| Cycle Speed | 9 sec. @ 20 gpm | 15 sec. @ 12 gpm | 23 sec. @ 8 gpm |
| Power Source | 3 Pt. Hitch |
| Pump | Tractor Pump Displacement |
| Reservoir | Tractor |
| Stroke Length | 24" |
| Bed Width | 16" |
| Quick Connects | Not included |
| Overall Width | 34" |
| Overall Length | 74" |
| Overall Height | 26" |
| Weight | 430 lbs |
| Bed Weight | 3 Pt. Hitch Raise/Lower |
| Knife Weight | 12" |
| Cylinder Size | 4½” x 24" |
| Hydraulic Flow | 8 gpm – 20 gpm |
| Total Cycle Time = | 7.625(Stroke/GPM) |
