ton rated

50 Ton

Rated

2-Way

Split

Safe & Efficient

Log Stop Design

Canadian maple leaf black and white

Made In

Canada

cycle speed

5-20 Second

Cycle Time

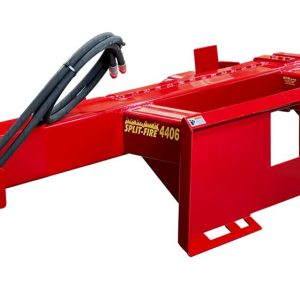

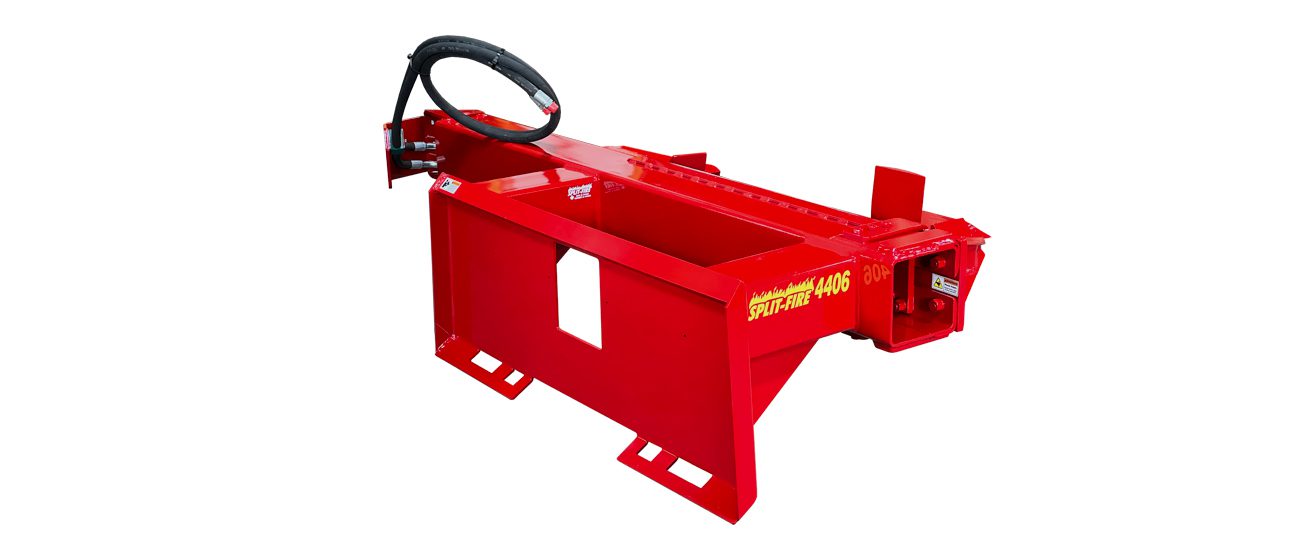

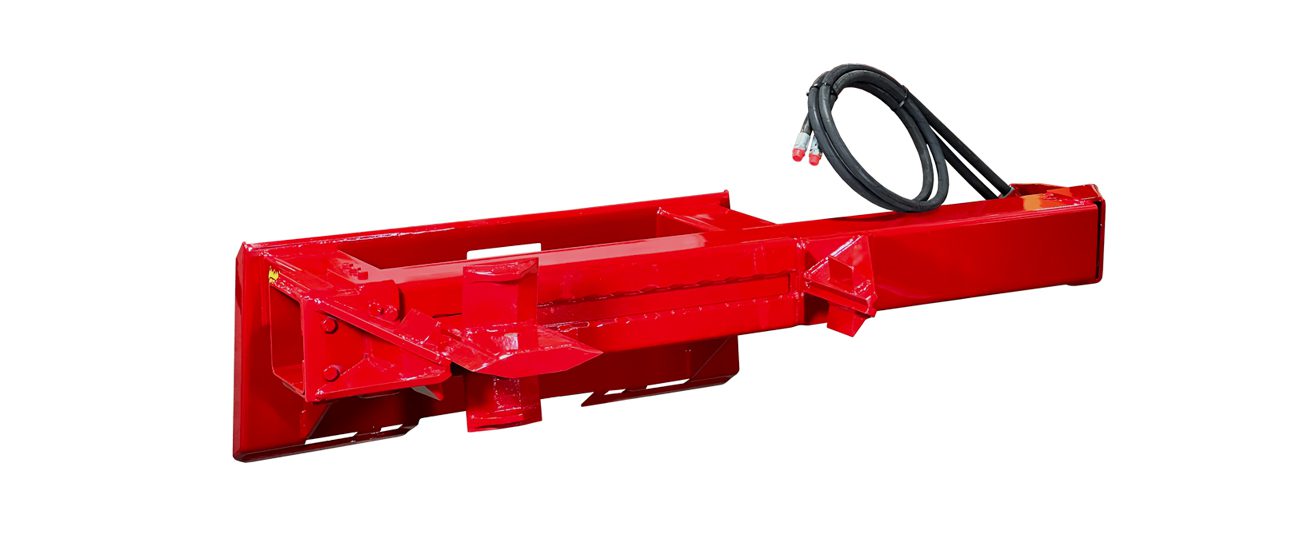

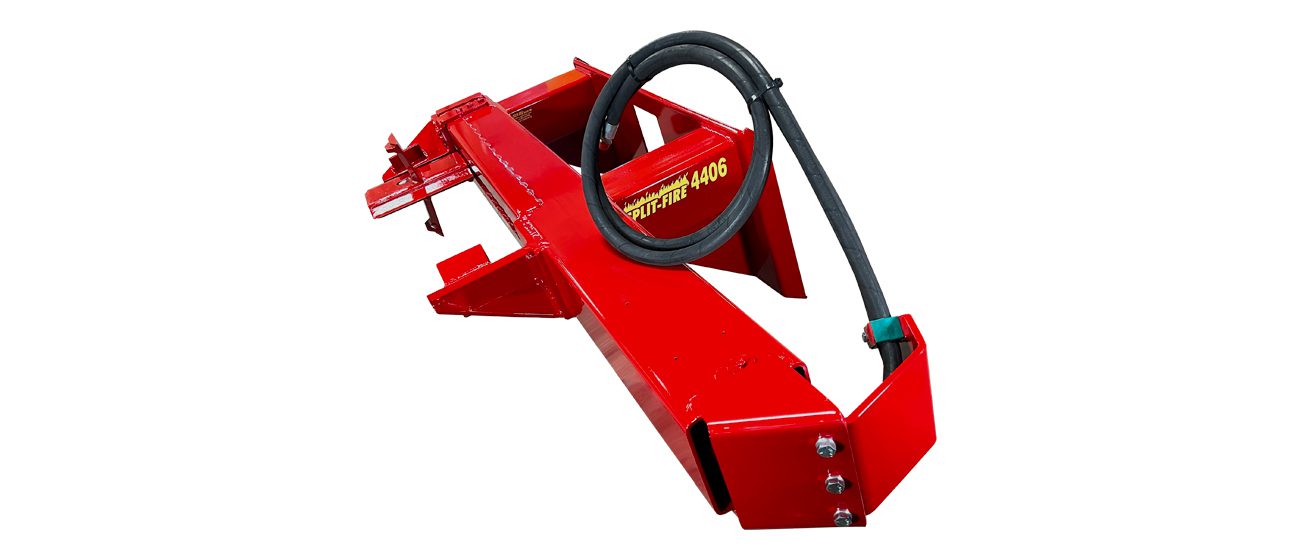

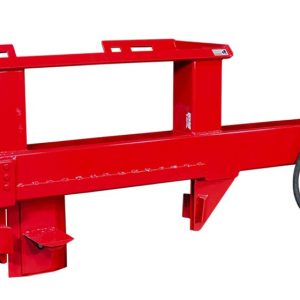

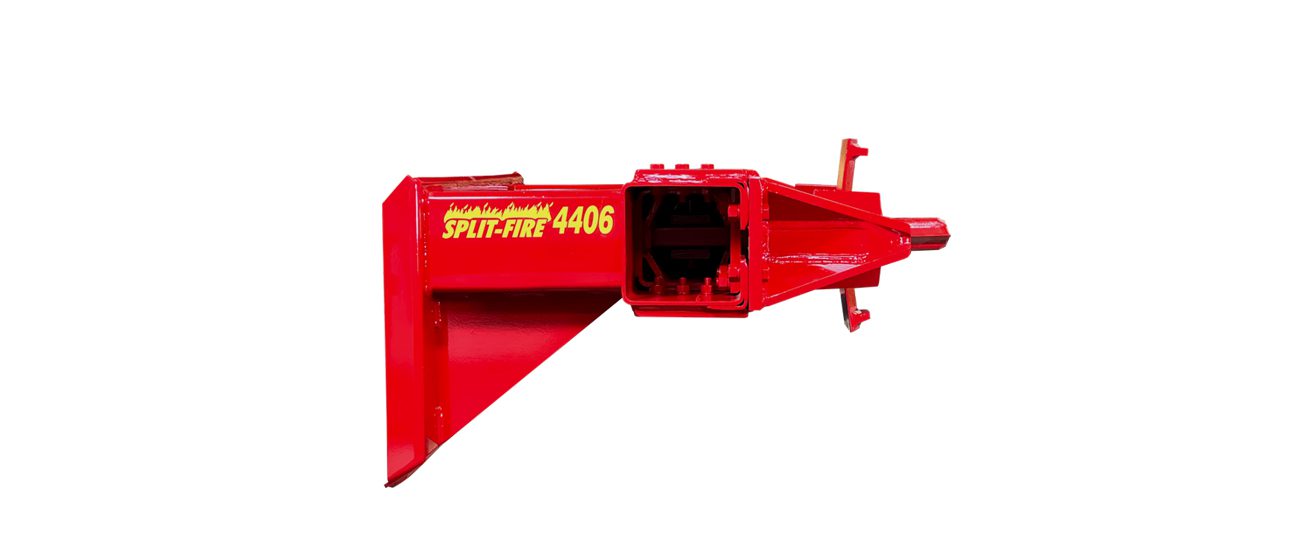

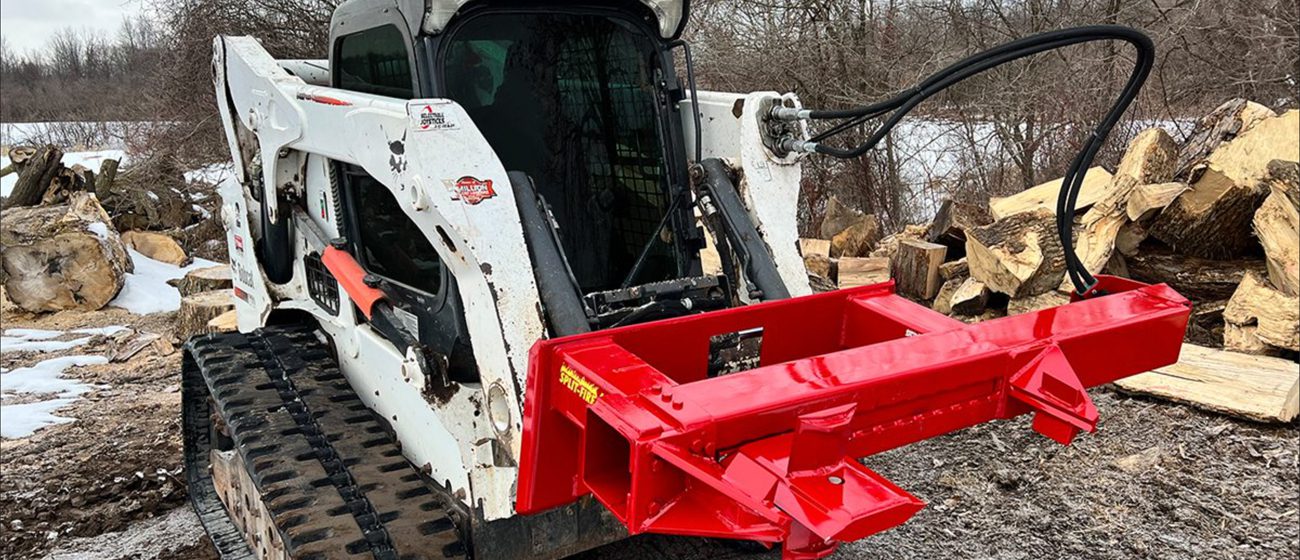

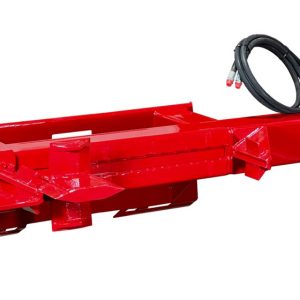

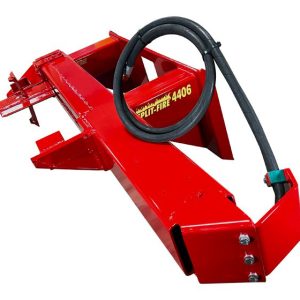

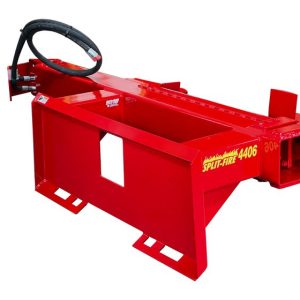

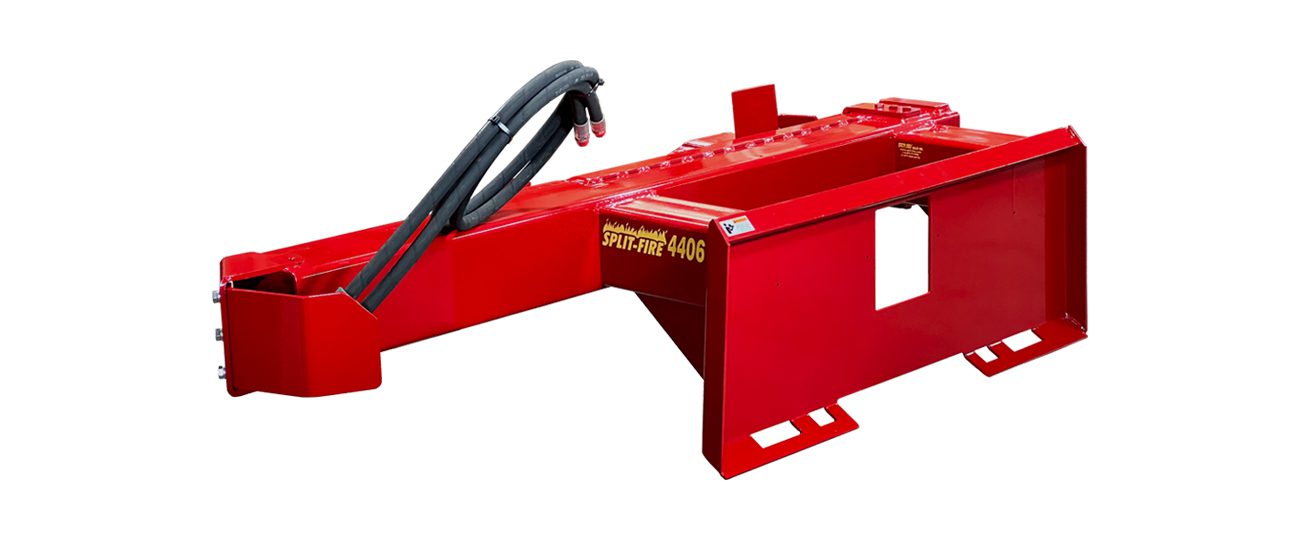

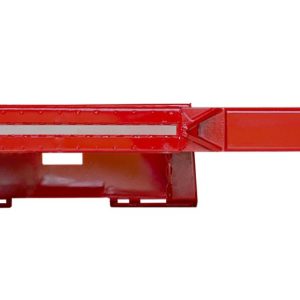

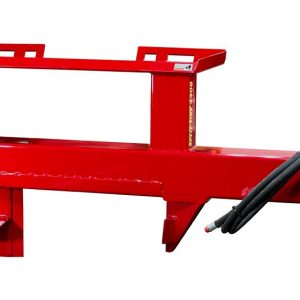

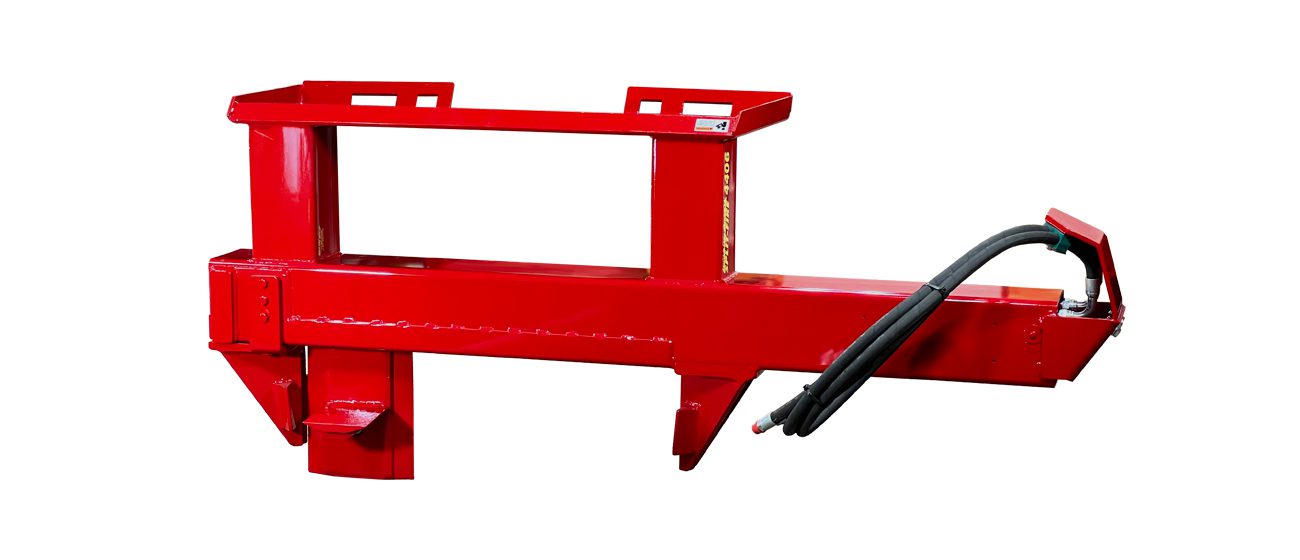

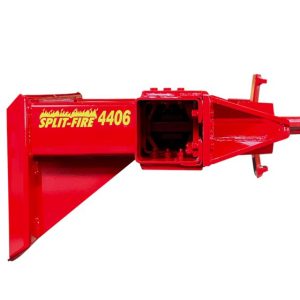

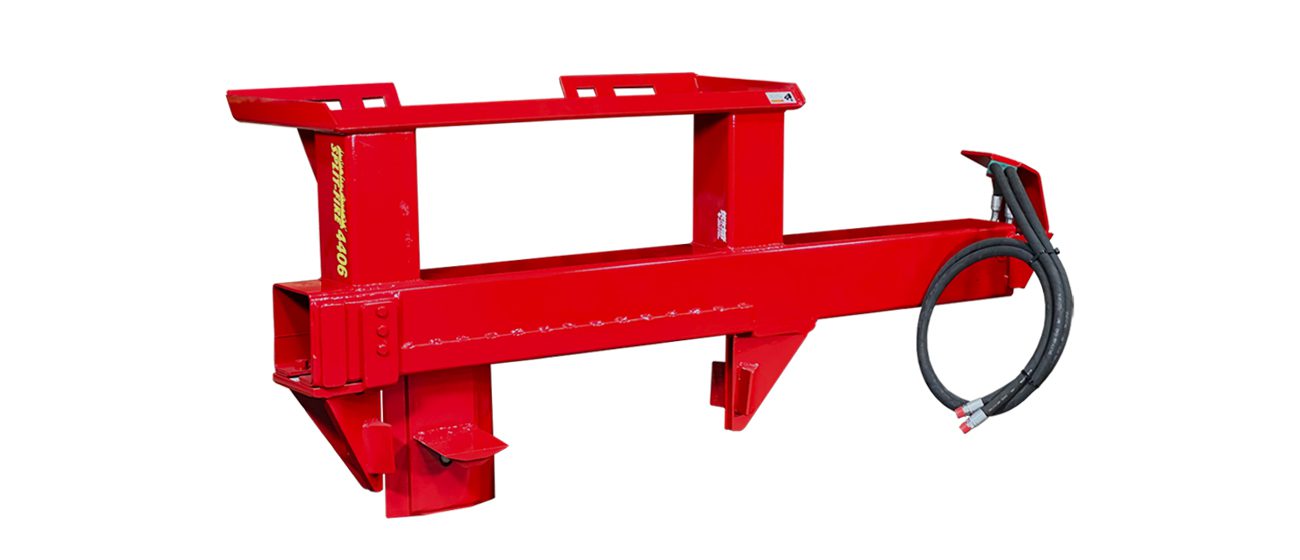

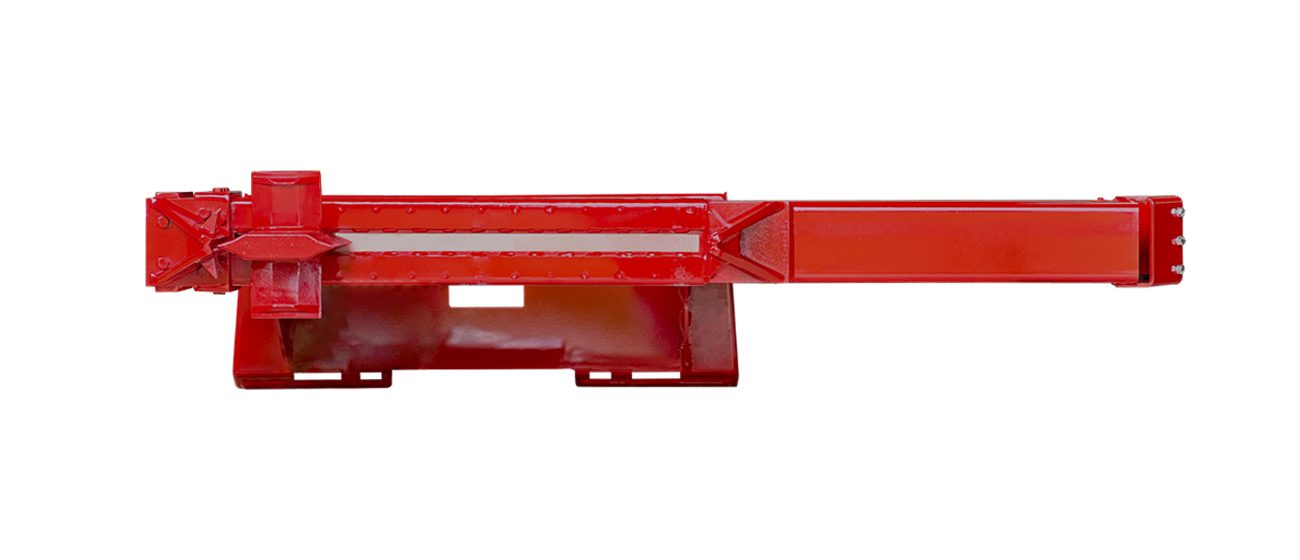

Log Splitter 4406

Like the 4206, the 4406 is designed with the same easy to use ergonomics but comes with both a 2-way and 4-way wedge. It’s not just the addition of the wedges though. It includes a heavy duty 4-way frame, reinforced stops, reinforced slider, along with additional fasteners to make sure it lasts the test of time. With the splitting zone directly in front of the operator, large, twisted rounds can be broken with the 2-way wedge, while straighter grain chunks can be quickly processed with the 4-way wedge.

The 4406 is made for flexibility between gnarly twisted rounds, and straight grain logs. It pushes 32 tons with an average cycle time of 8-13 seconds, depending on the provided flow and pressure. Designed to make your life easier with a 12” standoff, heavy duty plate bumper, and hydraulic hose management. This machine has been optimized for the wood that nobody else wants to touch.

$3,163.00
  • Current build time of 2 weeks.

    STROKE LENGTH •

    Attachment Options

    Options

Pay a deposit of $500.00 per item
Share with friends:

10″ x 10″ steel tube

Frame

30″ – 72″ diameter

Log Capacity

50 tons @ 3500 psi

Tonnage

13.412 x (30/GPM)

Total Cycle Time

Skid Steer | Includes 100” of hose

Power Source

Skid Steer

Pump

Skid Steer

Reservoir

30"

Stroke Length

Optional

Quick Connects

102.5″

Overall Width

46.5”

Overall Length

19.5”

Overall Height

1825 lbs

Weight

N/A

Bed Height

20”

Knife Height

6” x 30″

Cylinder Size

20 GPM – 75 GPM

Hydraulic Flow

2400lbs

Min. Skid Steer Operating Cap
