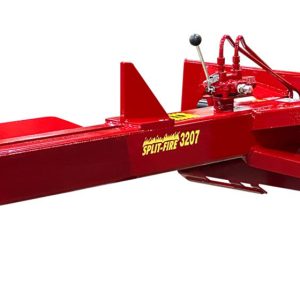

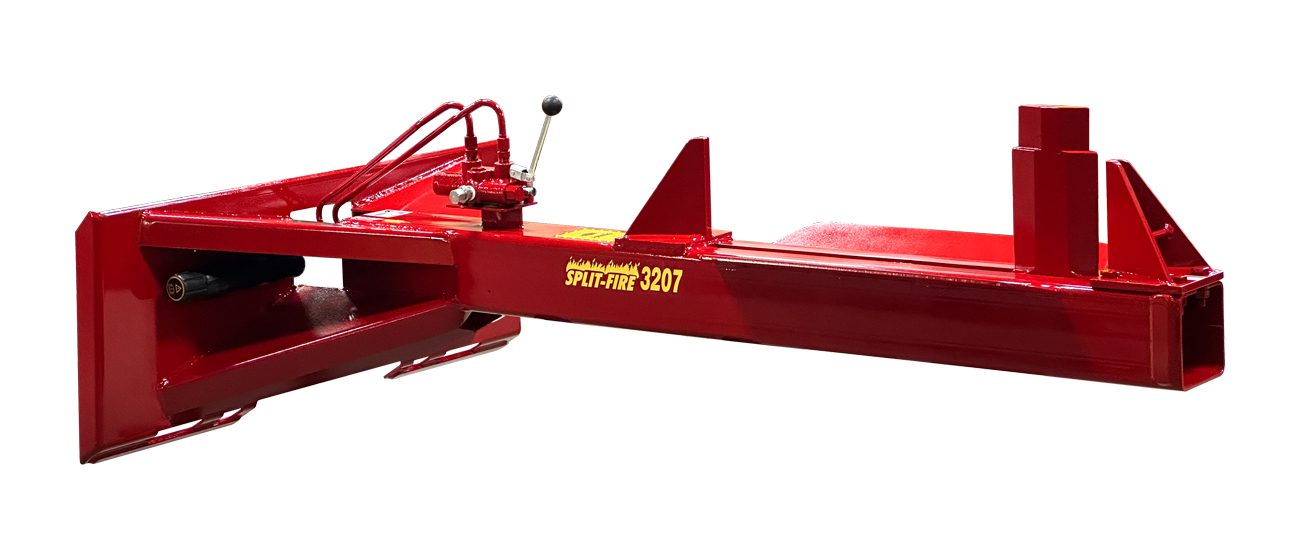

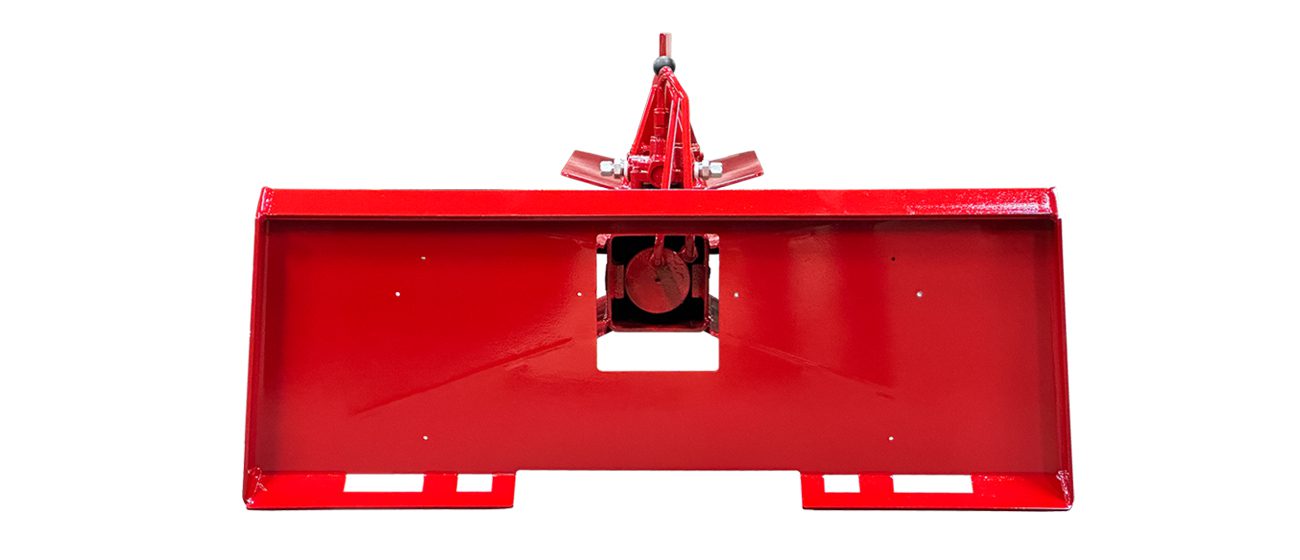

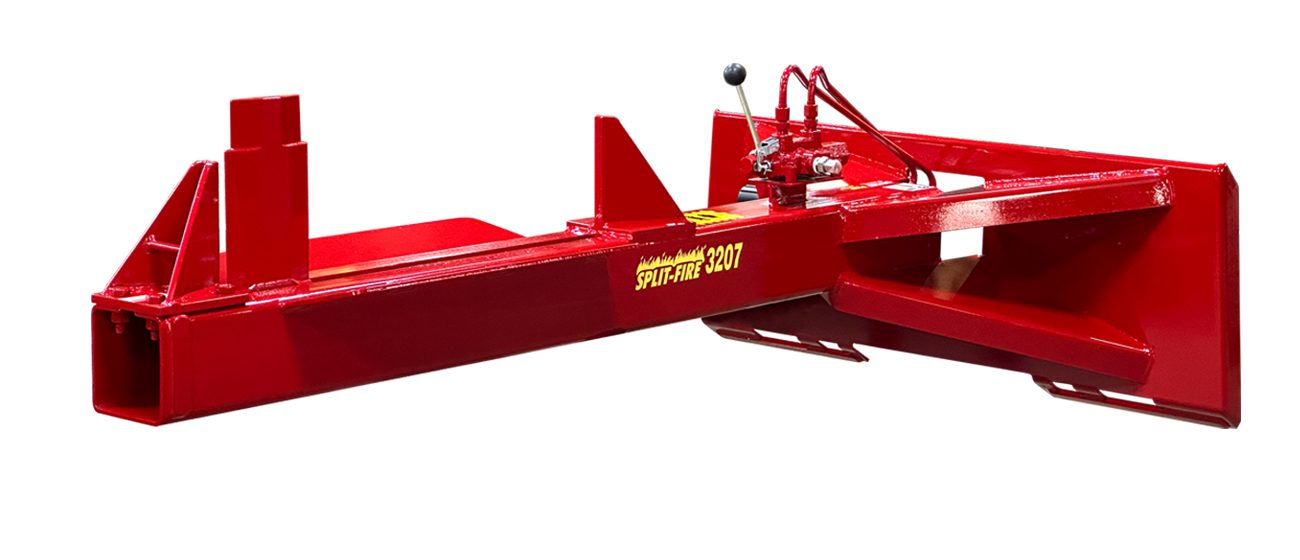

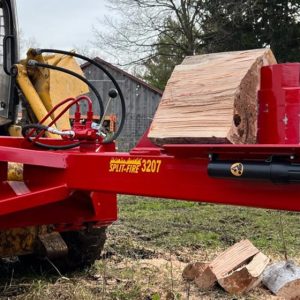

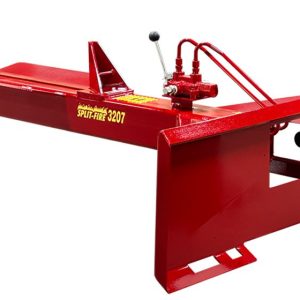

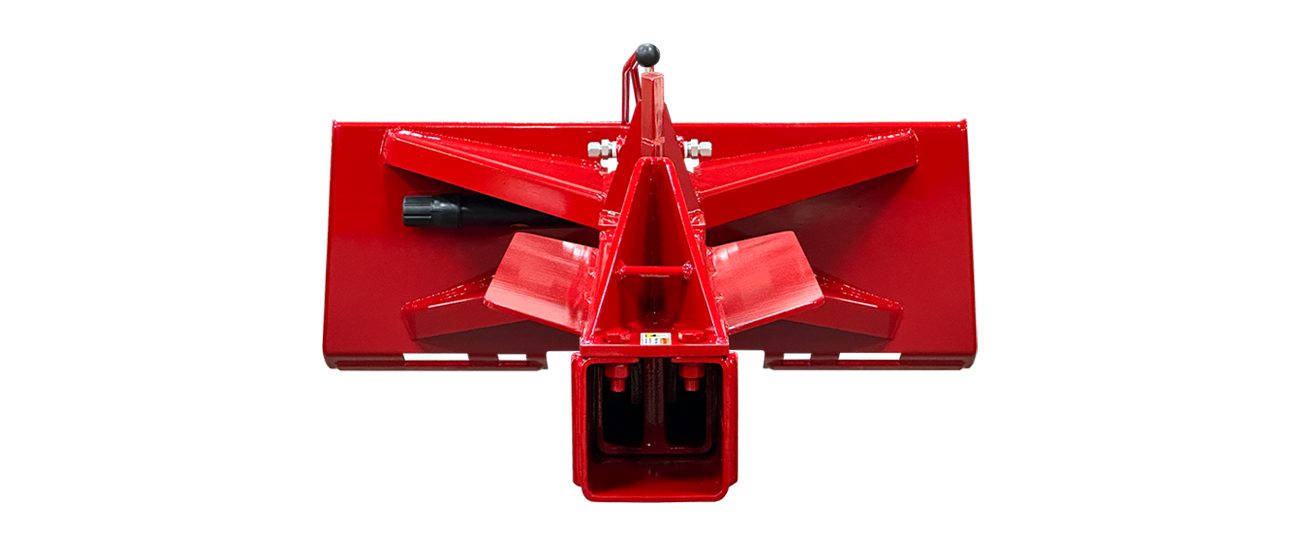

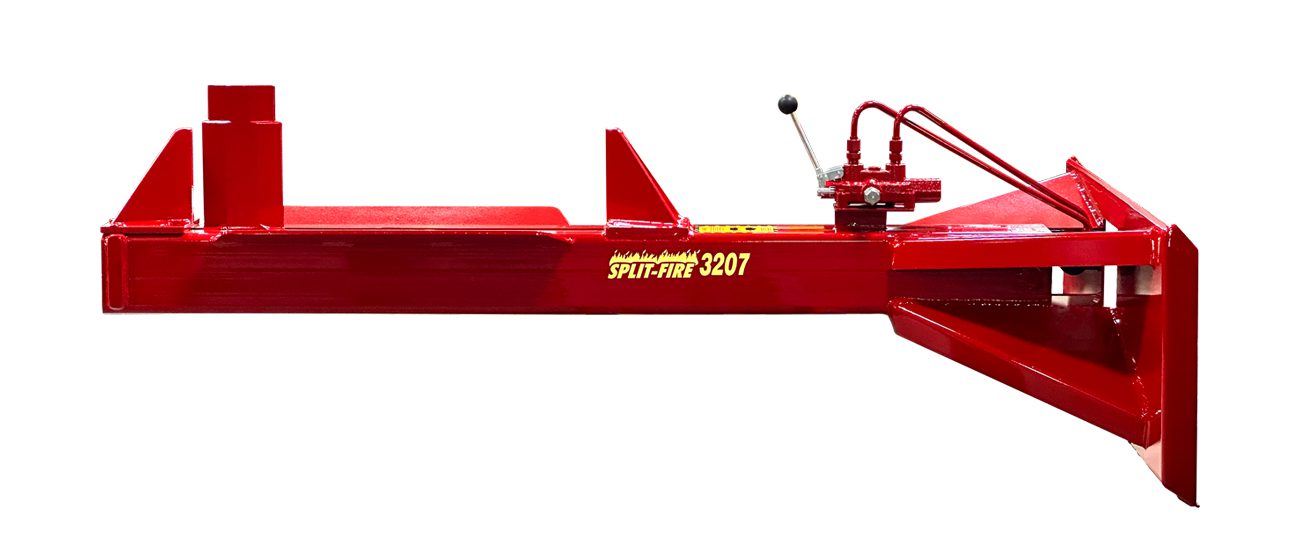

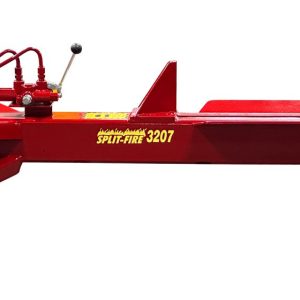

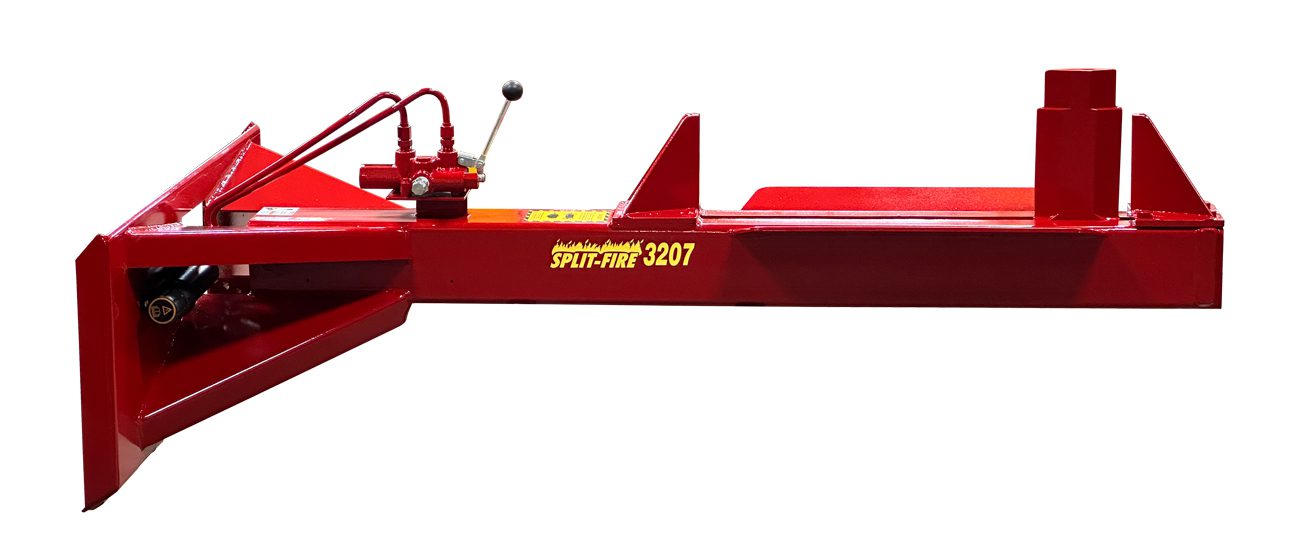

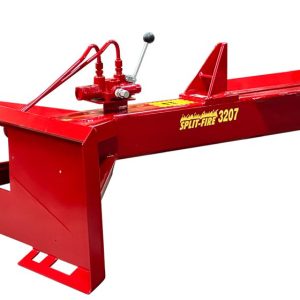

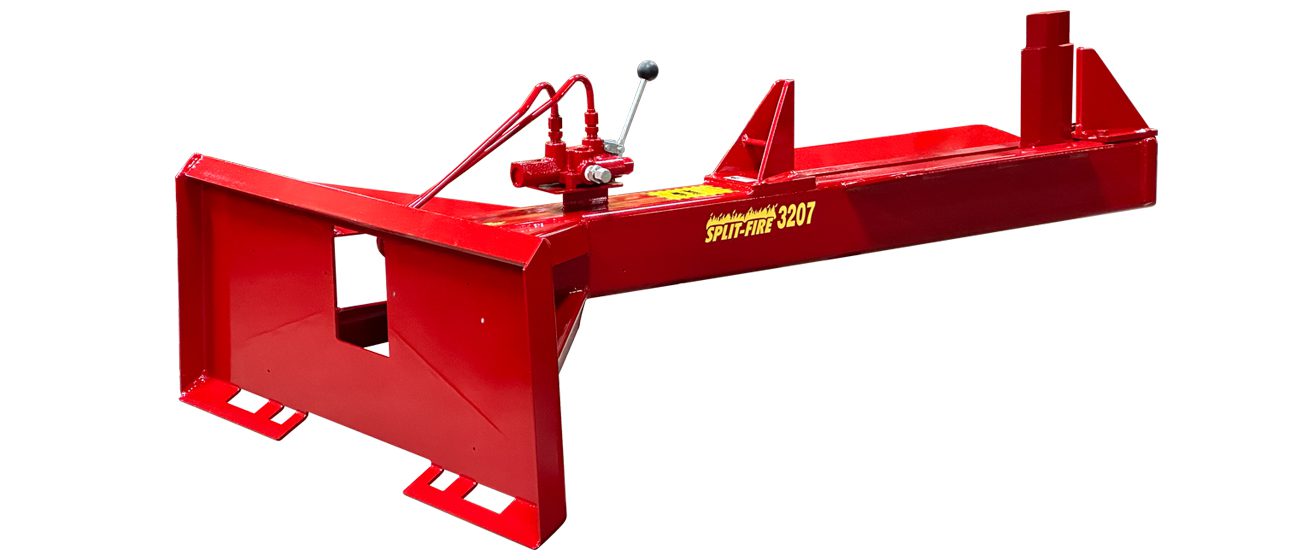

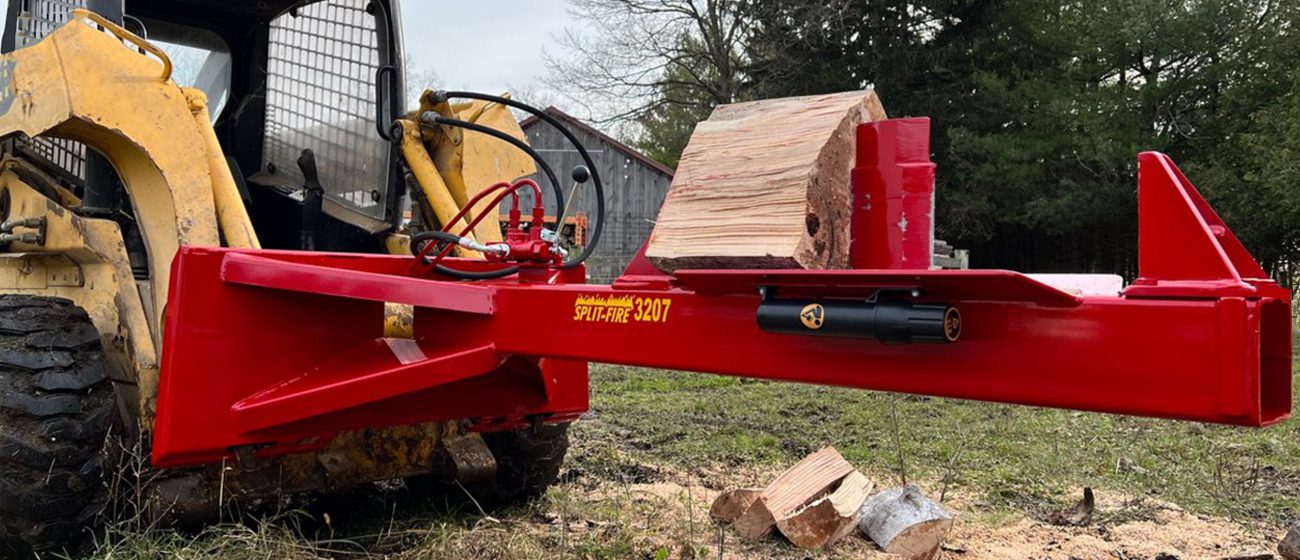

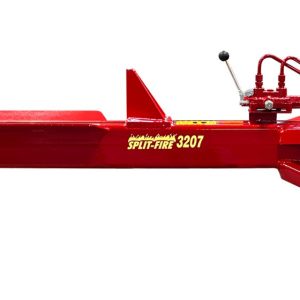

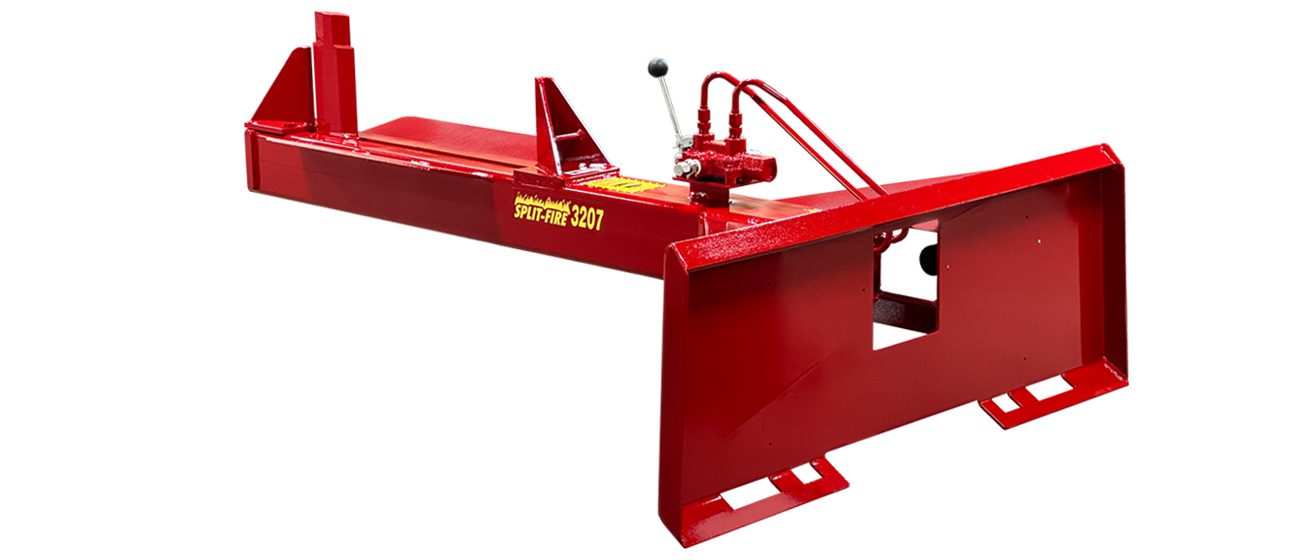

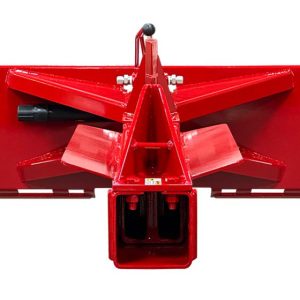

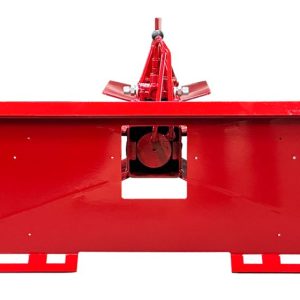

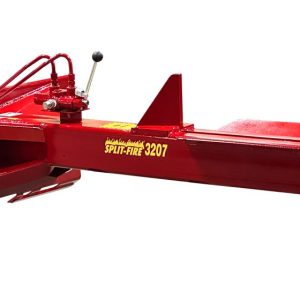

Split-Fire’s 3207 skid-steer log splitter is the perfect machine for a small to medium skidsteer. Skidsteers offer plenty of hydraulic flow and pressure and can typically run at an idle making splitting fast and effortless. The 3207 will push 20 tons at 2900 PSI and is a great machine for the farmer or homesteader splitting an assortment of large and small logs.
In less than a minute this skid steer mount log splitter can be hooked up, hydraulic hoses connected and you’re ready to begin splitting. Since all the fluid and power is being given by the machine, it’s a zero-maintenance wood splitter. Add on some weld-on options to increase productivity. The 3207 is a simple and safe machine that is extremely effective on small to medium sized skid steers.
$2,028.00
| Frame | 6" x 6" steel tube |
|---|---|
| Tonnage | 20 tons @ 2900 psi |
| Cycle Speed | 9 sec. @ 20 GPM | 15 sec. @ 12 GPM | 23 sec. @ 8 GPM |
| Power Source | Skid Steer Attach | Includes 5' of hose |
| Pump | Skid Steer Pump Displacement |
| Reservoir | Skid Steer |
| Stroke Length | 24" |
| Bed Width | 15" |
| Quick Connects | Not included |
| Overall Width | 47" |
| Overall Length | 75½" |
| Overall Height | 18½" |
| Weight | 370 lbs |
| Bed Height | Skid Steer Plates raise / lower |
| Knife Height | 11" |
| Cylinder Size | 3½” x 24" |
| Hydraulic Flow | 4 gpm - 12 gpm |
| Total Cycle Time = | 4.679(Stroke/GPM) |
