20-22 Ton Rated
20-22 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
24″ Stroke
24″ Stroke
9-11 Second Cycle Time
9-11 Second Cycle Time

3206

$1,909.00

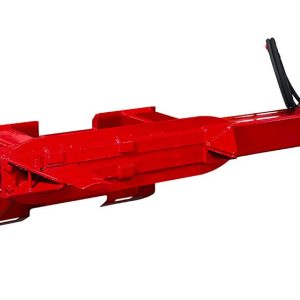

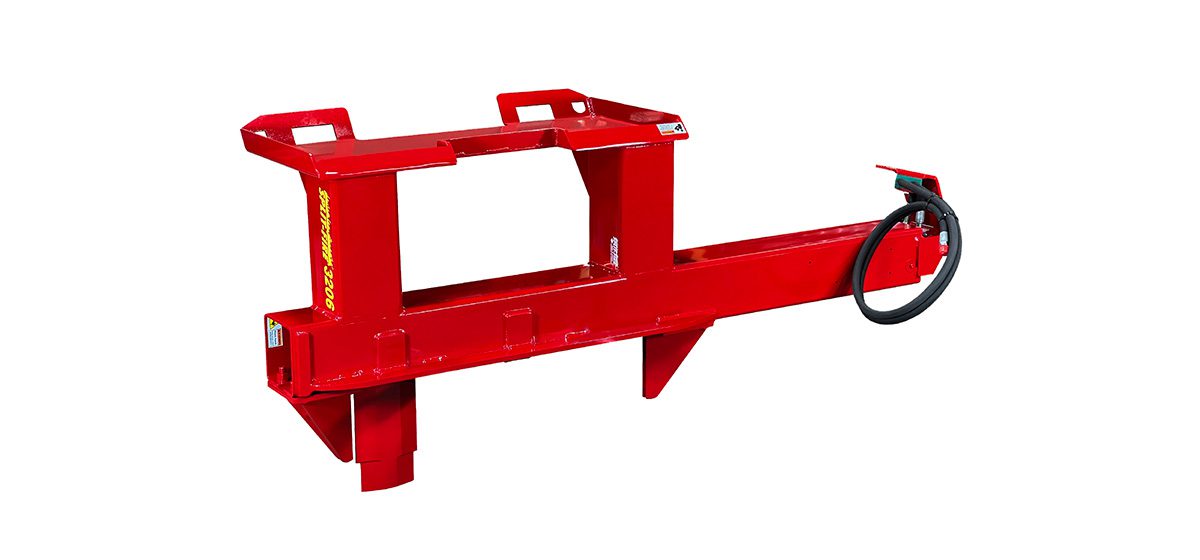

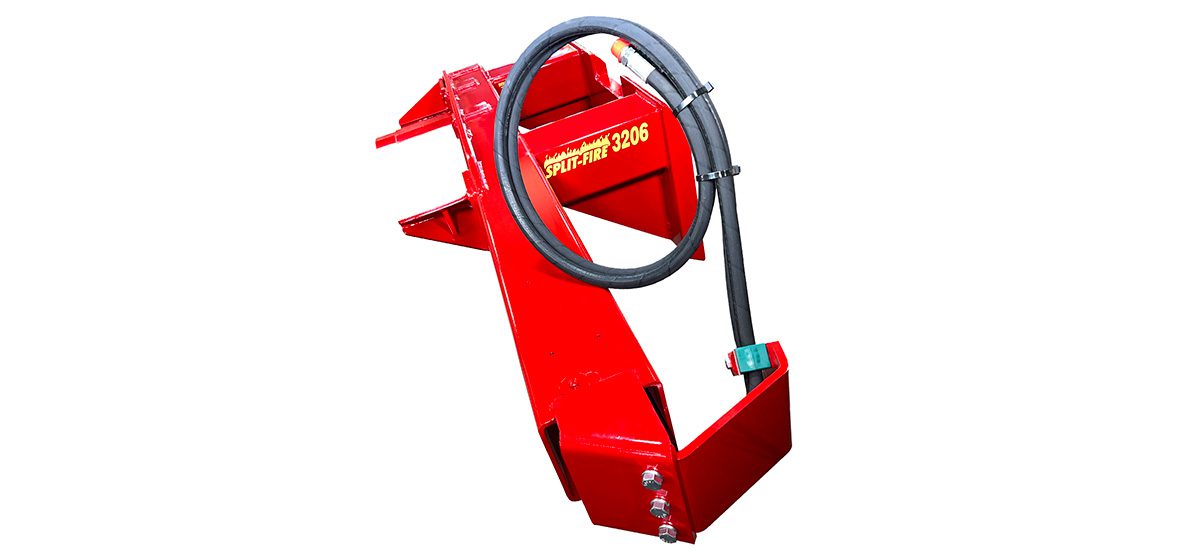

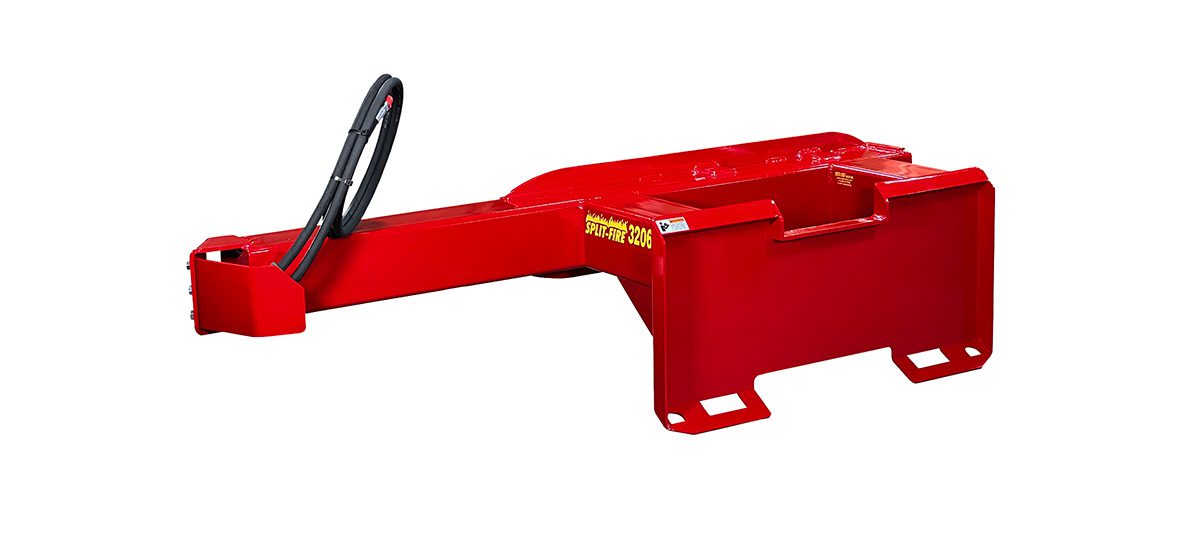

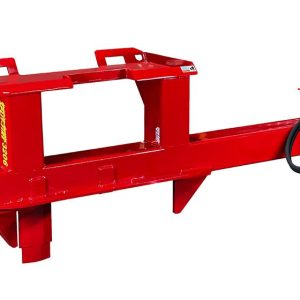

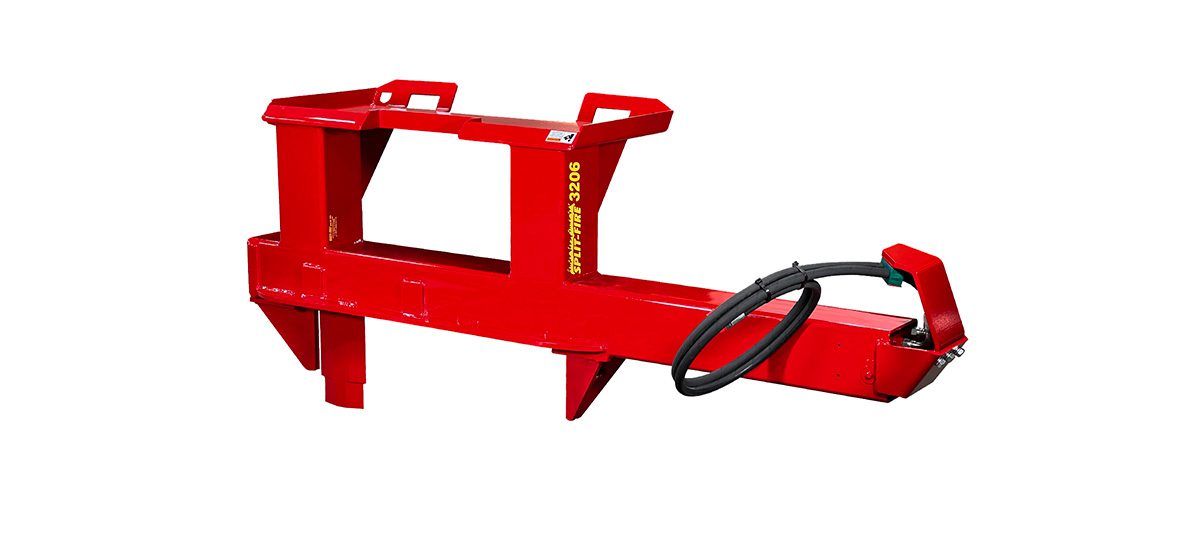

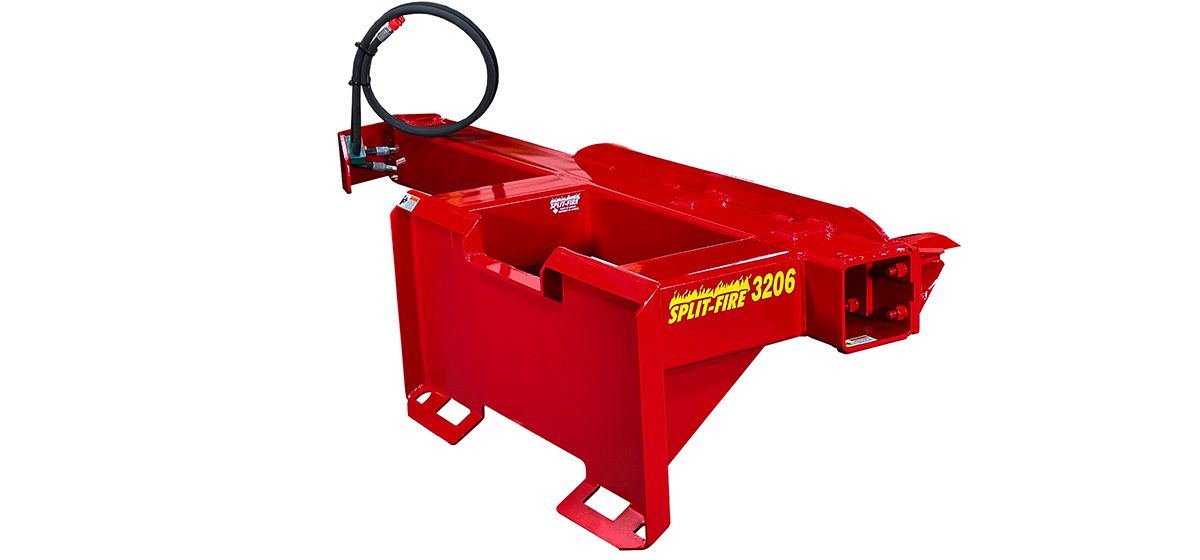

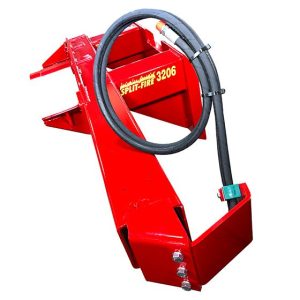

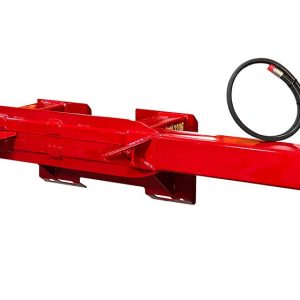

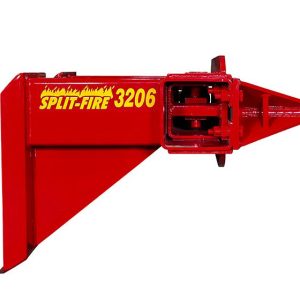

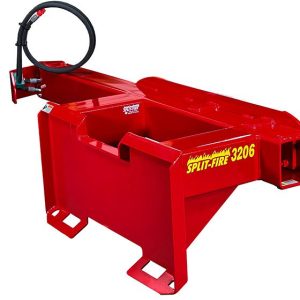

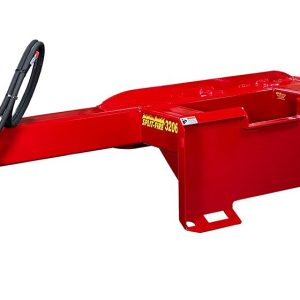

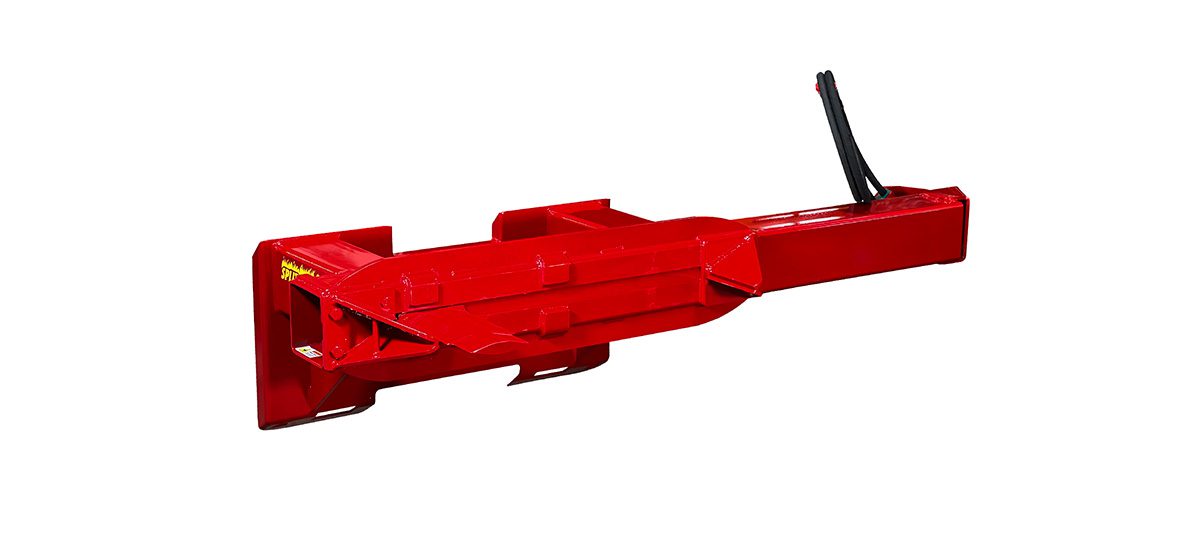

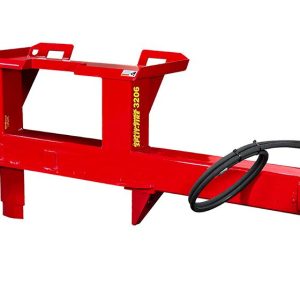

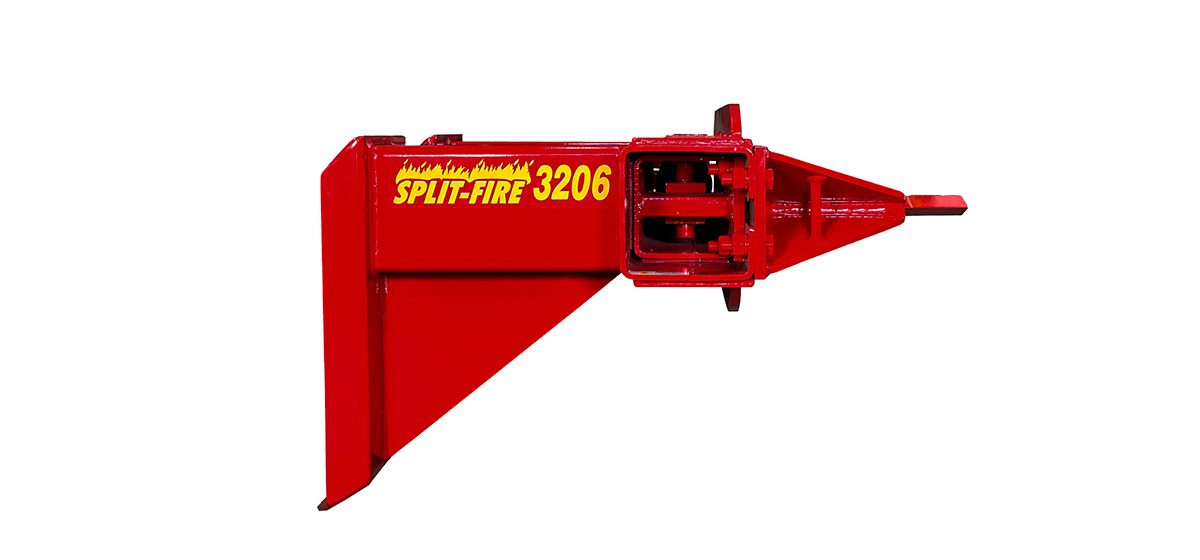

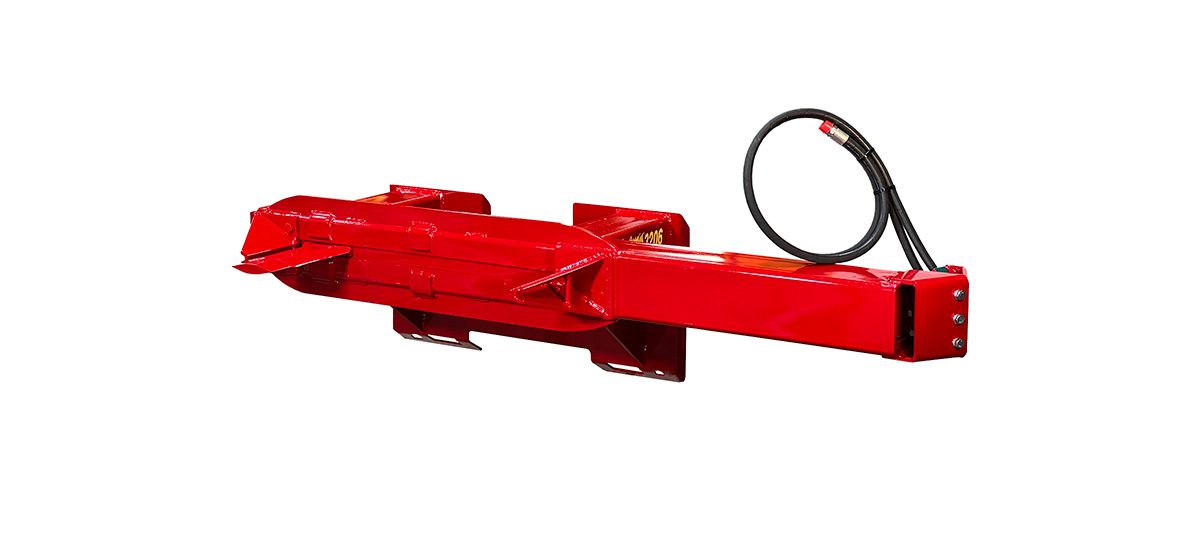

Log Splitter 3206

The perfect machine for a mini skid steer or compact tractor with third function. If you’re an arborist or serious firewood producer consistently splitting +30” rounds, this will easily break them down without breaking your back. The 3206 is designed to mount perpendicular to your machine for great visibility, and to maximize lifting force. Either split the large rounds down to boiler size, or to further process with regular self-contained splitter.

All modern mini skid steers produce good flow and excellent pressure, so this machine will run a cycle time of 8-11 seconds, there and back. It will also produce 20 tons of force, depending on machine pressure. Receiving all flow and pressure from the machine its mounted on, this 3206 is maintenance free utilizing UHMW wear pads on the slider. Turn that large ugly wood that nobody wants to touch, into valuable firewood.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

Lead Time 4-6 Weeks

SEE IT IN ACTION

MACHINE SPECS

Frame
6" x 6" steel tube
Log Capacity
30" - 48" diameter
Tonnage
20 tons @ 2900 psi
Cycle Speed
9 SEC. @ 12GPM | 14 SEC. @ 8 GPM | 28 SEC. @ 4 GPM
Power Source
Skid Steer
Pump
Skid Steer Pump Displacement
Reservoir
Skid Steer

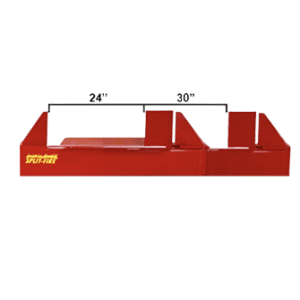

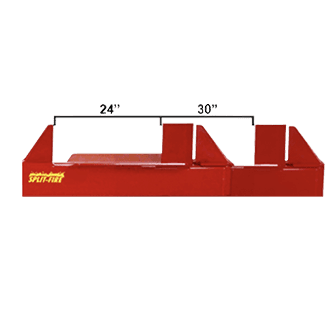

Stroke Length
24"-36"
Quick Connects
Optional
Overall Width
74"
Overall Length
28"
Overall Height
18"
Weight
275 lbs
Bed Height
Skid Steer Plates raise / Lower /Tilt
Knife Height
11"
Cylinder Size
3½” x 24"
Hydraulic Flow
8 GPM - 20 GPM
Total Cycle Time =
4.679(Stroke/GPM)
3206 technical drawing
