1165V

ton rated

50 Ton

Rated

2-Way

Split

Safe & Efficient

Log Stop Design

Canadian maple leaf black and white

Made In

Canada

cycle speed

5-20 Second

Cycle Time

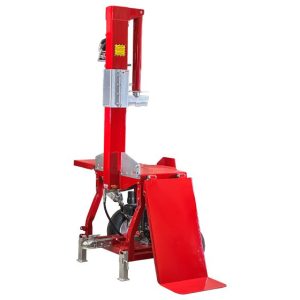

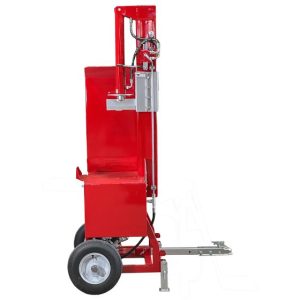

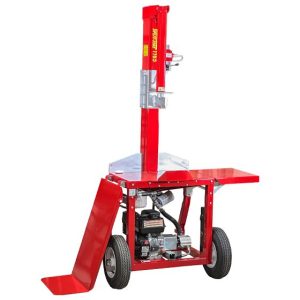

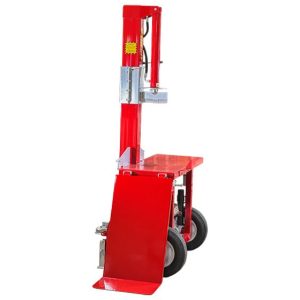

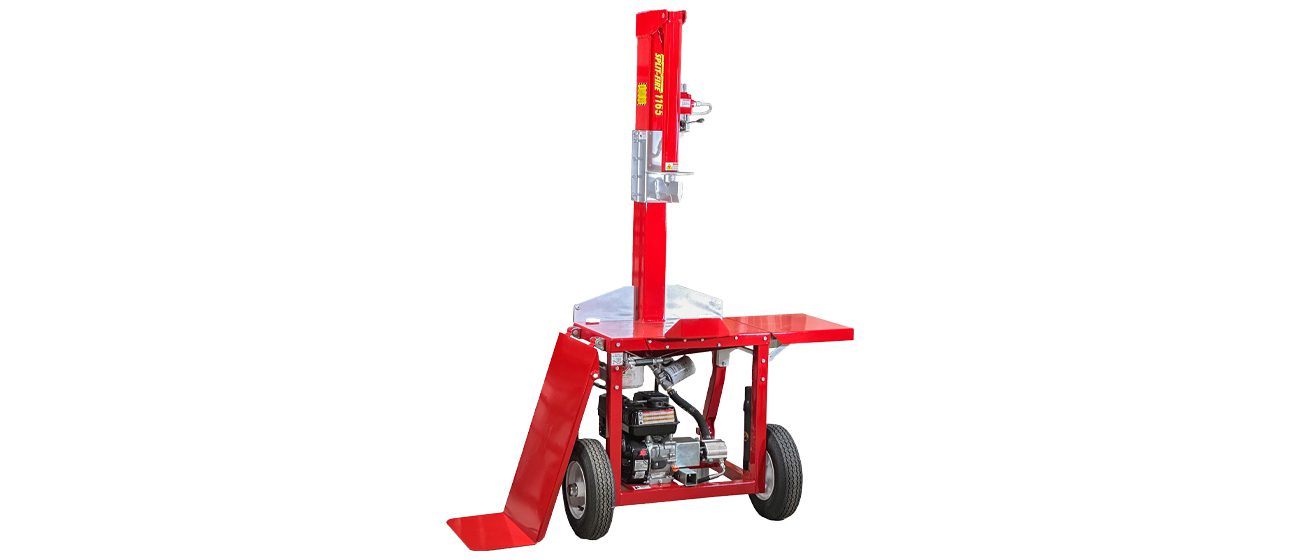

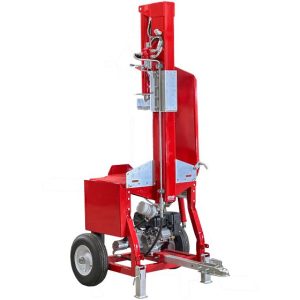

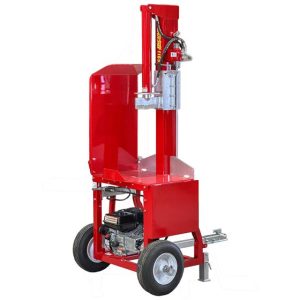

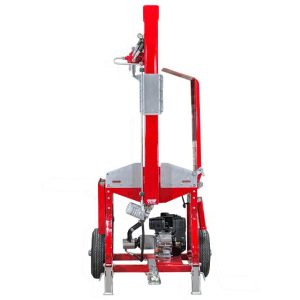

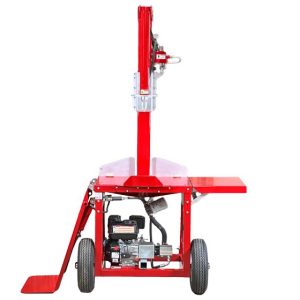

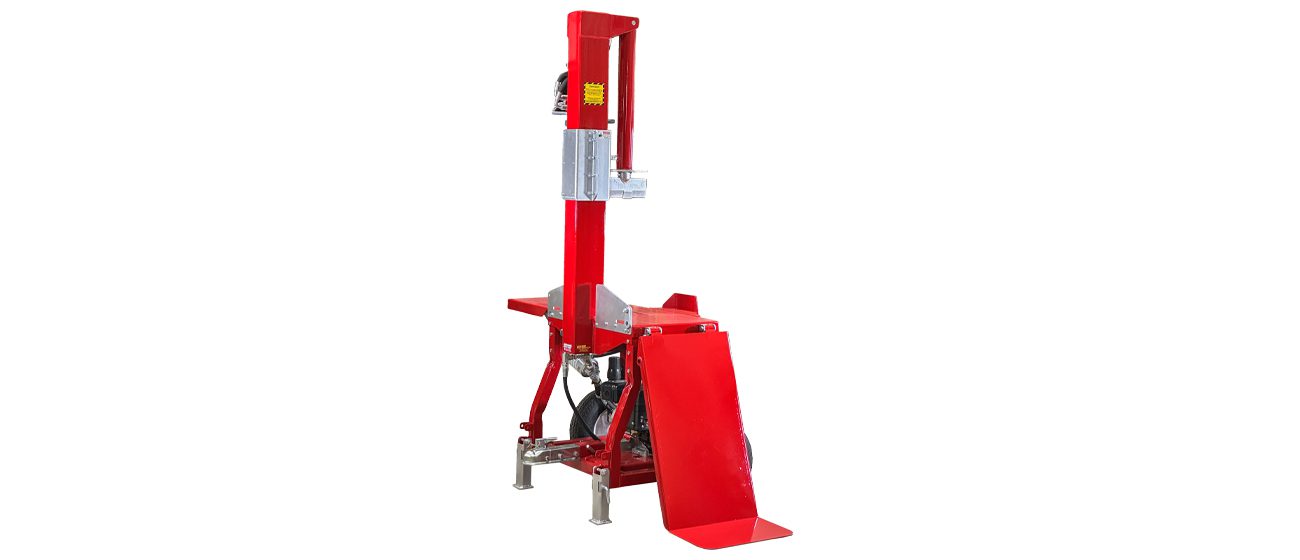

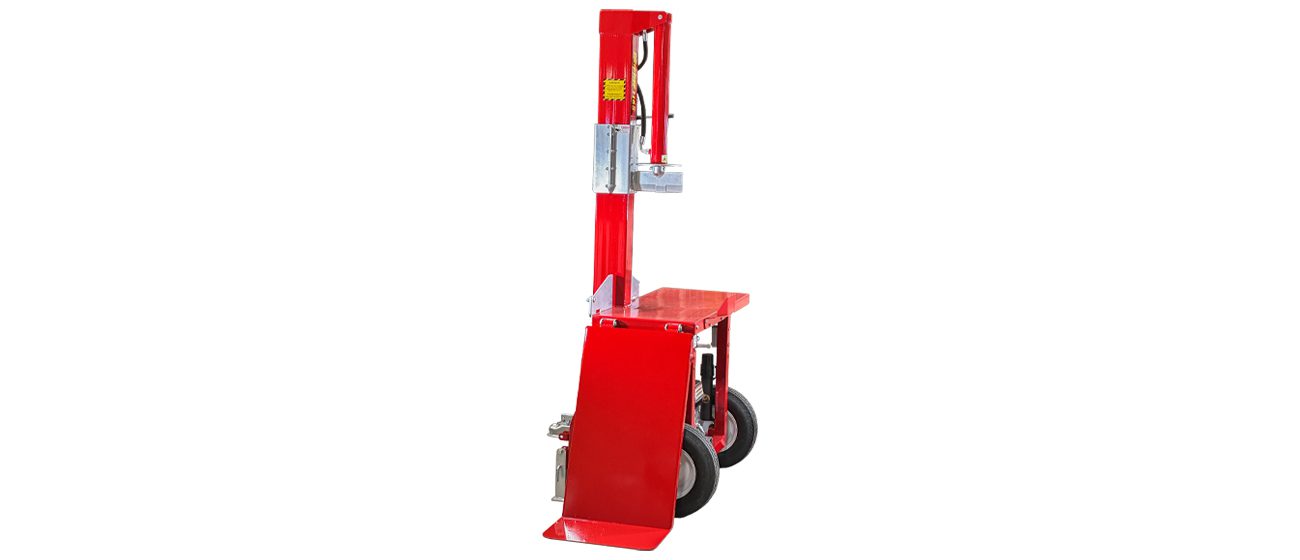

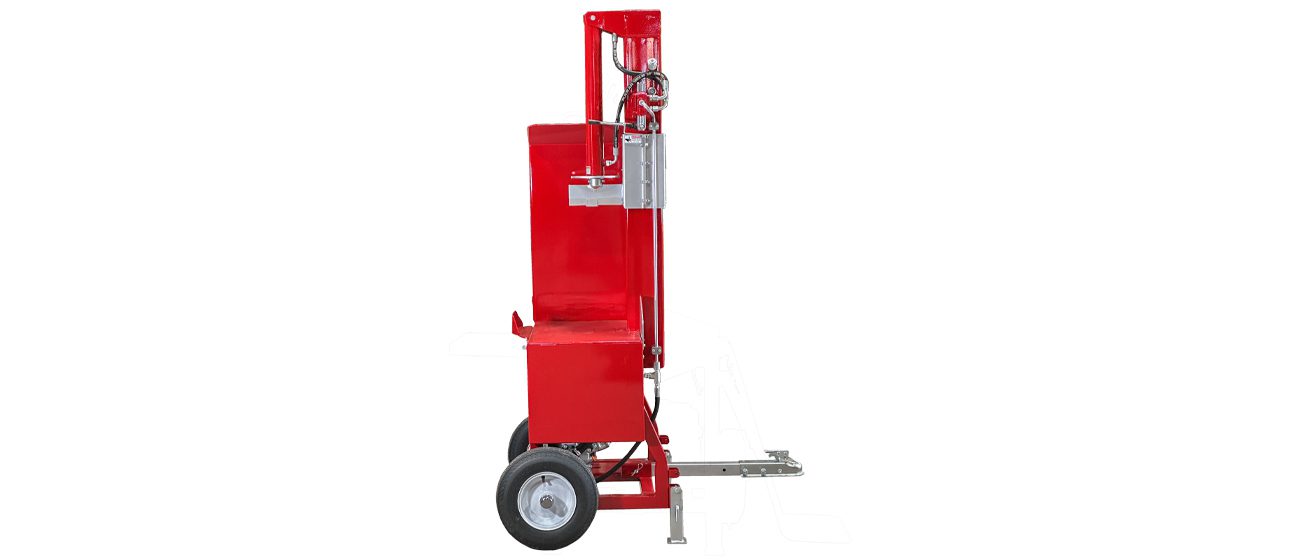

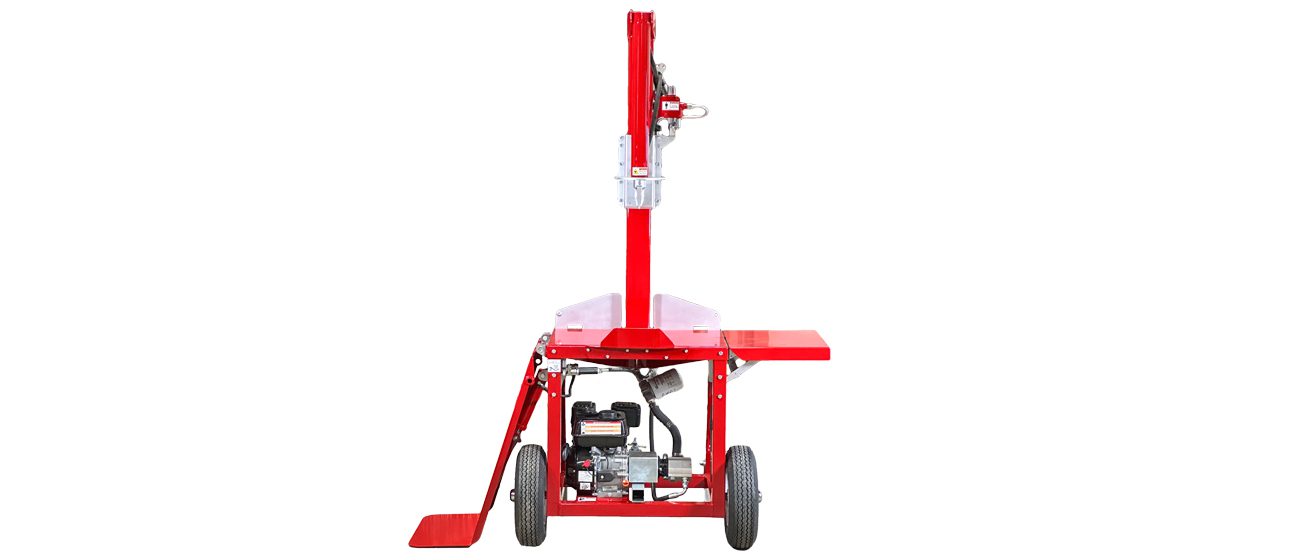

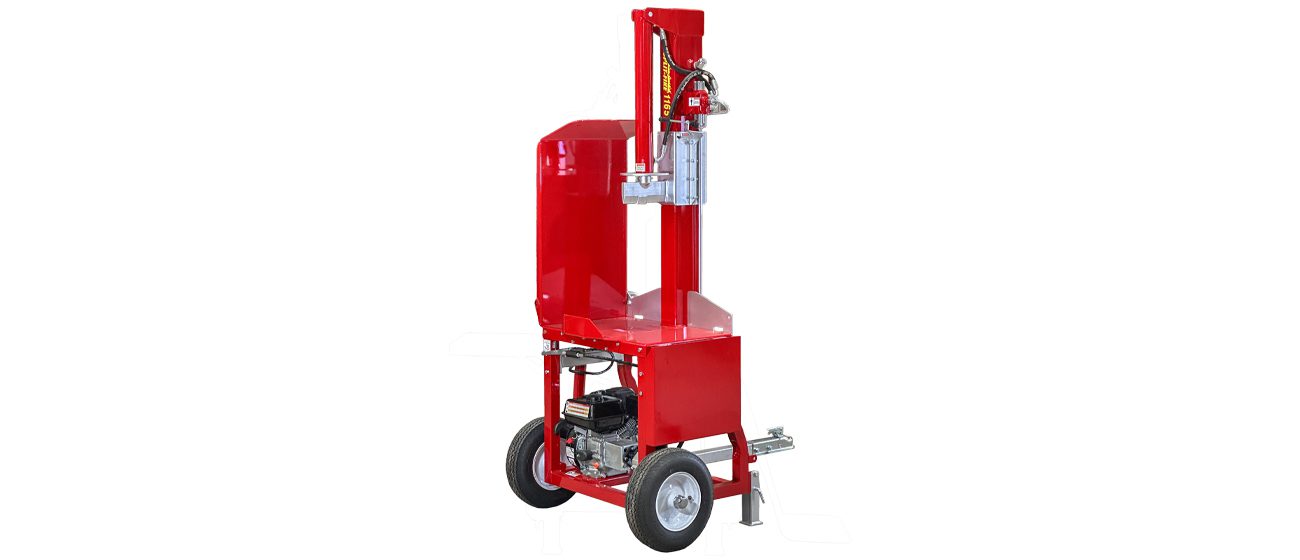

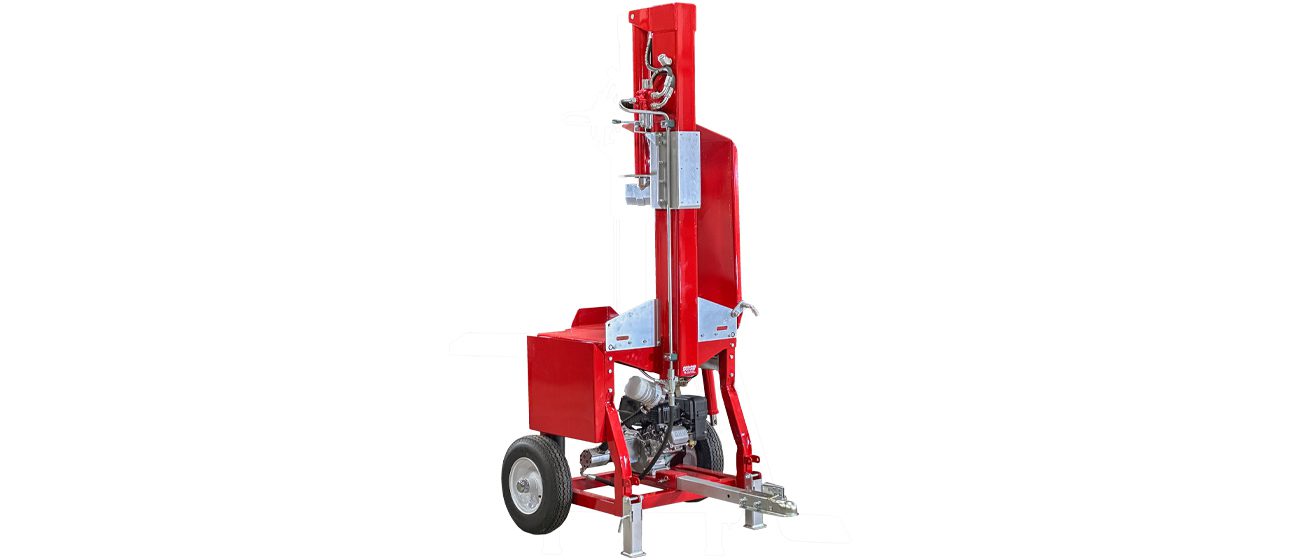

Log Splitter 1165V

Compact. Efficient. Durable. The 1165V is a quality tool that is perfect for feeding your summer campfires and processing your winters worth of firewood. This log splitter is ergonomic, and the quick cycle time and auto return won’t keep you waiting. With 3 power options to choose from, including electric, this log splitter will be a perfect fit for your needs. When you’re done, take advantage of its design, fold it up and slip it away into the corner of your garage or shed.

Available options will allow you to split in a woodlot with a gas powered 1165V or enjoy the indoors on a cold winter day with an electric 1165V log splitter. Other options include a log lifter and log tables. Built with longevity and quality in mind, the 1165V doesn’t require extensive maintenance, and is easy for anybody to operate. You could be splitting logs to firewood size or making kindling utilizing the 1165V high speed cycle time. The 1165V log splitter can be your next upgrade or your first step to becoming self-sufficient.

$2,460.00
  • Current build time: 20 Weeks

    ENGINE *

    LEFT LOG LIFTER OR TABLE

    RIGHT LOG TABLE

    WHEEL OPTIONS

    ADDITIONAL OPTIONS

Pay a deposit of $500.00 per item
Share with friends:

4" x 6" Vertical steel tube

Frame

7.5 tons splitting force

Tonnage

3.5 seconds | 5 Seconds Electric Motor Option

Cycle Speed

Loncin 6.5HP | Honda GX 200 | 1.5HP Electric Motor

Power Source

11 GPM low pressure | 2.7 GPM high pressure

Pump

17 L

Reservoir

20"

Stroke Length

28"

Bed Width

18"

Bed Depth

31.5"

Bed Height

8.75"

Knife Height

2.5 x 20"

Cylinder

15.5" x 4"

Tire Size

40"

Overall Width

84"

Overall Height

50.5" Extended | 36" Collapsed

Overall Length

450 LBS

Weight

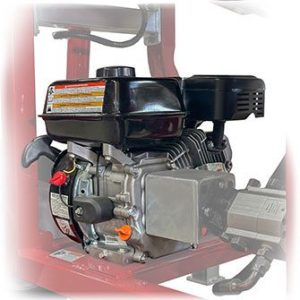

1165v Loncin Engine Option

1165v – Loncin Engine

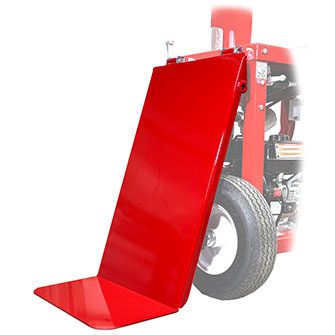

1165v Log lifter Option

1165v – Log Lifter

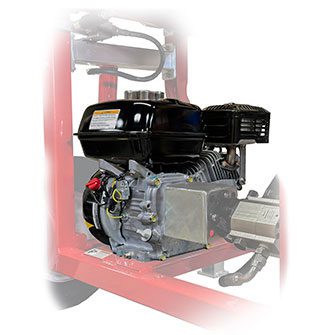

1165v Honda Engine Option

1165v – Honda Engine

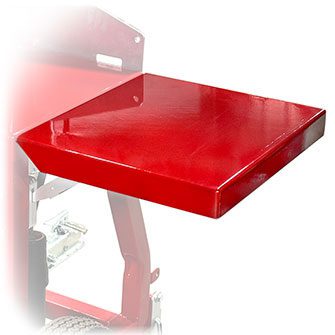

1165v Log Table Option

1165v – Log Table

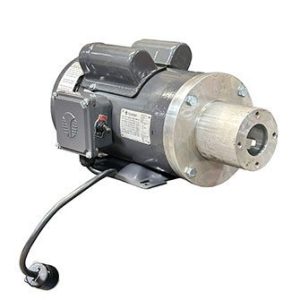

1165v electric motor Option

1165v – Electric Motor

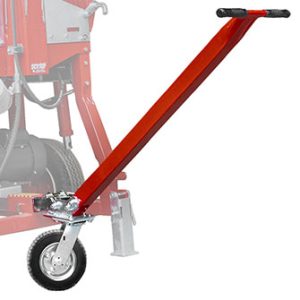

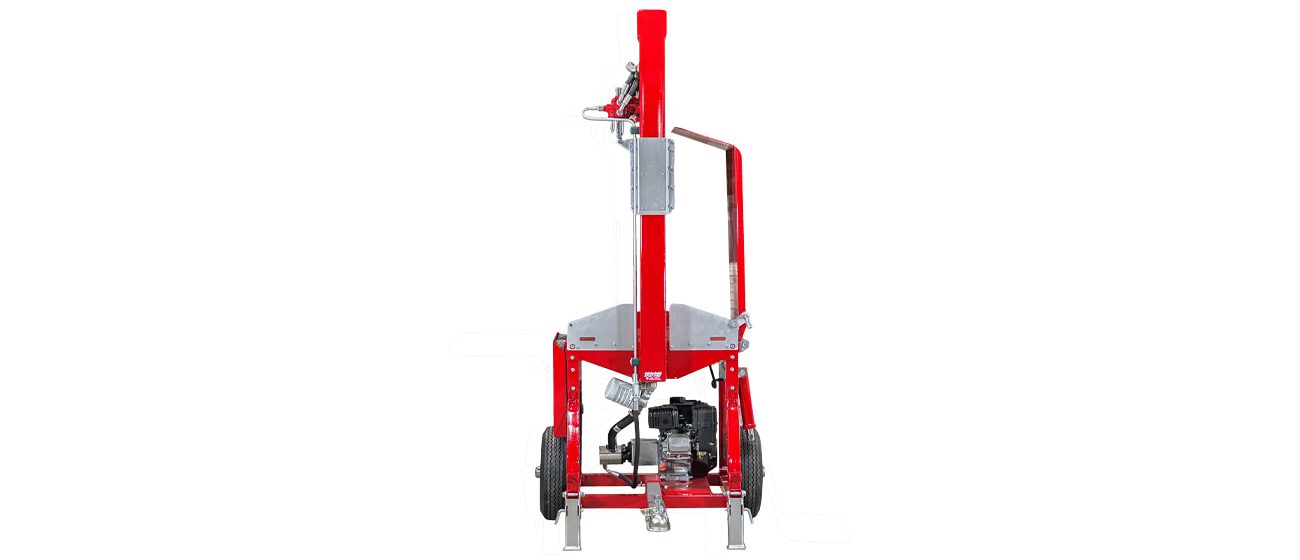

1165v Caster Handle

1165v – Caster Handle

Customer Images

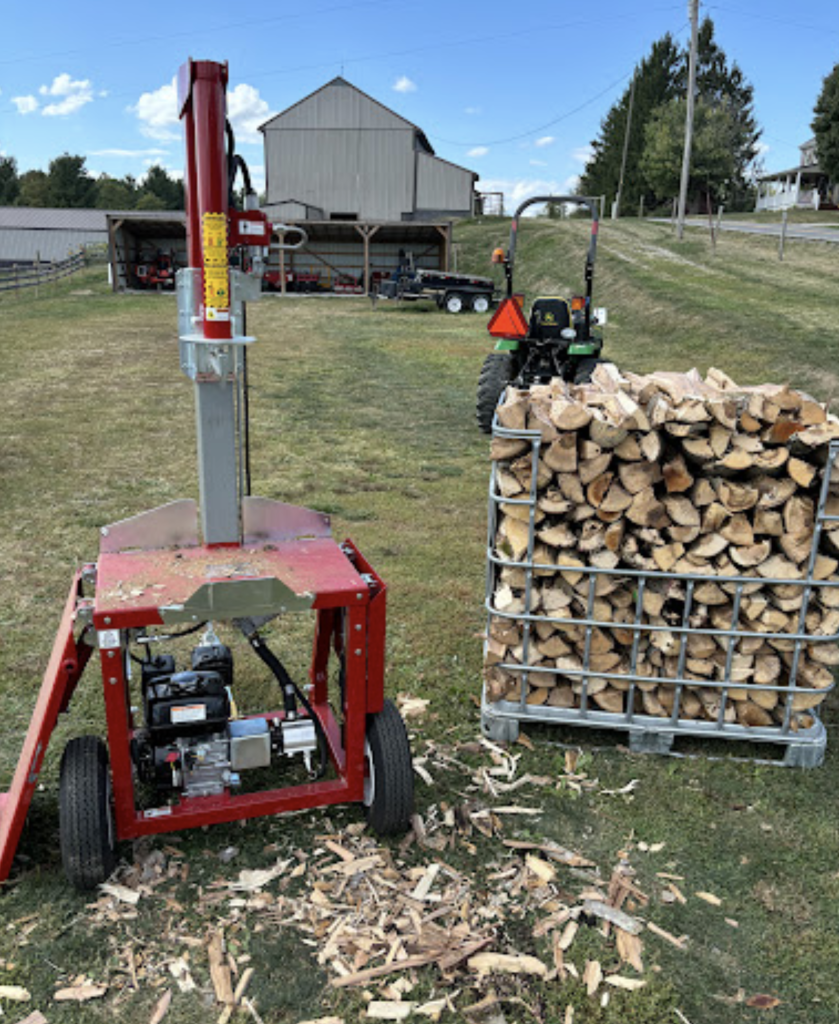

Image #1 from Dave Holmes
Image #2 from Dave Holmes
Image #1 from Jared Carlberg
Image #2 from Jared Carlberg
Image #3 from Jared Carlberg
Image #1 from Lucas Peek
Image #1 from Dwayne Neustaeter
Image #2 from Dwayne Neustaeter
Image #1 from Rollie Holoubek
Image #2 from Rollie Holoubek

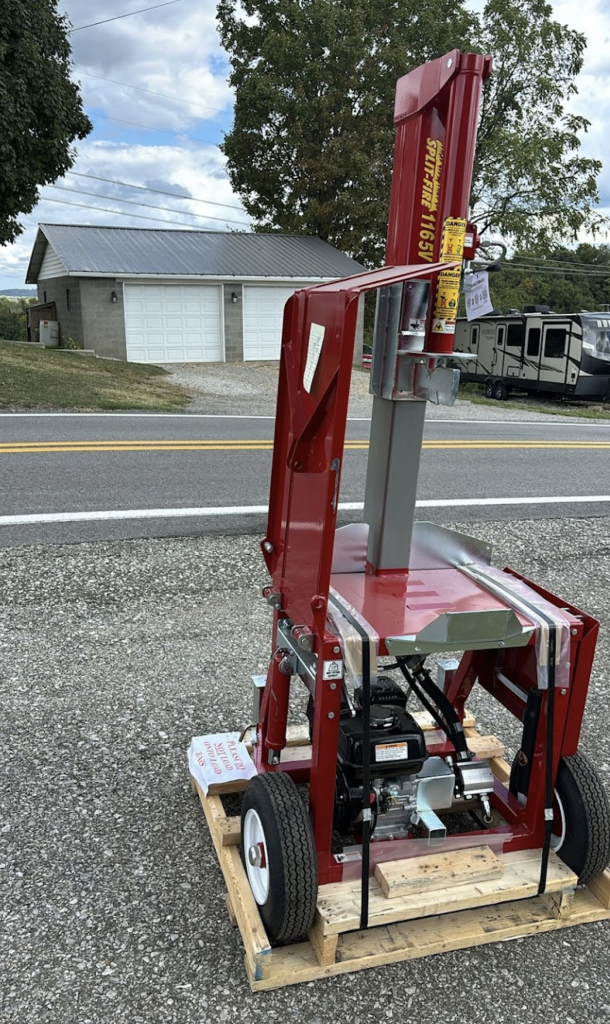

Image #1 from Dave Holmes

Dave Holmes

I’m telling you folks right now ! This Split-Fire 1165V way over past my expectations! Such a wonderful little powerhouse, if you’re thinking about one don’t wait this is the best affordable vertical wood splitter on the market. Thank you Split- Fire I couldn’t be happier 👍 PS 45minutes later!!!

Image #2 from Dave Holmes

Dave Holmes

I’m telling you folks right now ! This Split-Fire 1165V way over past my expectations! Such a wonderful little powerhouse, if you’re thinking about one don’t wait this is the best affordable vertical wood splitter on the market. Thank you Split- Fire I couldn’t be happier 👍 PS 45minutes later!!!

Image #1 from Jared Carlberg

Jared Carlberg

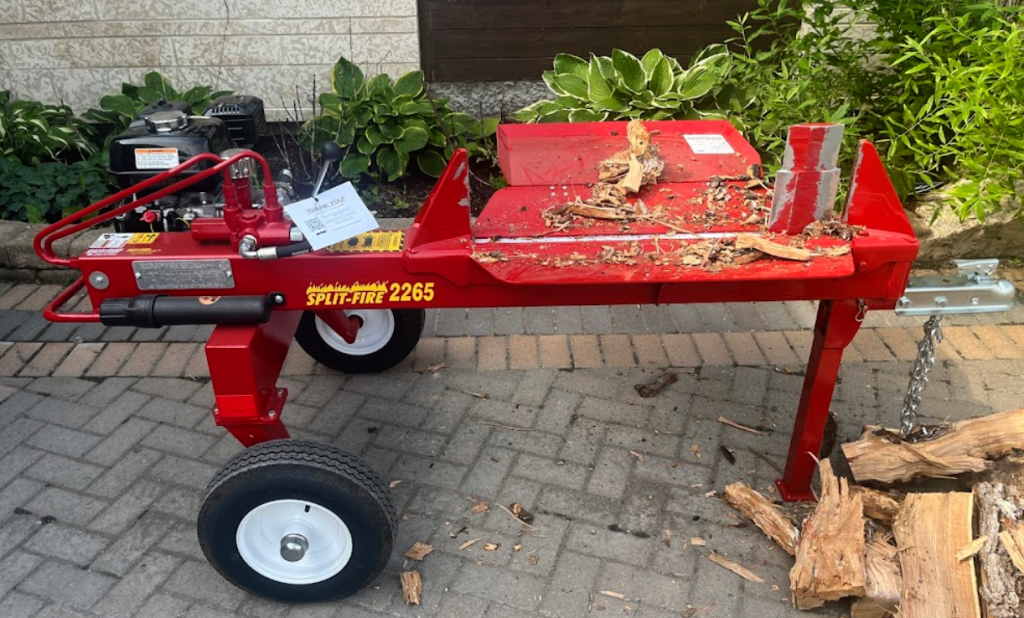

Our new Split-Fire 2265 showed up today and I could not be more delighted with the product. I was expecting to have to do quite a bit of assembly, but it came fully assembled. Okay, I thought, I’ll just run into the city and grab some hydraulic oil and engine oil. After checking, I was pleased to learn the machine was fully ready go to – just add gas!! I gave it a warm welcome with a tank full of four-stroke Aspen fuel 😉. Tested the machine out and am beyond ecstatic with how it works. Amazing torque even at low RPMs which keeps noise levels down; fast cycle time; generous log table to minimize handling; a real pleasure to operate! It turns out buying Canadian-made pays off. So incredibly happy that I did not go with a big-box option. Thank you for this wonderful product. I often say “Old sayings become old for a reason!” Turns out “You get what you pay for!” Included a few pictures; this is not where we usually split! I was considering an electric splitter to keep the noise down in our semi-residential area, but have no concerns whatsoever about our splitter - the Honda engine is nice and quiet, makes way less noise than our lawnmower or pressure washer.

Image #2 from Jared Carlberg

Jared Carlberg

Our new Split-Fire 2265 showed up today and I could not be more delighted with the product. I was expecting to have to do quite a bit of assembly, but it came fully assembled. Okay, I thought, I’ll just run into the city and grab some hydraulic oil and engine oil. After checking, I was pleased to learn the machine was fully ready go to – just add gas!! I gave it a warm welcome with a tank full of four-stroke Aspen fuel 😉. Tested the machine out and am beyond ecstatic with how it works. Amazing torque even at low RPMs which keeps noise levels down; fast cycle time; generous log table to minimize handling; a real pleasure to operate! It turns out buying Canadian-made pays off. So incredibly happy that I did not go with a big-box option. Thank you for this wonderful product. I often say “Old sayings become old for a reason!” Turns out “You get what you pay for!” Included a few pictures; this is not where we usually split! I was considering an electric splitter to keep the noise down in our semi-residential area, but have no concerns whatsoever about our splitter - the Honda engine is nice and quiet, makes way less noise than our lawnmower or pressure washer.

Image #3 from Jared Carlberg

Jared Carlberg

Our new Split-Fire 2265 showed up today and I could not be more delighted with the product. I was expecting to have to do quite a bit of assembly, but it came fully assembled. Okay, I thought, I’ll just run into the city and grab some hydraulic oil and engine oil. After checking, I was pleased to learn the machine was fully ready go to – just add gas!! I gave it a warm welcome with a tank full of four-stroke Aspen fuel 😉. Tested the machine out and am beyond ecstatic with how it works. Amazing torque even at low RPMs which keeps noise levels down; fast cycle time; generous log table to minimize handling; a real pleasure to operate! It turns out buying Canadian-made pays off. So incredibly happy that I did not go with a big-box option. Thank you for this wonderful product. I often say “Old sayings become old for a reason!” Turns out “You get what you pay for!” Included a few pictures; this is not where we usually split! I was considering an electric splitter to keep the noise down in our semi-residential area, but have no concerns whatsoever about our splitter - the Honda engine is nice and quiet, makes way less noise than our lawnmower or pressure washer.

Image #1 from Lucas Peek

Lucas Peek

The 2265 is absolutely awesome! So much faster than my old splitter. It arrives in perfect condition, I fired it up and went straight to work. Great company to deal with!

Image #1 from Dwayne Neustaeter

Dwayne Neustaeter

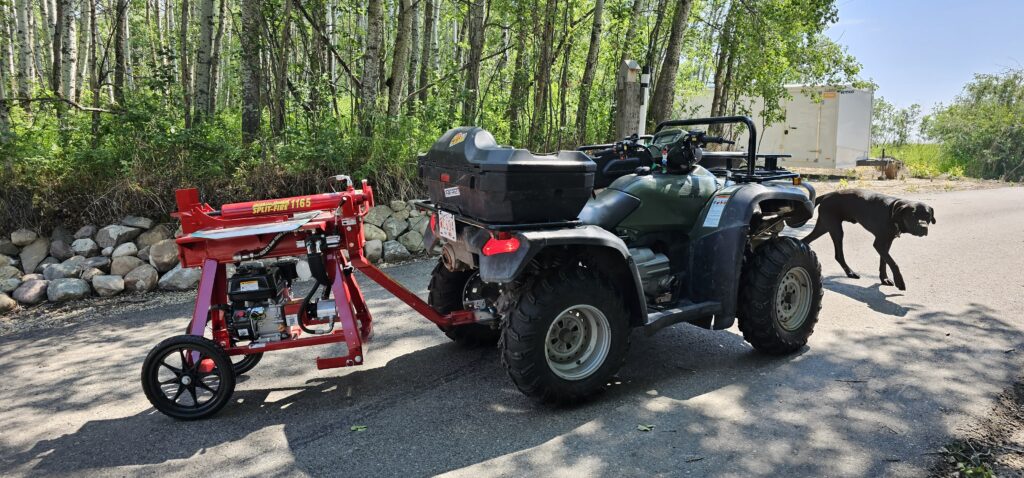

This is to everyone at Split-Fire who helped customize my splitter. I got the hitch modified as discussed to fit a ball for my quad. I think it looks pretty skookum! Thanks for everything...it has been a pleasure dealing with everyone at Split-Fire. I've appreciated your time and considerations. I thought I would send you a couple pics. Thanks

Image #2 from Dwayne Neustaeter

Dwayne Neustaeter

This is to everyone at Split-Fire who helped customize my splitter. I got the hitch modified as discussed to fit a ball for my quad. I think it looks pretty skookum! Thanks for everything...it has been a pleasure dealing with everyone at Split-Fire. I've appreciated your time and considerations. I thought I would send you a couple pics. Thanks

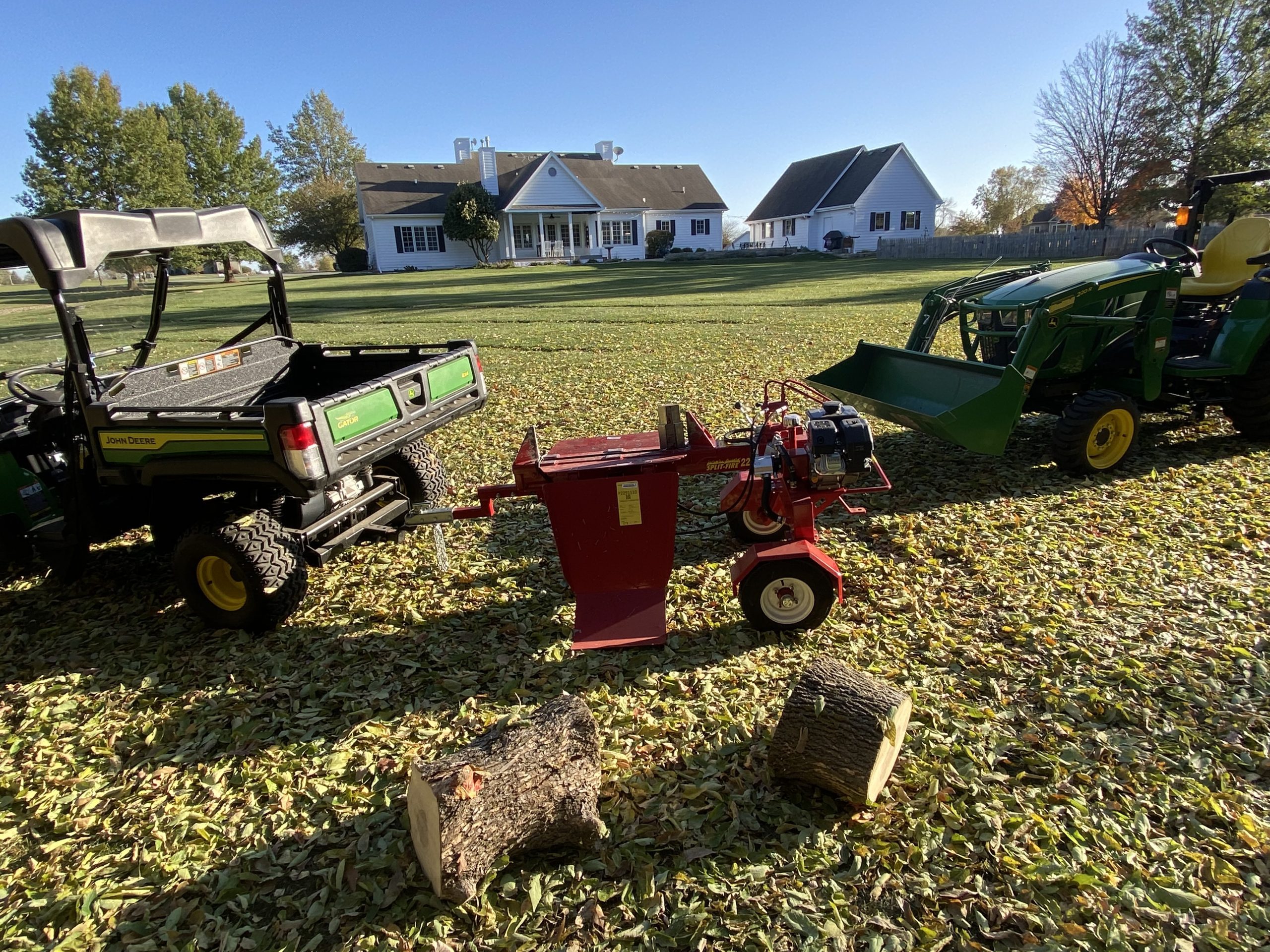

Image #1 from Rollie Holoubek

Rollie Holoubek

Kyle and Myla, Thanks so much for working with me to buy my first log splitter. I did tons of research and watched so many videos to figure out that the Split-Fire unit was the one I wanted. It finally arrived today and put it to work before it started to get dark. Pretty simple to understand how everything works. The engine started on the first pull. I love it. Here are a few photos, Thanks again!

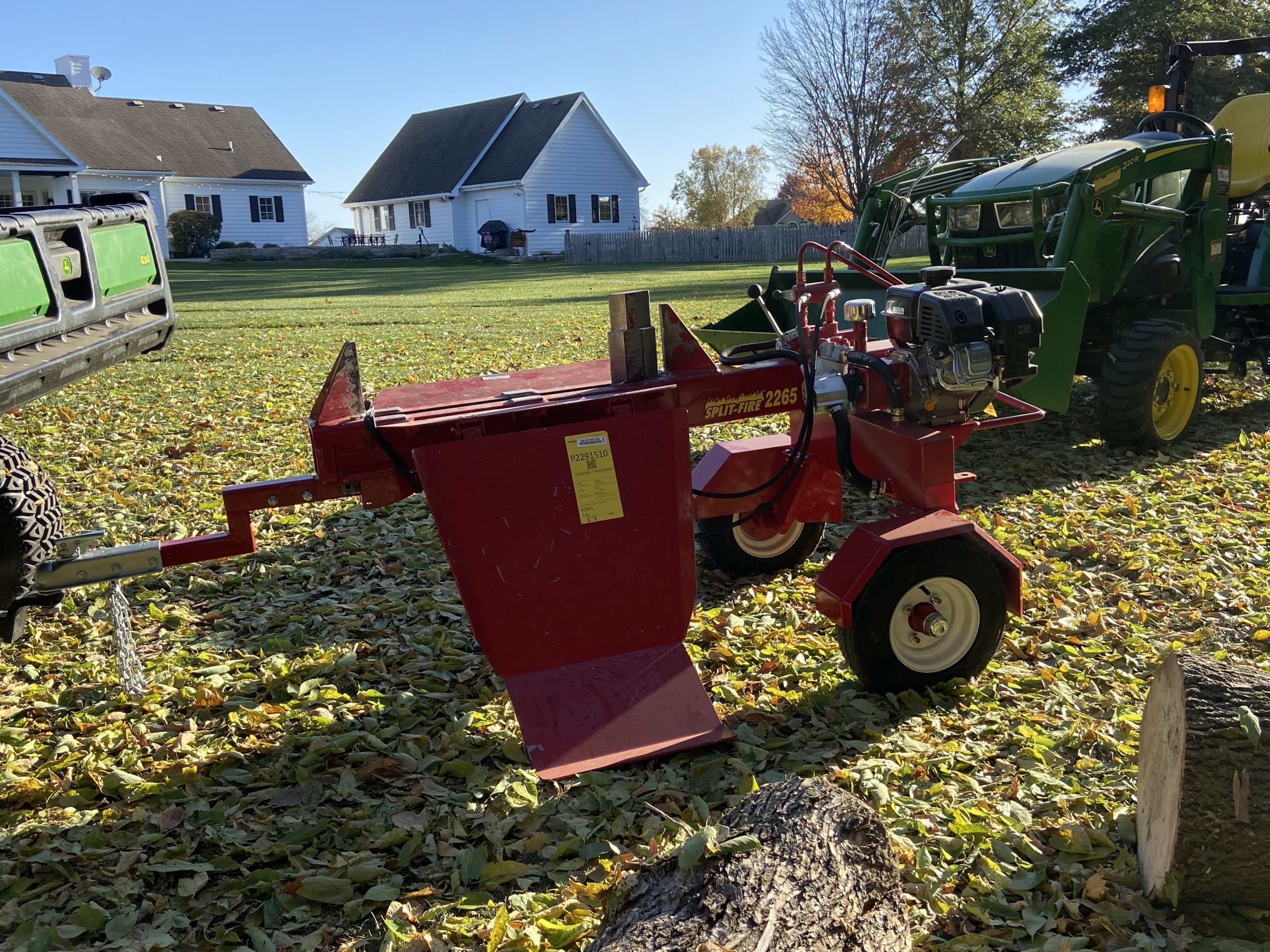

Image #2 from Rollie Holoubek

Rollie Holoubek

Kyle and Myla, Thanks so much for working with me to buy my first log splitter. I did tons of research and watched so many videos to figure out that the Split-Fire unit was the one I wanted. It finally arrived today and put it to work before it started to get dark. Pretty simple to understand how everything works. The engine started on the first pull. I love it. Here are a few photos, Thanks again!

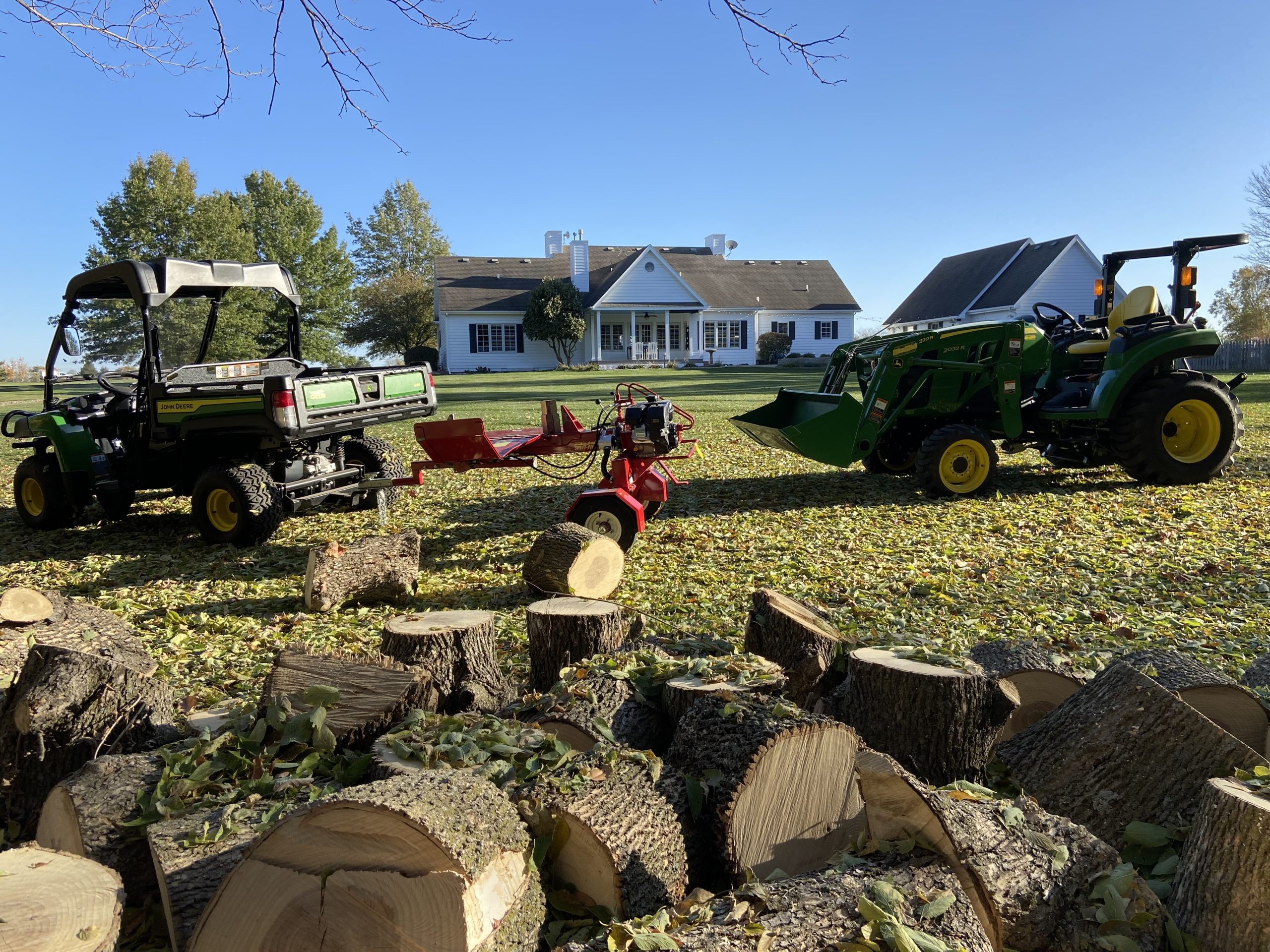

Image #3 from Rollie Holoubek

Rollie Holoubek

Kyle and Myla, Thanks so much for working with me to buy my first log splitter. I did tons of research and watched so many videos to figure out that the Split-Fire unit was the one I wanted. It finally arrived today and put it to work before it started to get dark. Pretty simple to understand how everything works. The engine started on the first pull. I love it. Here are a few photos, Thanks again!

Image #1 from Dave Holmes
Image #2 from Dave Holmes
Image #1 from Jared Carlberg
Image #2 from Jared Carlberg
Image #3 from Jared Carlberg
Image #1 from Lucas Peek
Image #1 from Dwayne Neustaeter
Image #2 from Dwayne Neustaeter
Image #1 from Rollie Holoubek
Image #2 from Rollie Holoubek
Image #3 from Rollie Holoubek
1165V 2265
1-5 of 28 reviews
  1. DH

    I’m telling you folks right now ! This Split-Fire 1165V way over past my expectations! Such a wonderful little powerhouse, if you’re thinking about one don’t wait this is the best affordable vertical wood splitter on the market. Thank you Split- Fire I couldn’t be happier 👍 PS 45minutes later!!!

    1165V
    Image #1 from Dave Holmes
    Image #2 from Dave Holmes
  2. DS

    Great splitter, I’ve been using it years!

  3. JC

    Our new Split-Fire 2265 showed up today and I could not be more delighted with the product. I was expecting to have to do quite a bit of assembly, but it came fully assembled. Okay, I thought, I’ll just run into the city and grab some hydraulic oil and engine oil. After checking, I was pleased to learn the machine was fully ready go to – just add gas!! I gave it a warm welcome with a tank full of four-stroke Aspen fuel 😉.

    Tested the machine out and am beyond ecstatic with how it works. Amazing torque even at low RPMs which keeps noise levels down; fast cycle time; generous log table to minimize handling; a real pleasure to operate!

    It turns out buying Canadian-made pays off. So incredibly happy that I did not go with a big-box option.

    Thank you for this wonderful product. I often say “Old sayings become old for a reason!” Turns out “You get what you pay for!”

    Included a few pictures; this is not where we usually split! I was considering an electric splitter to keep the noise down in our semi-residential area, but have no concerns whatsoever about our splitter – the Honda engine is nice and quiet, makes way less noise than our lawnmower or pressure washer.

    2265
    Image #1 from Jared Carlberg
    Image #2 from Jared Carlberg
    Image #3 from Jared Carlberg
  4. LP

    The 2265 is absolutely awesome! So much faster than my old splitter. It arrives in perfect condition, I fired it up and went straight to work. Great company to deal with!

    Image #1 from Lucas Peek
  5. DN

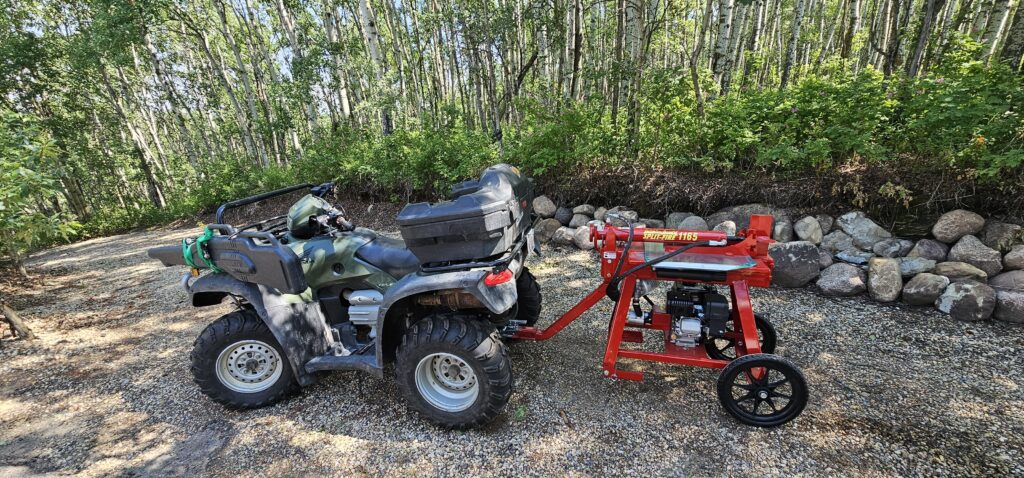

    This is to everyone at Split-Fire who helped customize my splitter. I got the hitch modified as discussed to fit a ball for my quad. I think it looks pretty skookum! Thanks for everything…it has been a pleasure dealing with everyone at Split-Fire. I’ve appreciated your time and considerations. I thought I would send you a couple pics.
