3455/3465

20-22 Ton Rated
20-22 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Log Lifter Compatible
Log Lifter Compatible
9-11 Second Cycle Time
9-11 Second Cycle Time

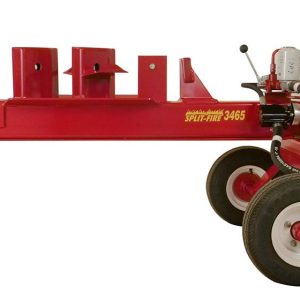

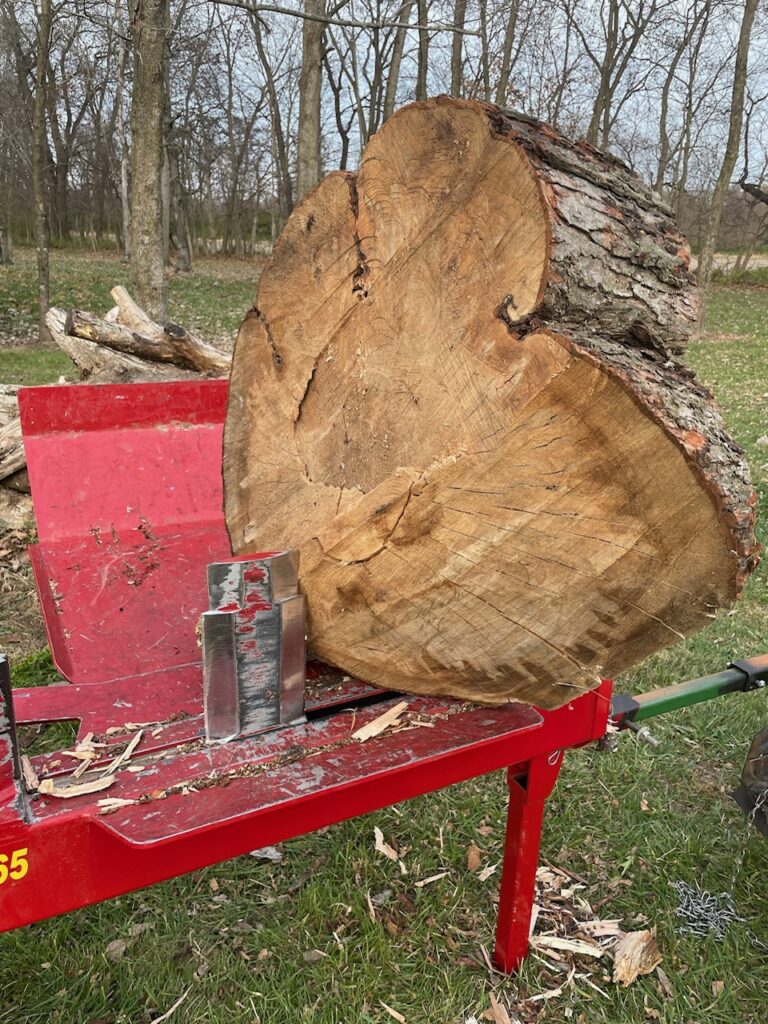

Interchangeable 4-Way Wedge
Interchangeable 4-Way Wedge

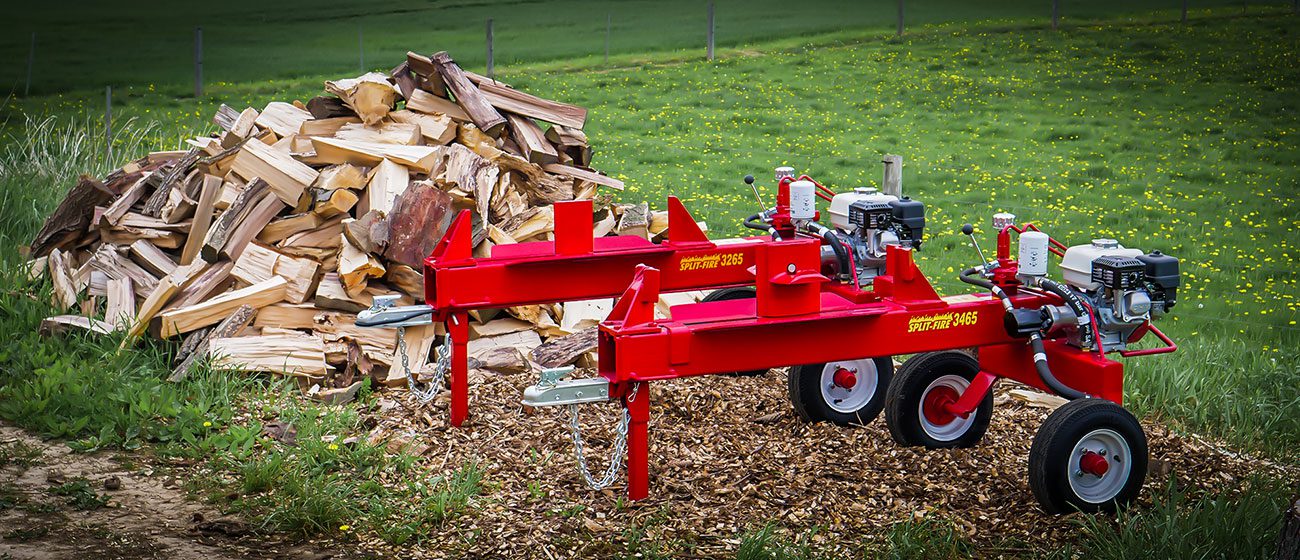

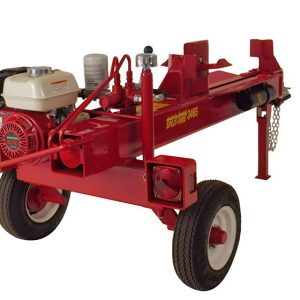

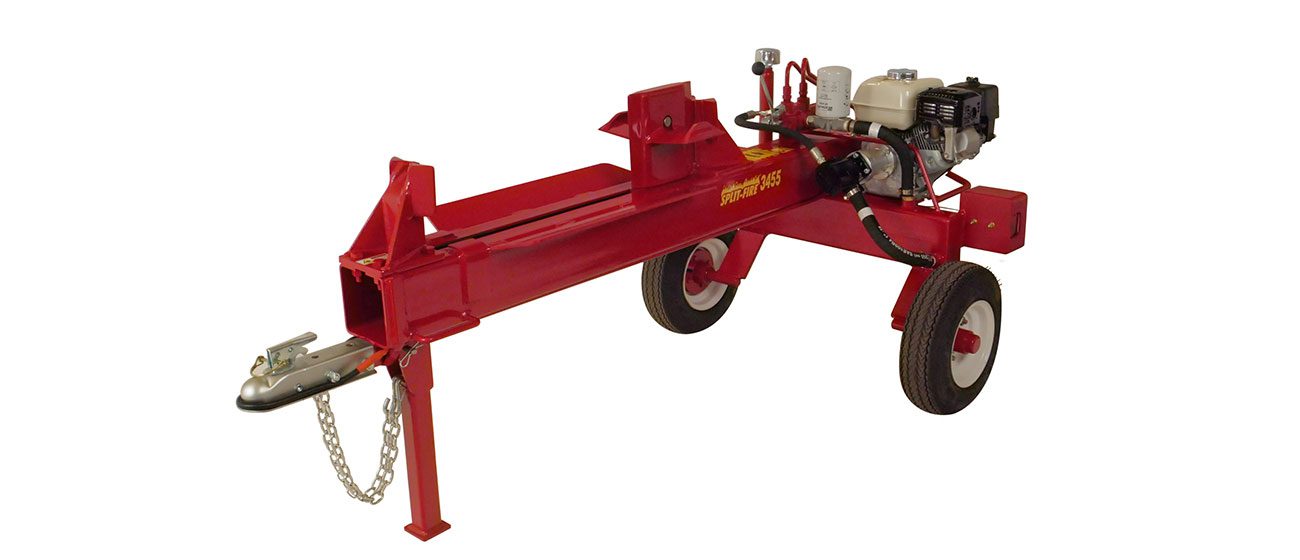

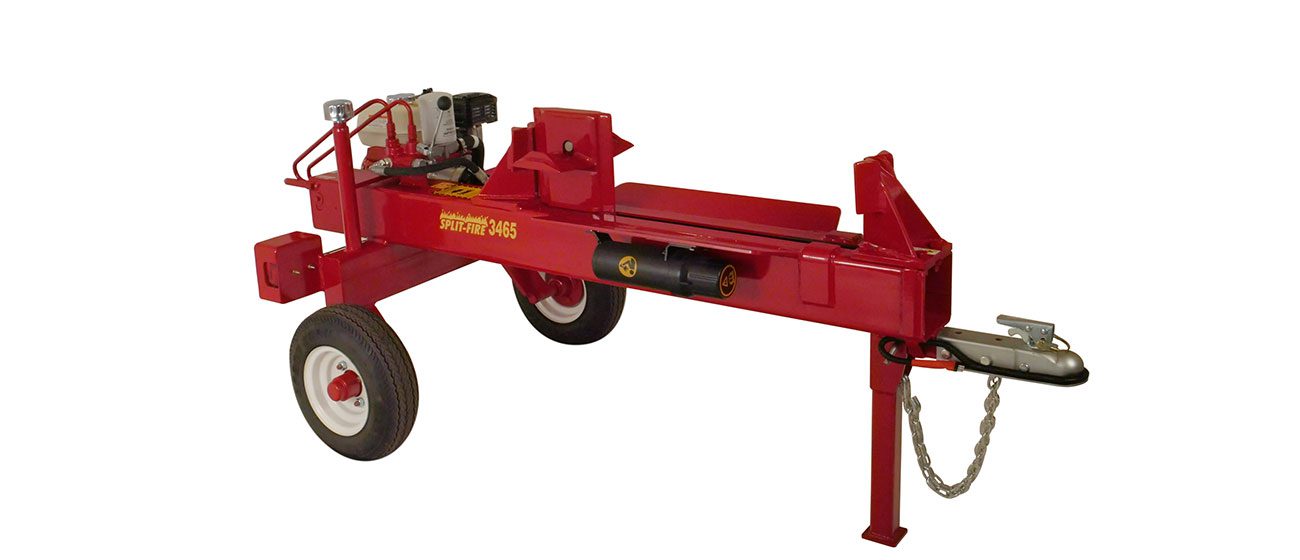

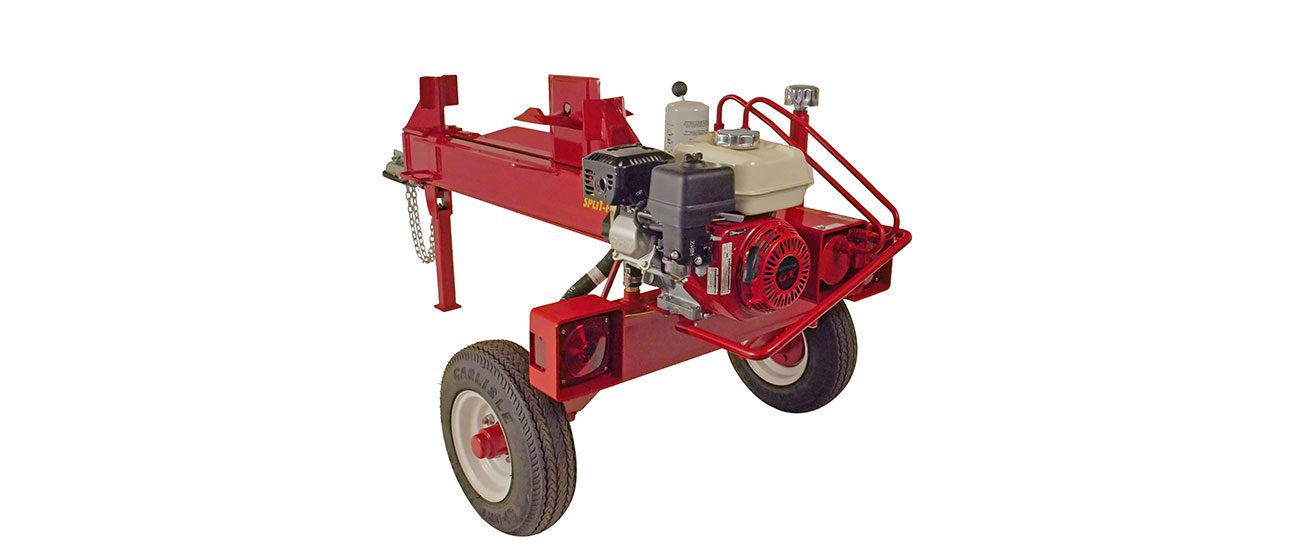

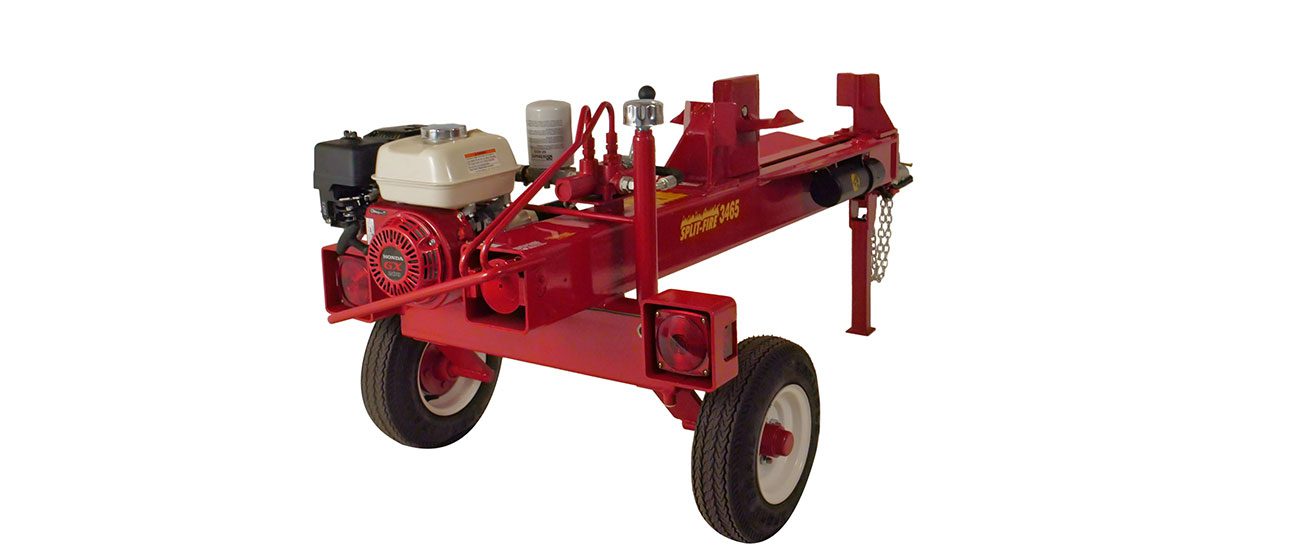

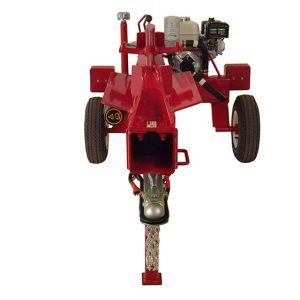

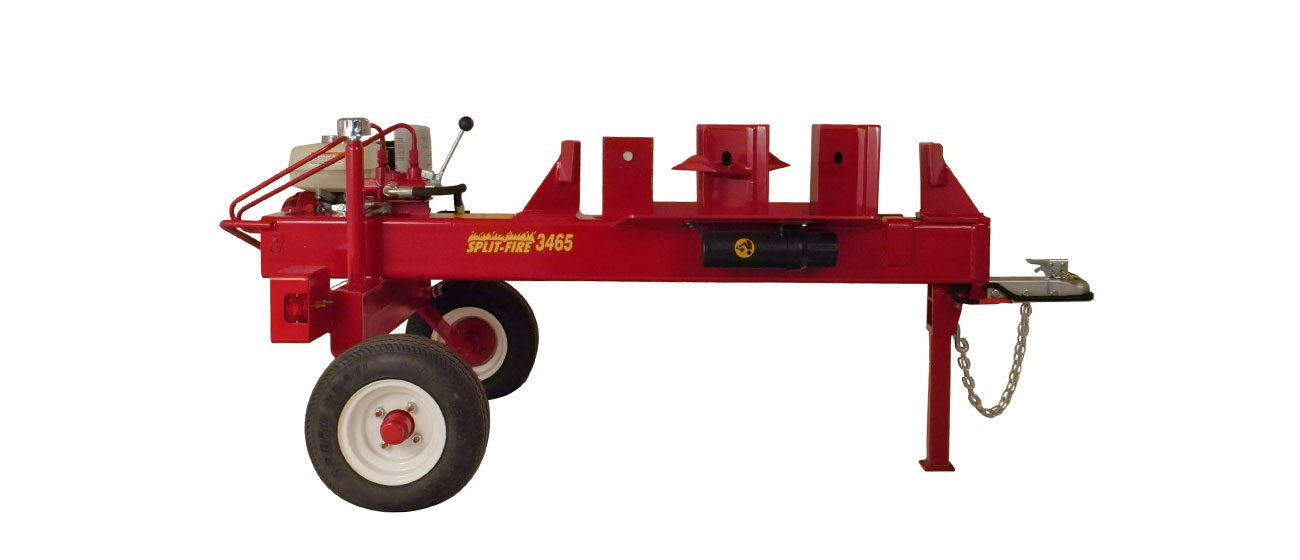

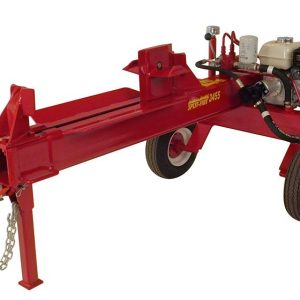

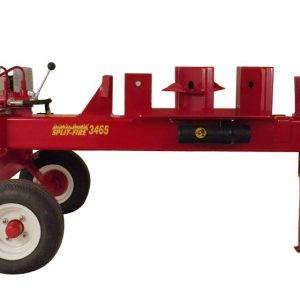

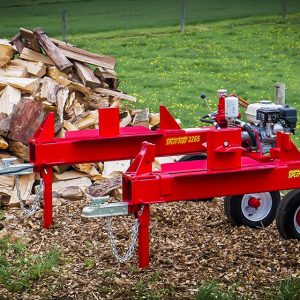

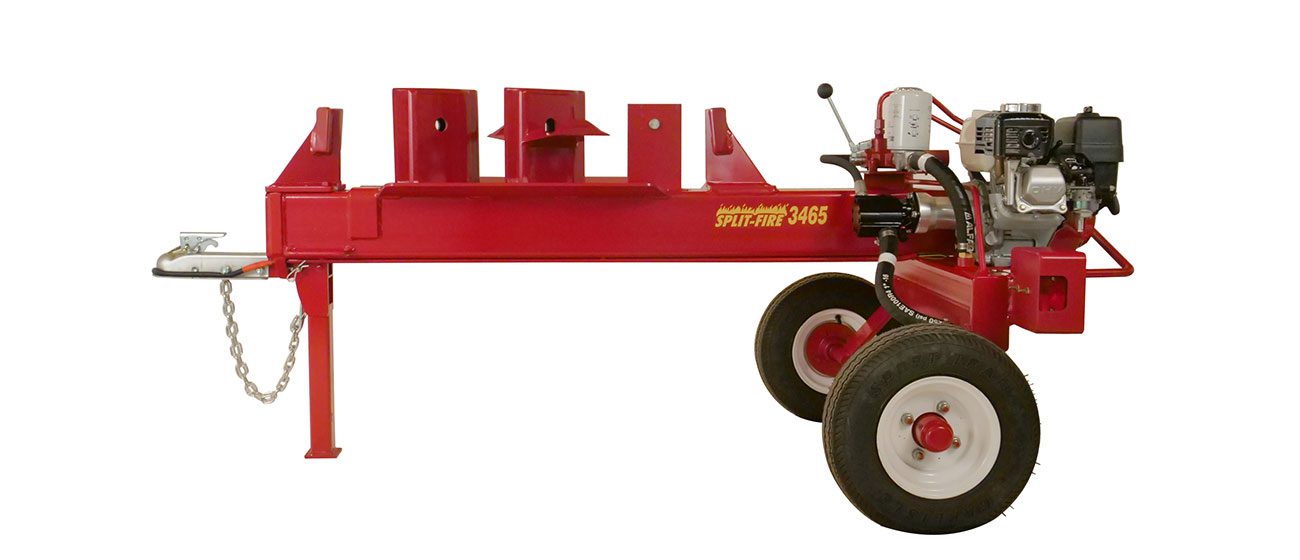

Log Splitter 3455 / 3465

The Split-fire 3455/3465 gas powered log splitter is the perfect machine for medium farms and large estates. In certain cases, it is also used in equipment rental locations. The 20-22 tons of splitting force has plenty of power to split large 36”+ diameter rounds. Although similar in power and speed to the 3255/3265 log splitter, the 3455/3465 offers an interchangeable 2-way / 4-way knife. And no, it’s not just an added 2-way / 4-way knife. The frame is lengthened and reinforced, along with specific 4-way sliders, stops, and stub.

When time is money and the wood is straight, the interchangeable knife can increase productivity by 100%. It can be simply changed in 10 seconds by the removal of a quick-change pin. This allows flexibility when splitting large knotty logs with the 2-way knife or splitting straight grain wood with a 4-way wedge for extra productivity. With the addition of available weld-on options, the 3455/3465 can be built for your needs as a custom wood splitter. The 3455/3465 is nicely sized for medium operations, and is a perfect blend of efficiency, safety, speed and power.

LETS BUILD IT!

$4,639.00

Select Stroke Length to Unlock Options
Select Stroke Length to Unlock Options
Select Stroke Length to Unlock Options
Select 4″ or 8″ Lift AND Log Lifter to Unlock Options
Select 4″ or 8″ Lift AND Log Lifter to Unlock Options
Select 4″ or 8″ Lift AND Log Lifter to Unlock Options
Product total
Options total
Grand total
  • Current build time of 2 weeks.

    TOW CONFIGURATION *

    ENGINE *

    STROKE LENGTH *

    LOG LIFTER & TABLE

    Select Stroke Length to Unlock Options

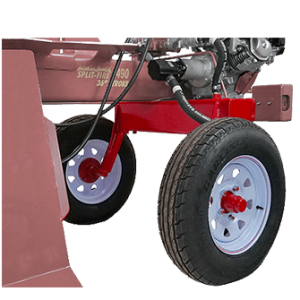

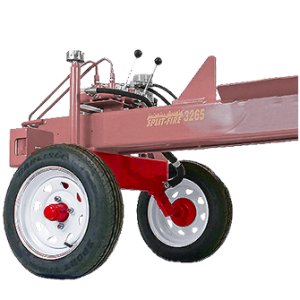

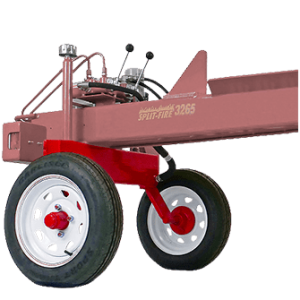

    BED HEIGHT & TIRE

    Select Highway Towable to Unlock Options

    LOG LIFTER EXTENSION

    Select 4" or 8" Lift AND Log Lifter to Unlock Options

    OPTIONS

Pay a deposit of $500.00
Share with friends:

DEPOSIT

Minimum $500 deposit is required to have you
machine put on order.

DISCLAIMER

Once your machine is in the manufacturing
process the $500 is non refundable.
More Machine Info Below

MACHINE SPECS

Frame 6" x 6" steel tube
Tonnage 20 tons splitting force
Cycle Speed 9 - 11 seconds

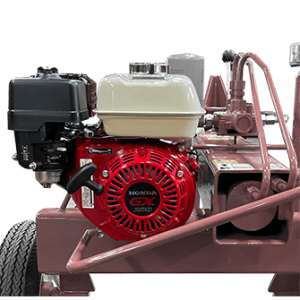

Power Source Honda GX 160 - 3455 | Honda GX 200 - 3465
Pump 11 GPM low pressure | 2.7 GPM high pressure
Reservoir 12.5 L
Stroke Length 24"
Bed Width 15"

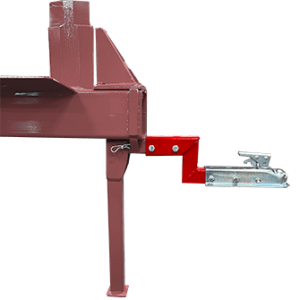

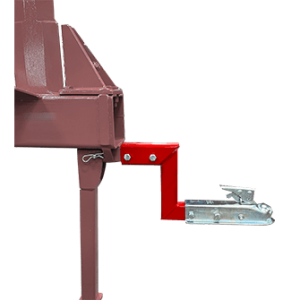

Standard Hitch Size 2" ball coupler
Overall Width 40"
Overall Length 86"
Overall Height 34"
Weight 500 lbs
Bed Height 24"
Knife Height 9” / 2-way | 9½” / 4-way
Cylinder Size 3½” x 24"
Tire Size 4.80" x 8"
