32 Ton Rated
32 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design

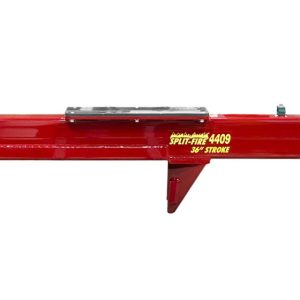

Extended Stroke Options
Extended Stroke Options
11-13 Second Cycle Time
11-13 Second Cycle Time

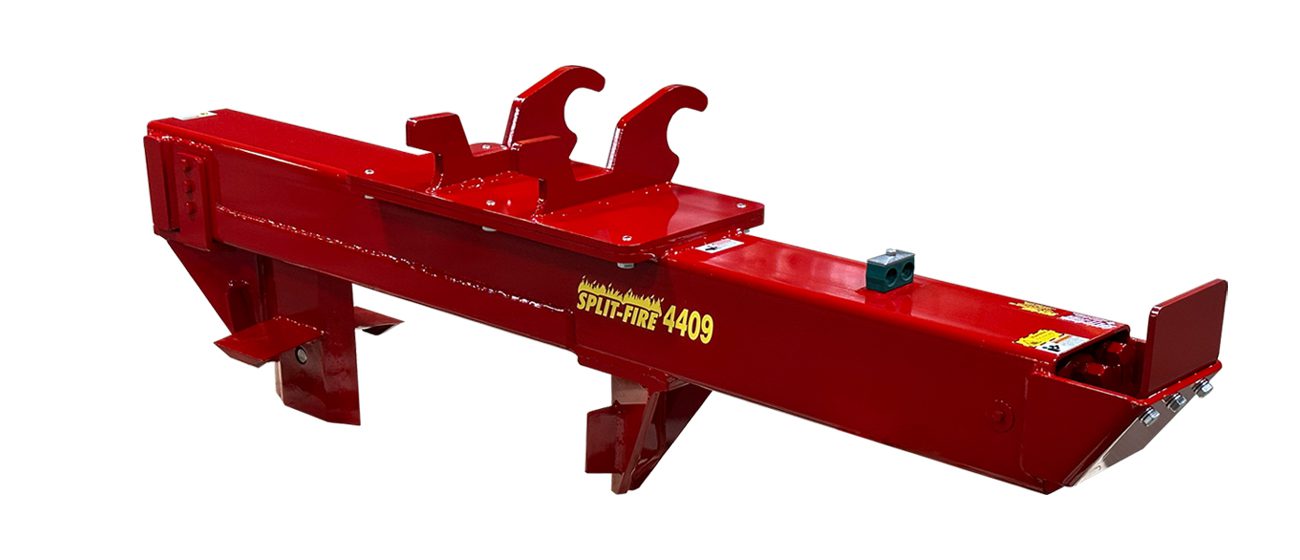

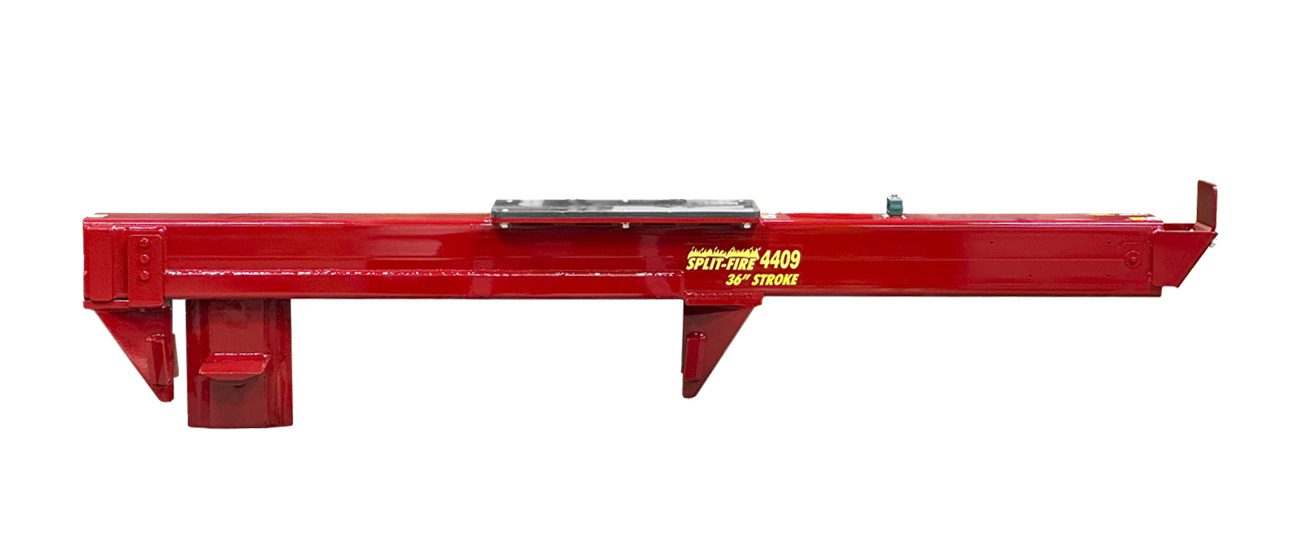

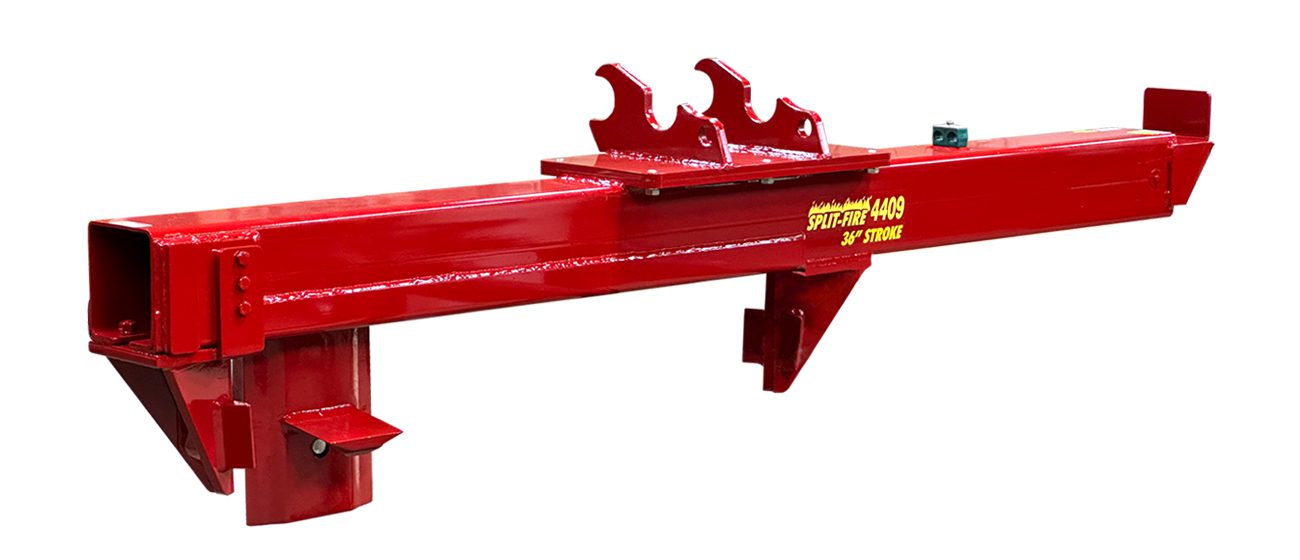

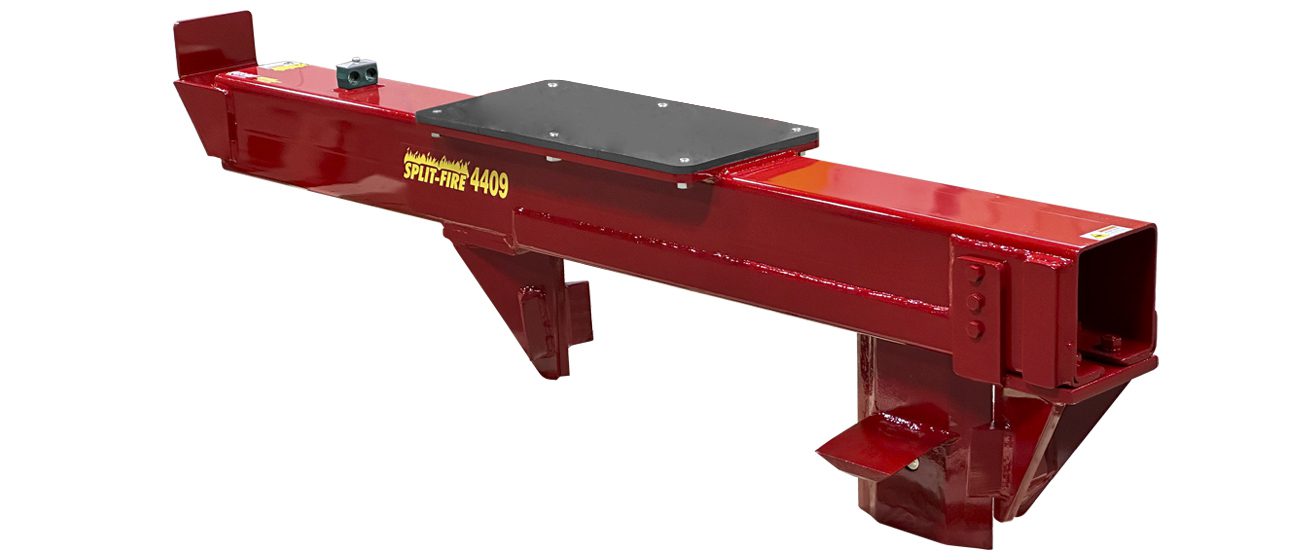

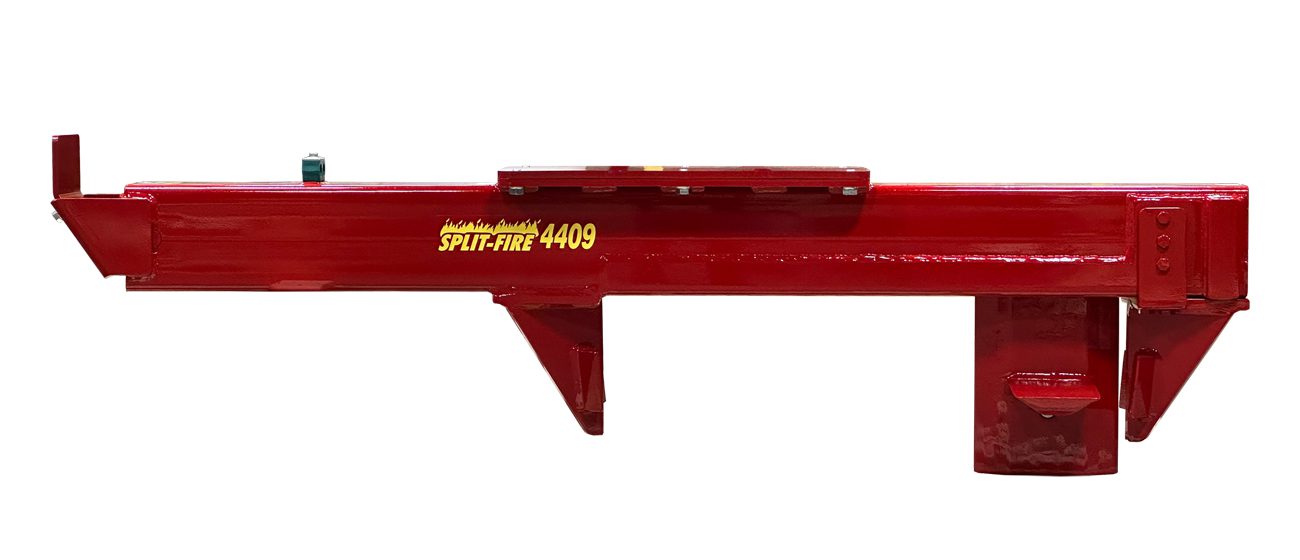

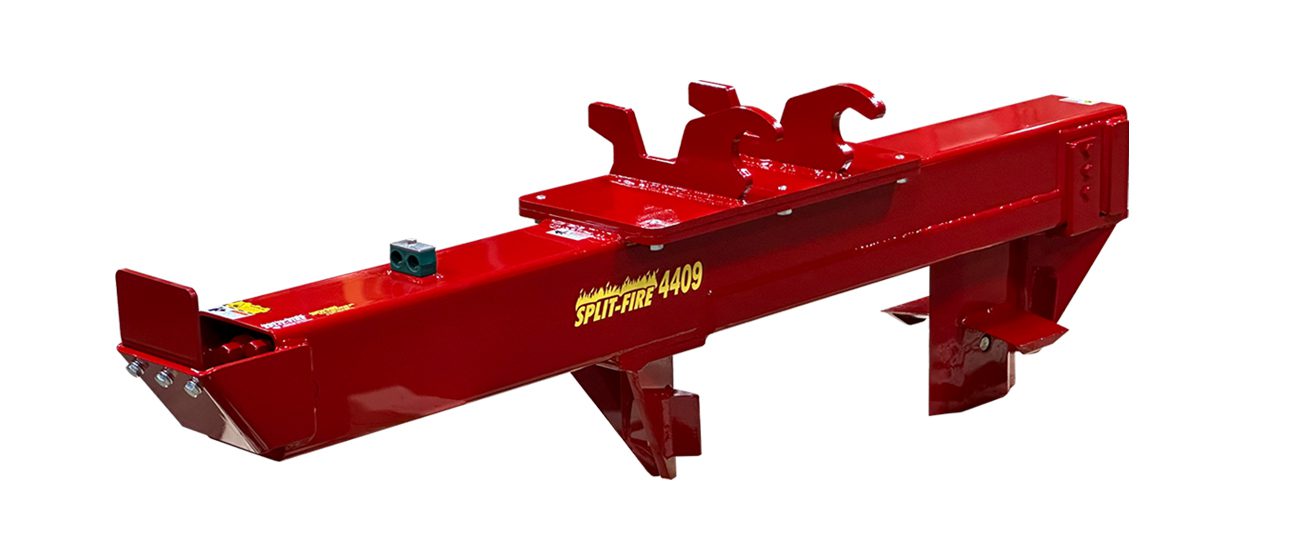

Log Splitter 4409

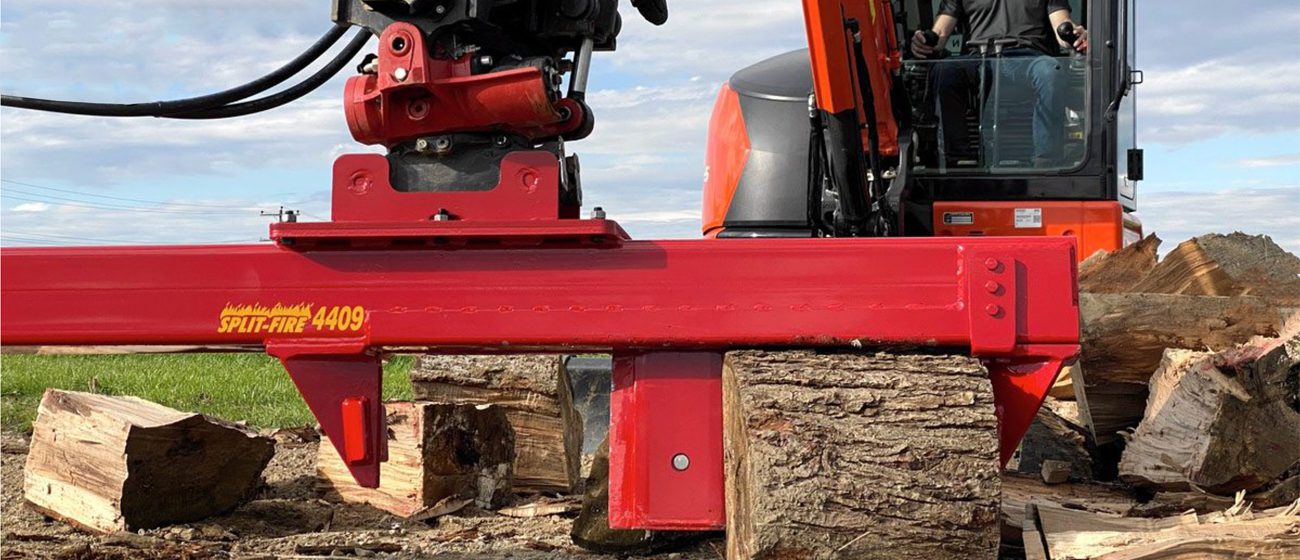

Looking for another productive excavator attachment? The Split-fire 4409 excavator Mount Wood splitter is a similar design to the 4209 excavator log splitter but is equipped with both a 2-way and 4-way knife. Sit in your excavator and bust large logs down with the 2-way knife, then switch to the 4 way and re-split those larger chucks into manageable firewood. Knife changes are done in less than a minute via a quick-change pin. A very efficient setup with a good operator on a small to medium excavator.

This machine is great for splitting down large logs into boiler wood, or chucks for re-splitting for a firewood operation. Pushing 32 tons at 2900 PSI, the 4409 takes all flow and pressure from the auxiliary off the excavator which equals zero maintenance and worries. All you need to do is slip it on via the quick attach, plug in the hydraulics and you’ll be moving and splitting 400 lbs. logs like its kindling.

LETS BUILD IT!

$3,377.00

Product total
Options total
Grand total
Pay a deposit of $500.00
Share with friends:

DEPOSIT

Minimum $500 deposit is required to have you
machine put on order.

DISCLAIMER

Once your machine is in the manufacturing
process the $500 is non refundable.
More Machine Info Below

MACHINE SPECS

Frame 7" x 7" steel tube
Log Capacity 40" - 48" diameter
Tonnage 32 tons @ 2900 psi
Cycle Speed Governed by excavator volume
Power Source Excavator Attach | Includes 5' of hose
Pump Excavator Pump Displacement
Reservoir Excavator
Stroke Length 24"
Quick Connects Not included
Overall Width 12"
Overall Length 76"
Overall Height 19"
Weight 530 lbs
Bed Height Excavator Plates raise / lower
Knife Height 12" / 2-way | 12" / 4-way
Cylinder Size 4½” x 24"
Hydraulic Flow 8 gpm - 20 gpm
