20-22 Ton Rated
20-22 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Extended Stroke Options
Extended Stroke Options
9-11 Second Cycle Time
9-11 Second Cycle Time

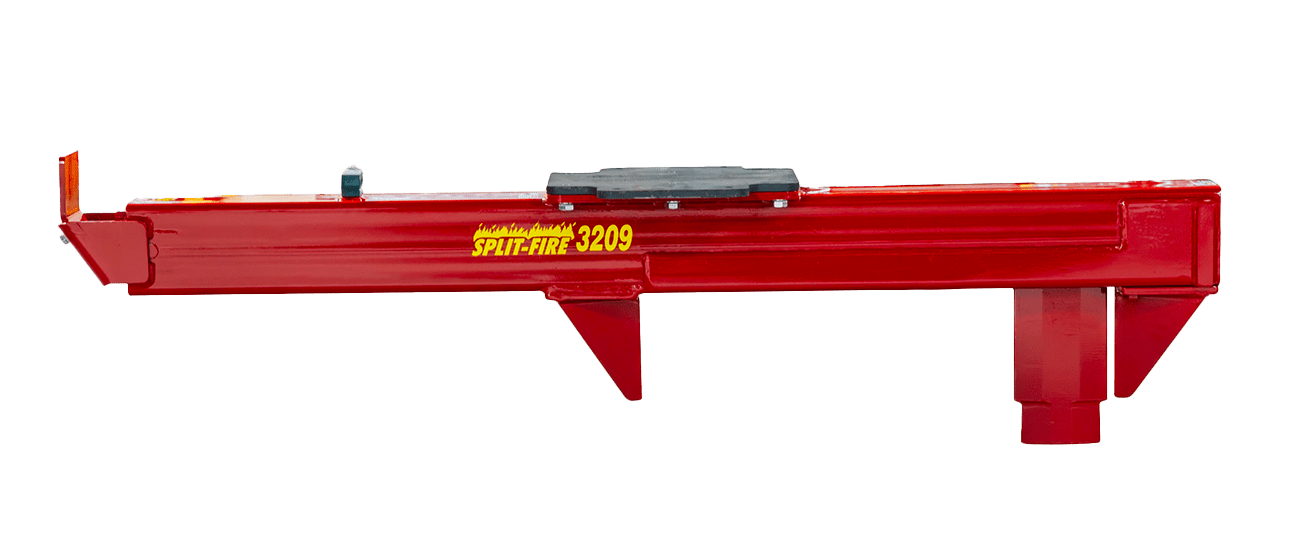

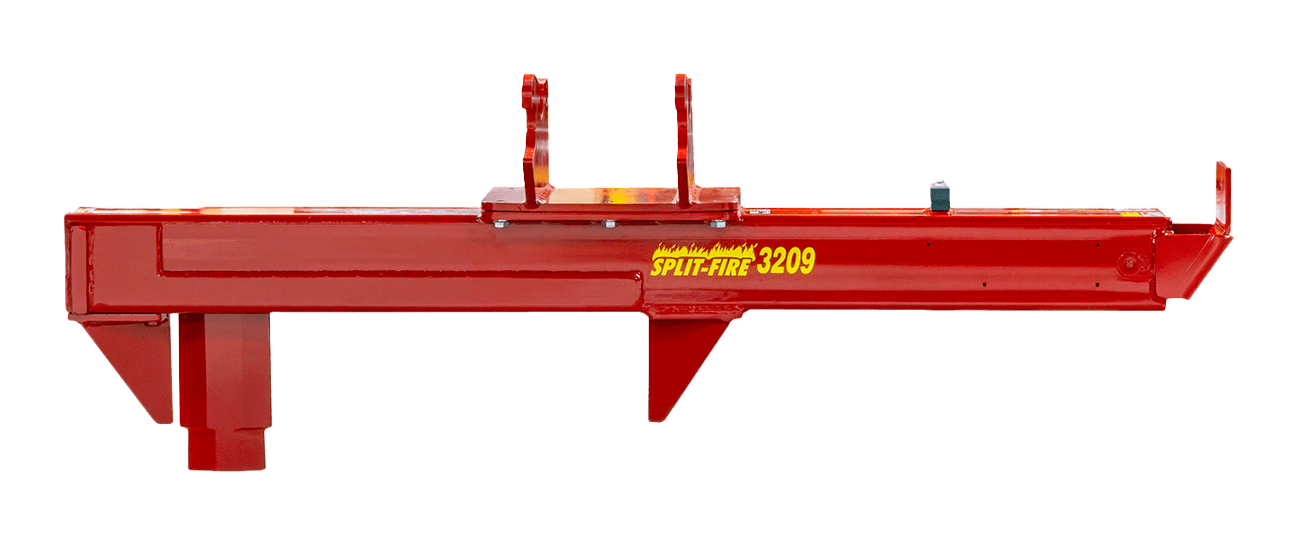

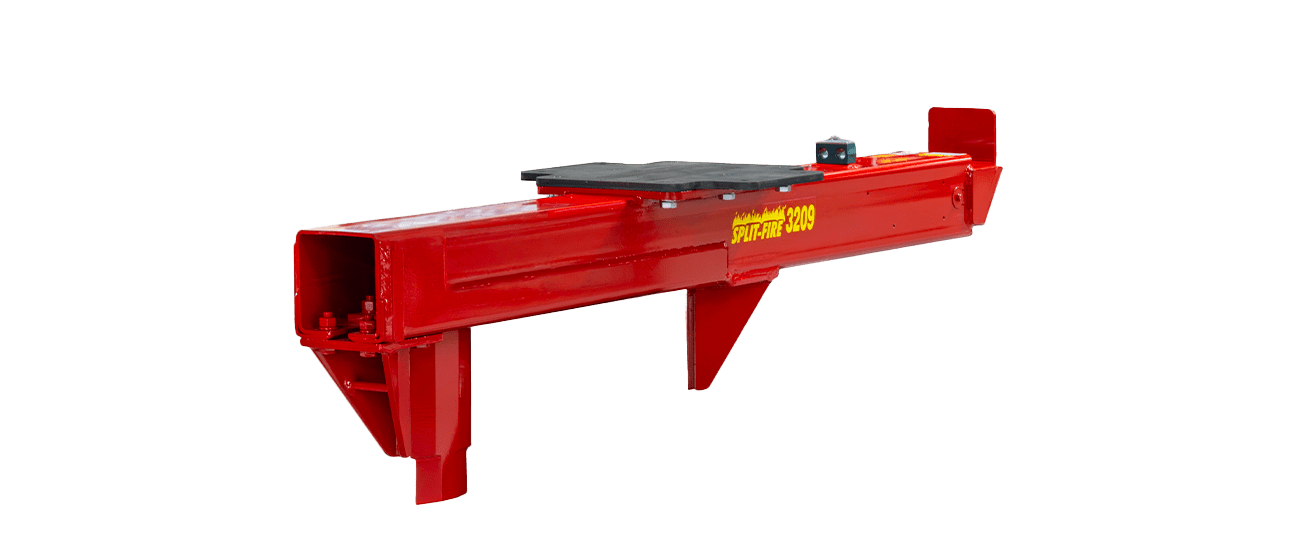

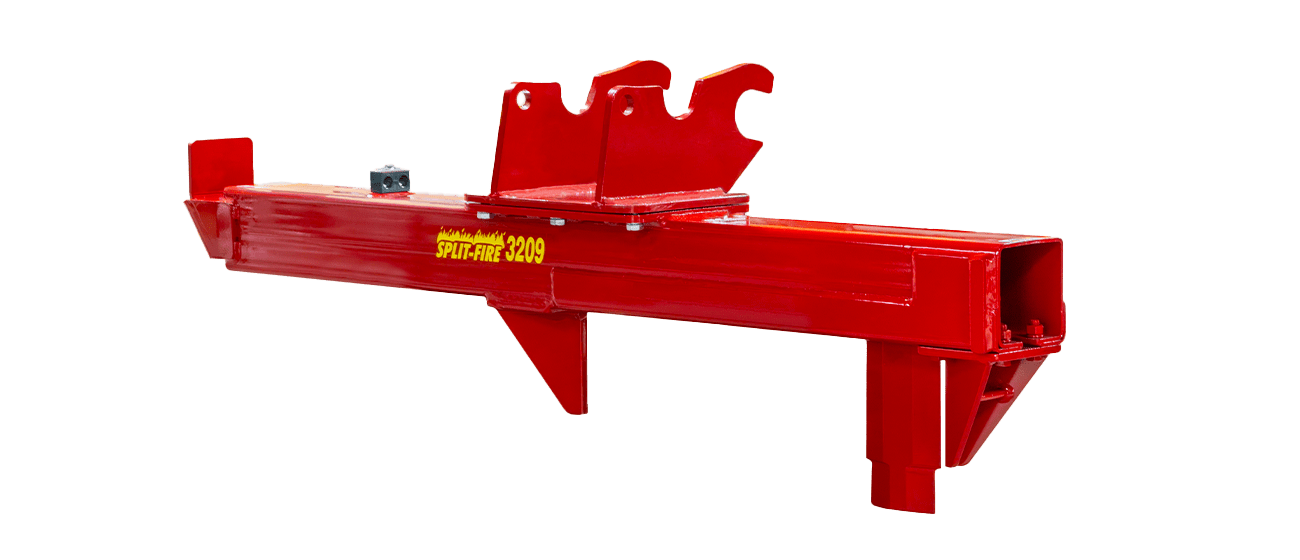

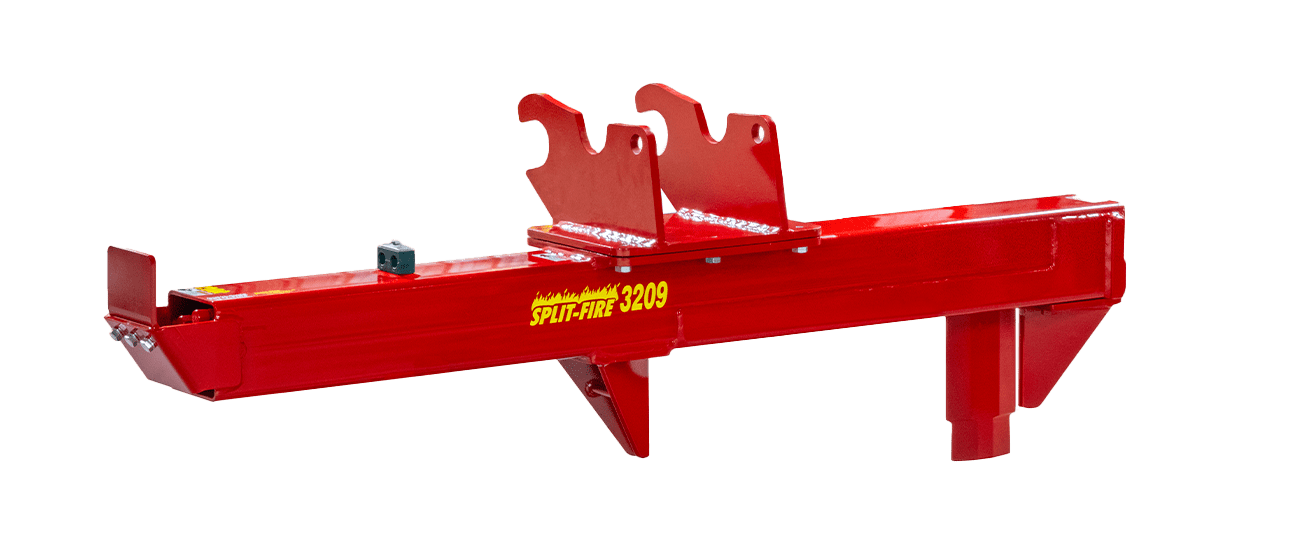

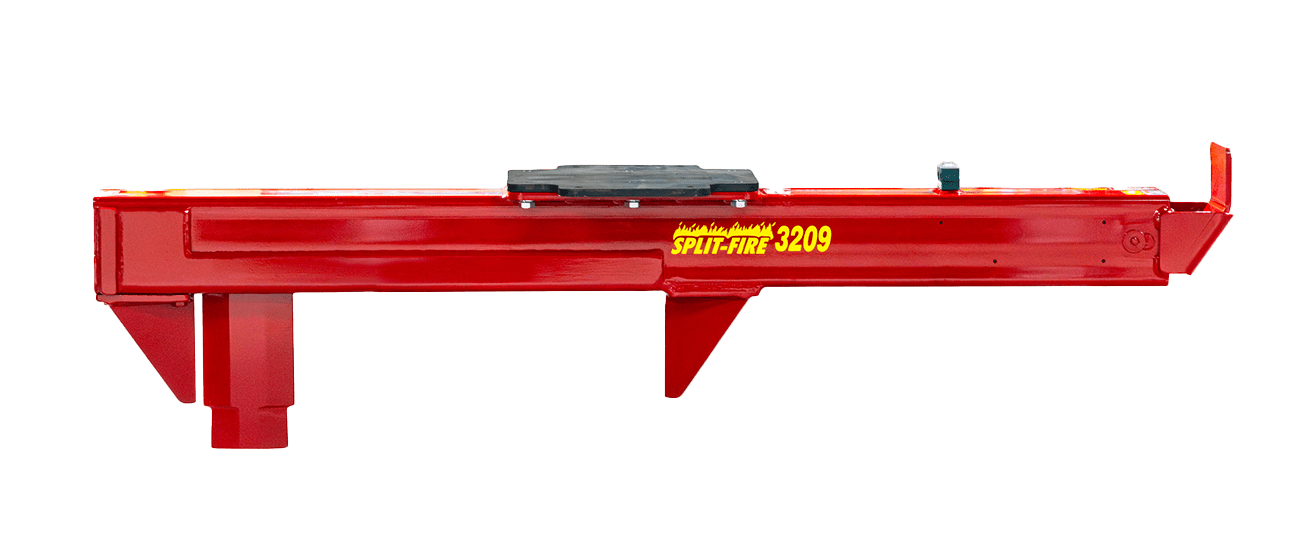

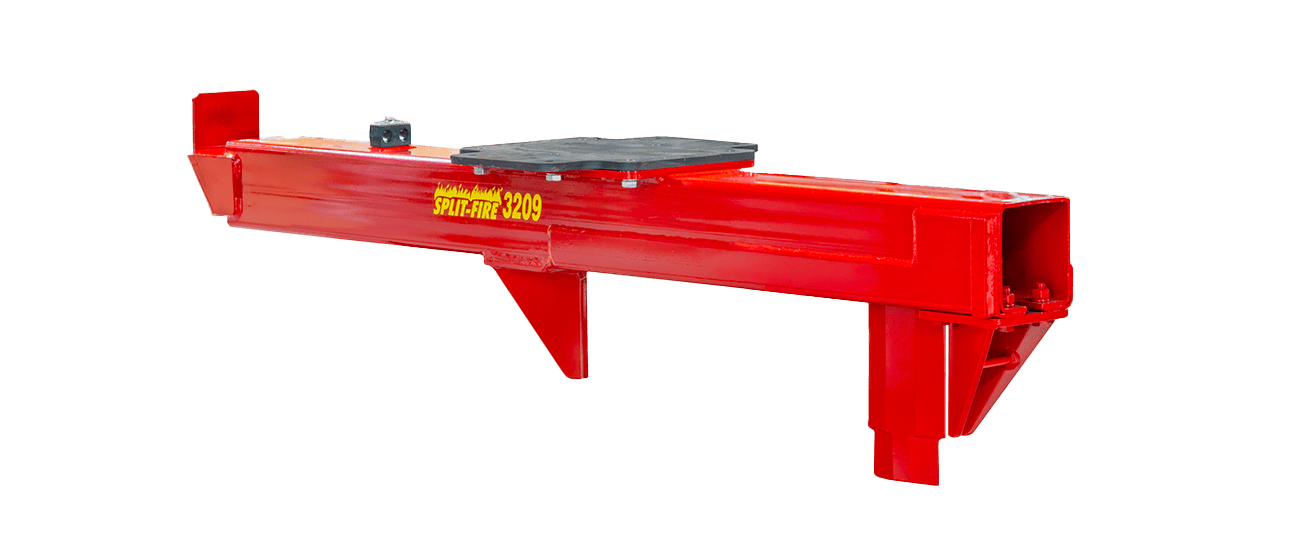

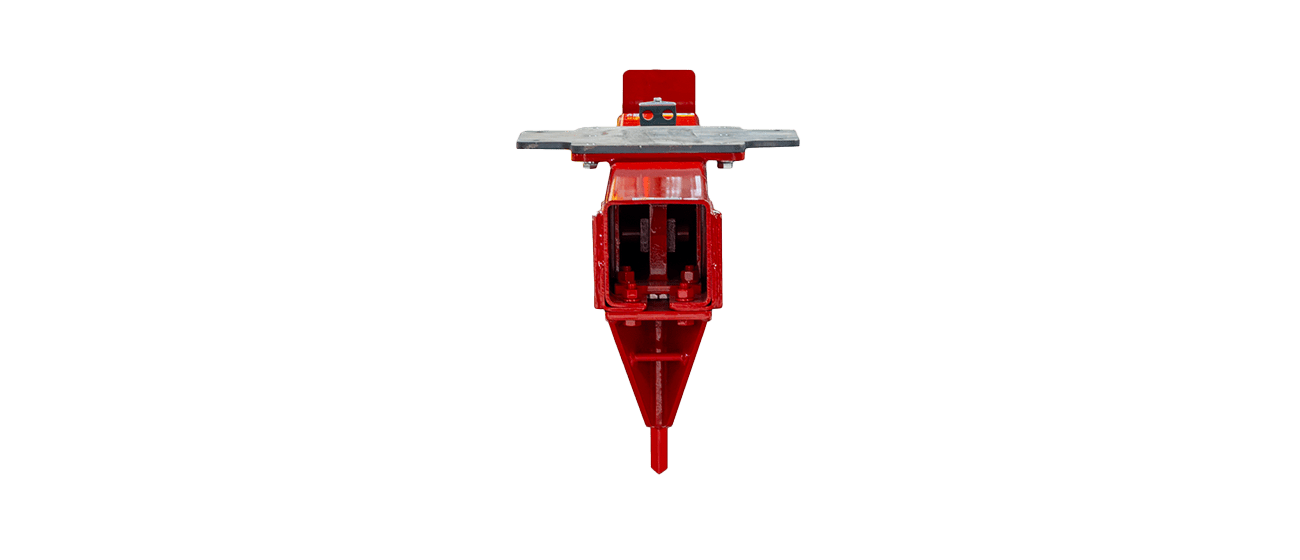

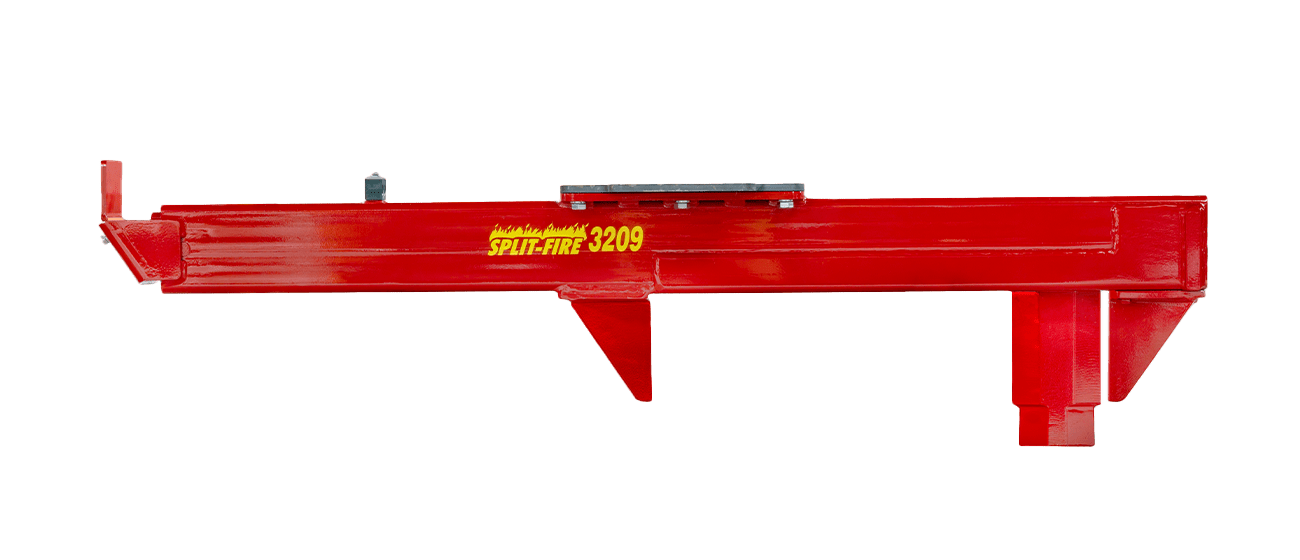

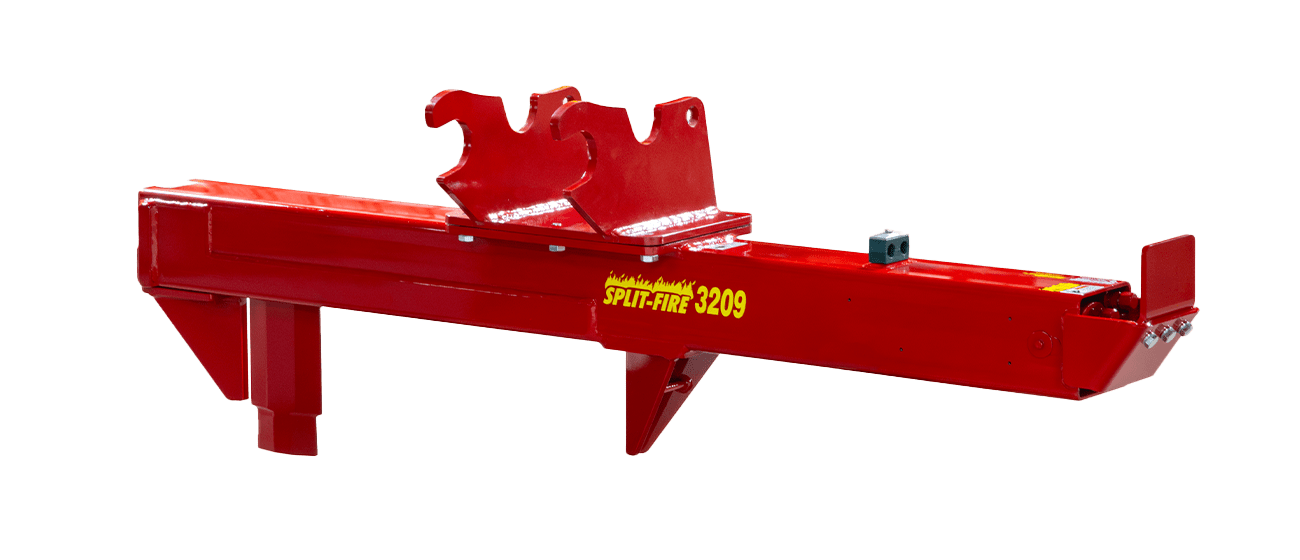

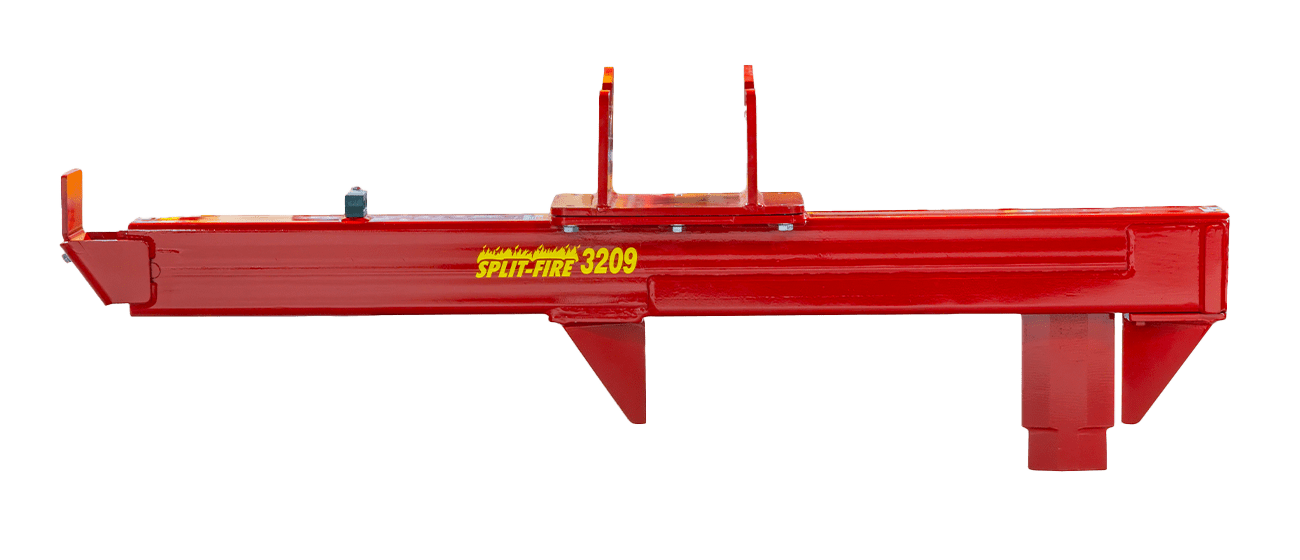

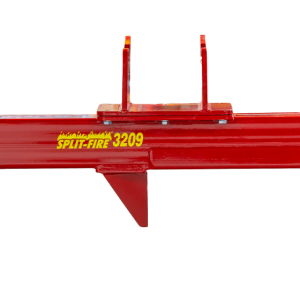

Log Splitter 3209

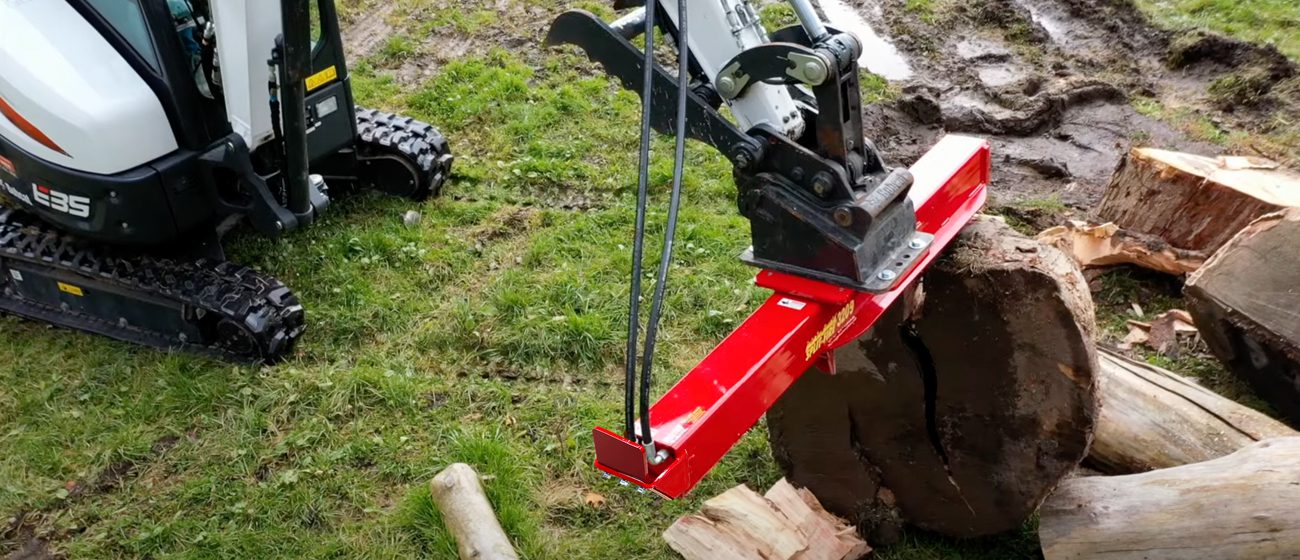

Why break your back splitting large rounds by hand? If you own or have access to a mini excavator, the 3209 log splitter is a great attachment. Large logs can easily weigh 400 lbs or more and an excavator log splitter will quickly allow you to process large logs into manageable firewood for your firewood boiler or to further your country living needs.

The 3209 has been specifically made for small excavators in the 1.5 – 5 ton range and pushes 20 tons at 2900 PSI. Manufactured with a heavy duty tube frame, it ensures the cylinder and slider are safe when lifting, pushing and splitting logs. With a good operator behind the controls, the 3209 makes splitting easy and safe. Large logs that are usually discarded or left till last, can be processed quickly into valuable energy for your winter heating needs.

LETS BUILD IT!

$1,743.00

Product total
Options total
Grand total
Pay a deposit of $500.00
Share with friends:

DEPOSIT

Minimum $500 deposit is required to have you
machine put on order.

DISCLAIMER

Once your machine is in the manufacturing
process the $500 is non refundable.
More Machine Info Below

MACHINE SPECS

Frame 6" x 6" steel tube
Log Capacity 30" - 48" diameter
Tonnage 20 tons @ 2900 psi
Cycle Speed 9 SEC. @ 12GPM | 14 SEC. @ 8 GPM | 28 SEC. @ 4 GPM
Power Source Excavator
Pump Excavator Pump Displacement
Reservoir Excavator
Stroke Length 24"
Quick Connects Not included
Overall Width 12"
Overall Length 75"
Overall Height 18"
Weight 275 lbs
Bed Height N/A
Knife Height 11"
Cylinder Size 3½” x 24"
Hydraulic Flow 8 GPM - 20 GPM
Total Cycle Time = 4.679(Stroke/GPM)
