32 Ton Rated
32 Ton Rated

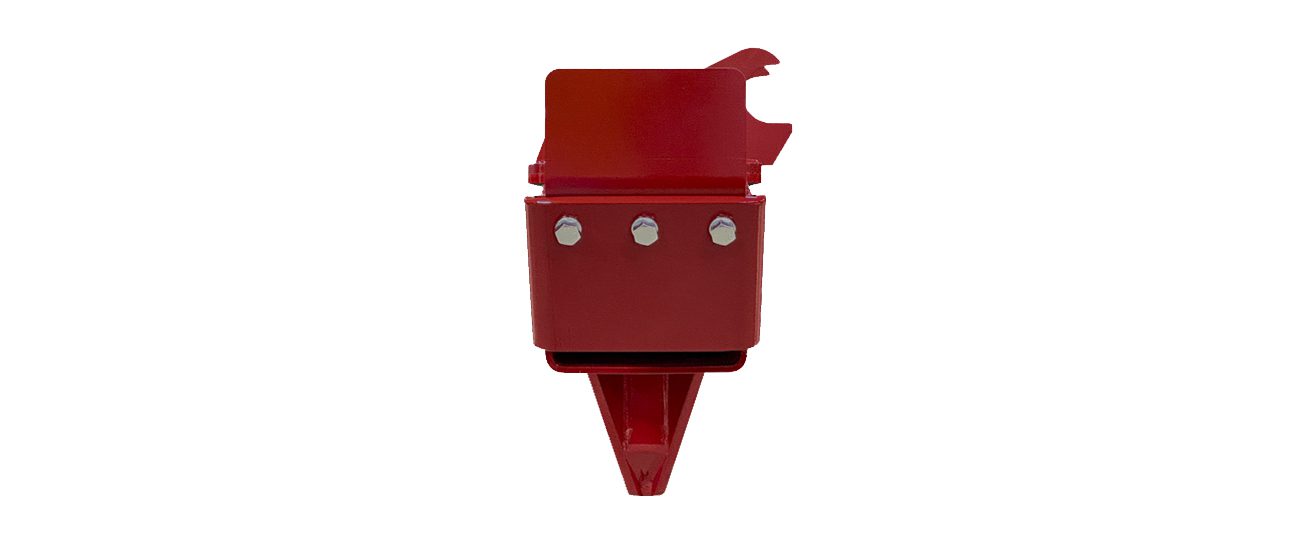

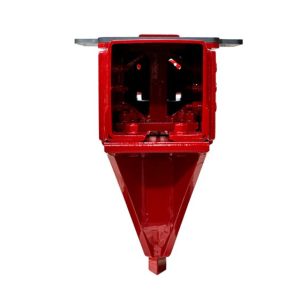

2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Extended Stroke Options
Extended Stroke Options
11-13 Second Cycle Time
11-13 Second Cycle Time

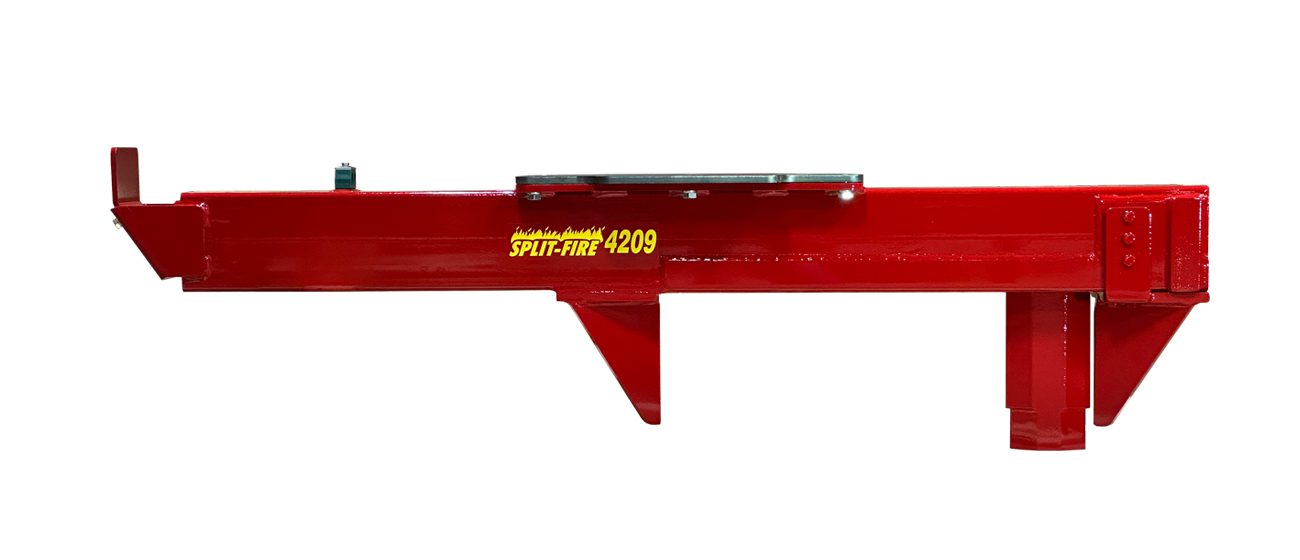

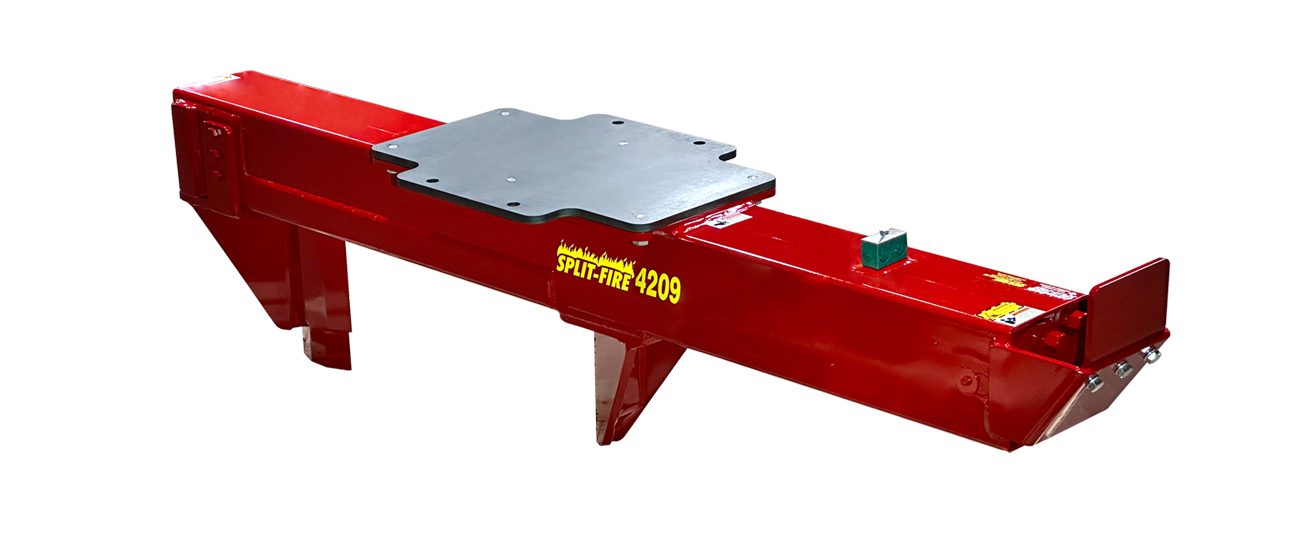

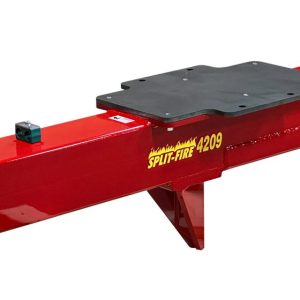

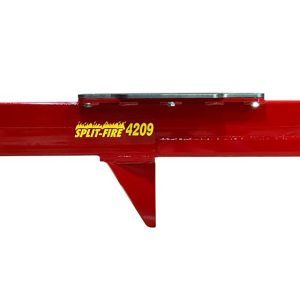

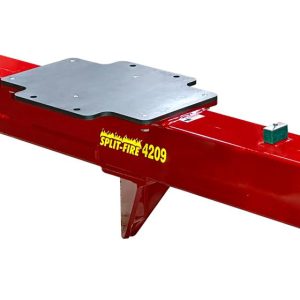

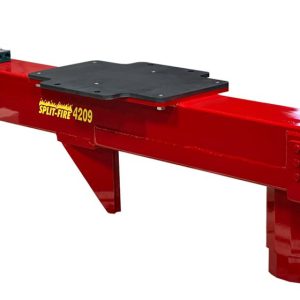

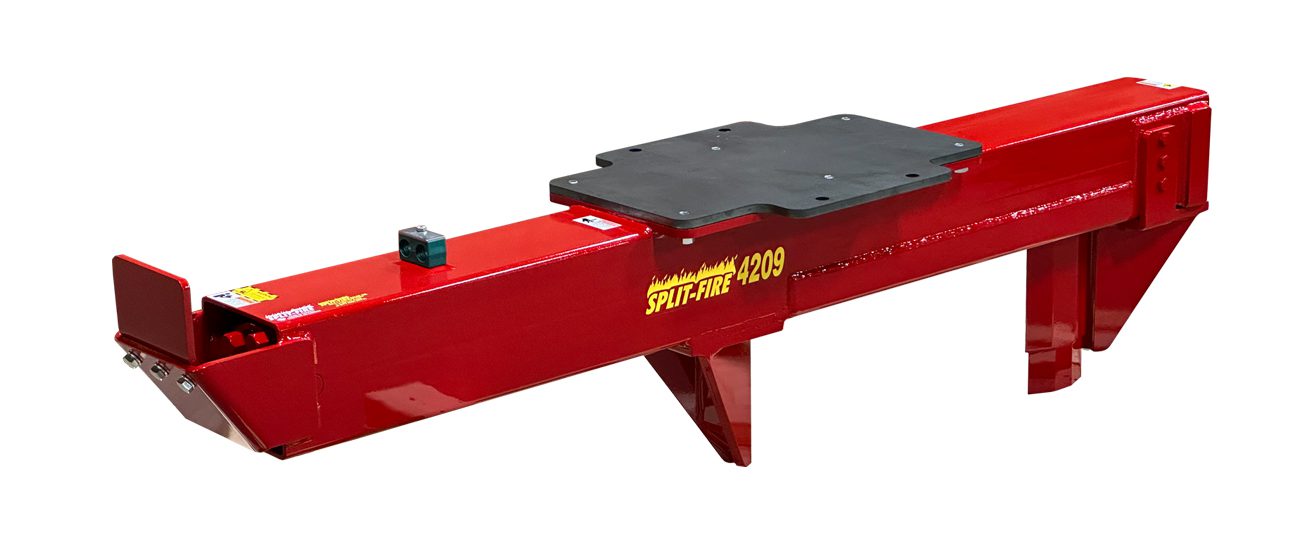

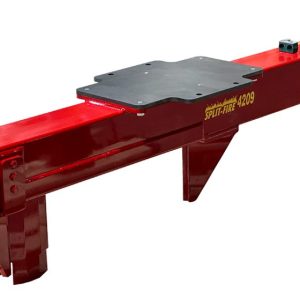

Log Splitter 4209

You can’t beat the moving power and speed an excavator has to offer when powering an excavator mount log splitter!! Whether you have a min ex or a mid-sized excavator, and you need to split large logs, the Split-fire 4209 is the perfect fit. Literally a splitter at the end of your arm, you can easily pinch, move, toss, and split wood as needed. Without the need to move the machine like a skidsteer, and the Split-fire 2-way split, efficiency is at an all-time high with this setup.

Pushing 32 tons at 2900 PSI, the 4209 can be run on any excavator over 3 tons. With the operator working comfortably behind the controls, the 4209 offers great visibility and more than enough power to crack the largest knotty rounds. A good operator can simply swing around and split the wood directly into a bin or trailer. The ultimate setup for a pile of large logs that can’t simply be split by hand.

LETS BUILD IT!

$2,597.00

Product total
Options total
Grand total
Pay a deposit of $500.00

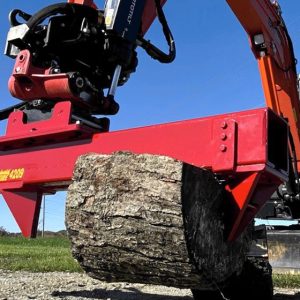

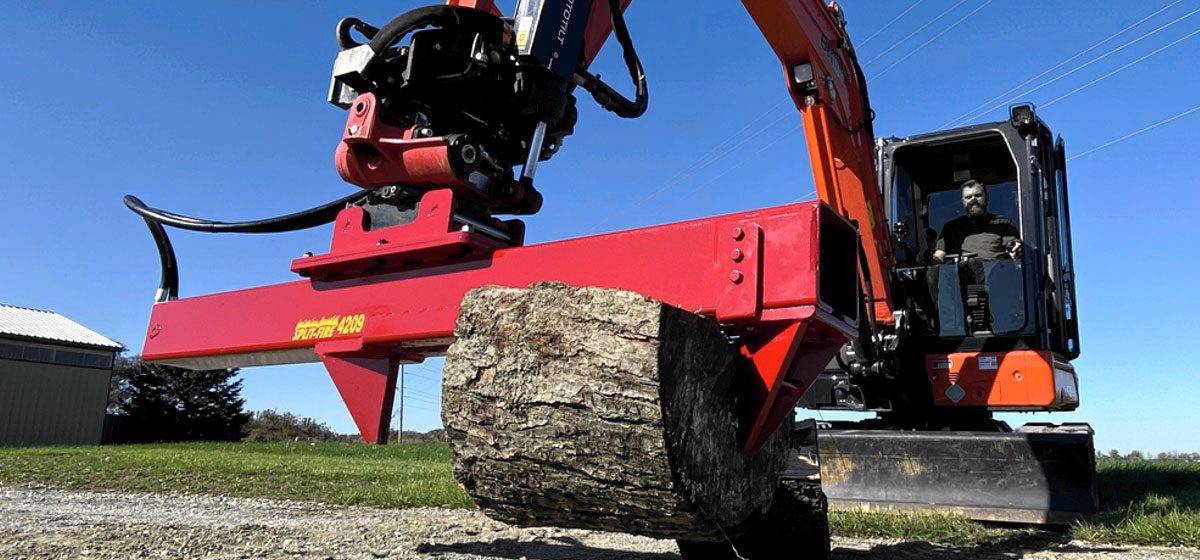

4209-excavator-log-splitter-in-action
Share with friends:

DEPOSIT

Minimum $500 deposit is required to have you
machine put on order.

DISCLAIMER

Once your machine is in the manufacturing
process the $500 is non refundable.
More Machine Info Below

MACHINE SPECS

Frame 7" x 7" steel tube
Log Capacity 40" - 48" diameter
Tonnage 32 tons @ 2900 psi
Cycle Speed Governed by excavator volume
Power Source Excavator Attach | Includes 100" hoses
Pump Excavator Pump Displacement
Reservoir Excavator
Stroke Length 24"
Quick Connects Not included
Overall Width 12"
Overall Length 76"
Overall Height 16"
Weight 430 lbs
Bed Height Excavator Plates raise / lower
Knife Height 12"
Cylinder Size 4½” x 24"
Hydraulic Flow 8 gpm - 20 gpm
Total Cycle Time = 7.625(Stroke/GPM)
