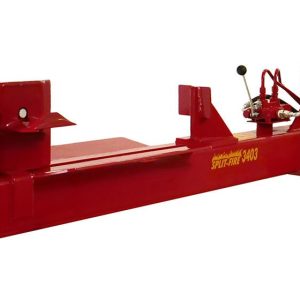

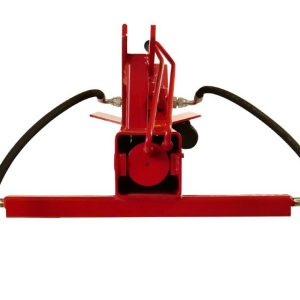

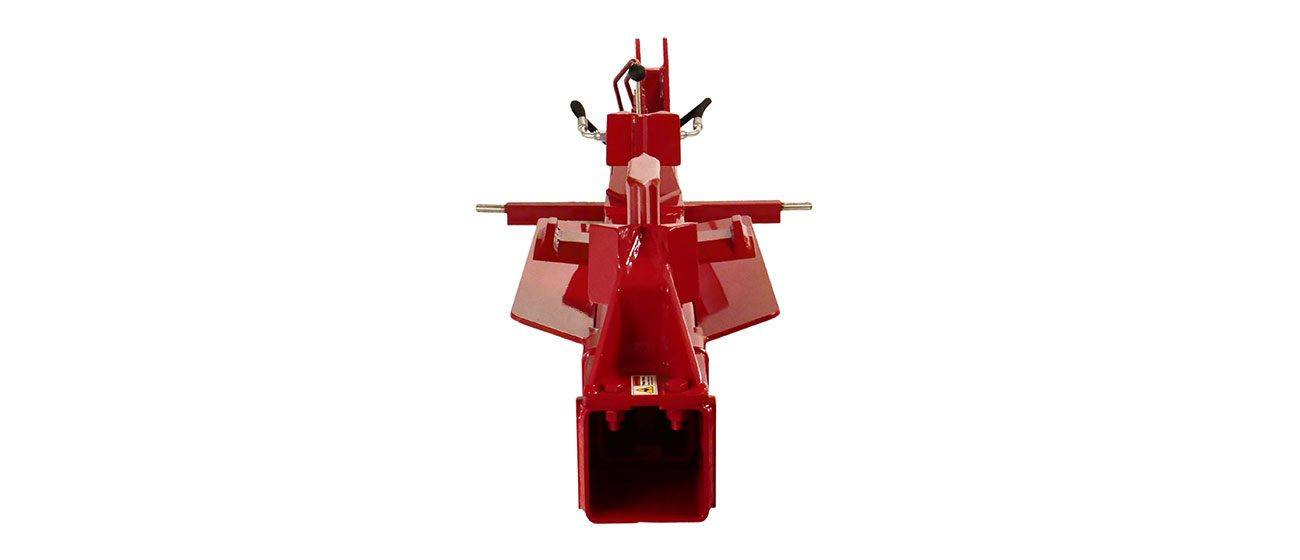

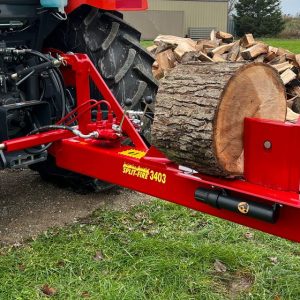

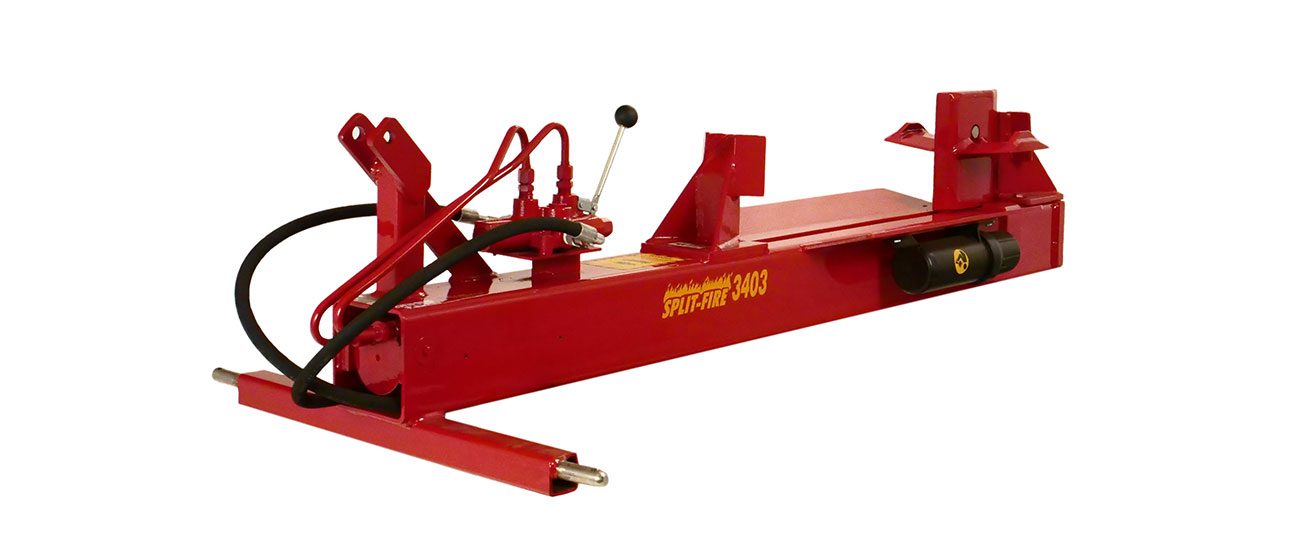

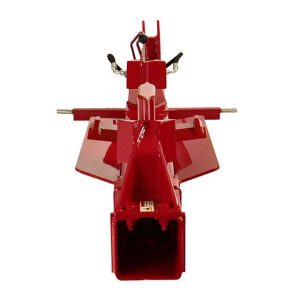

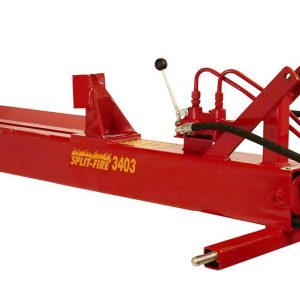

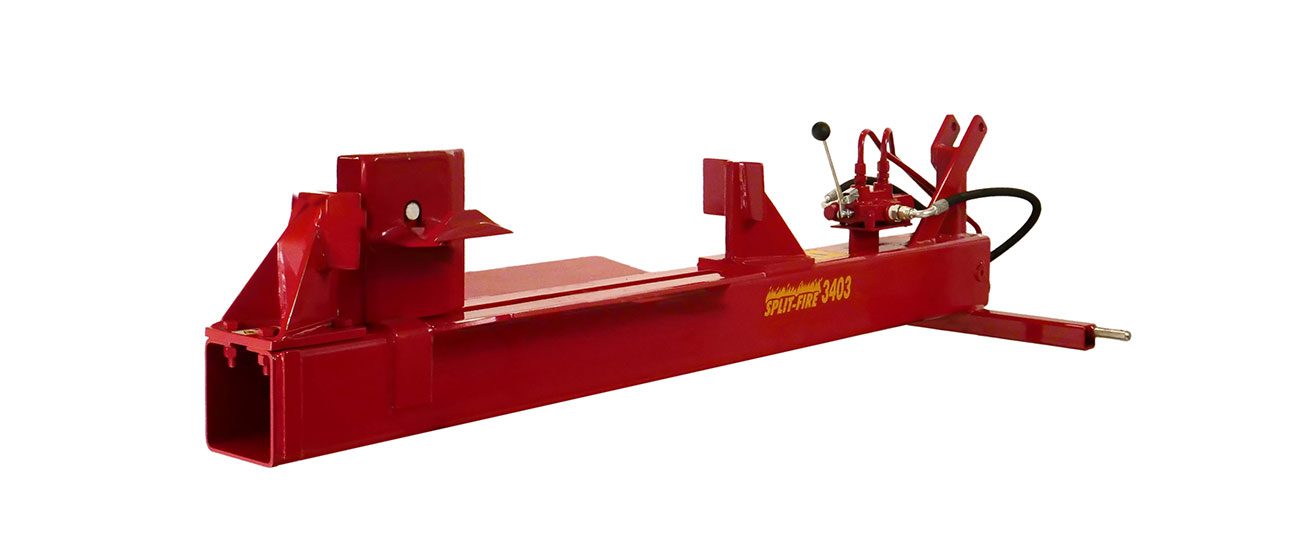

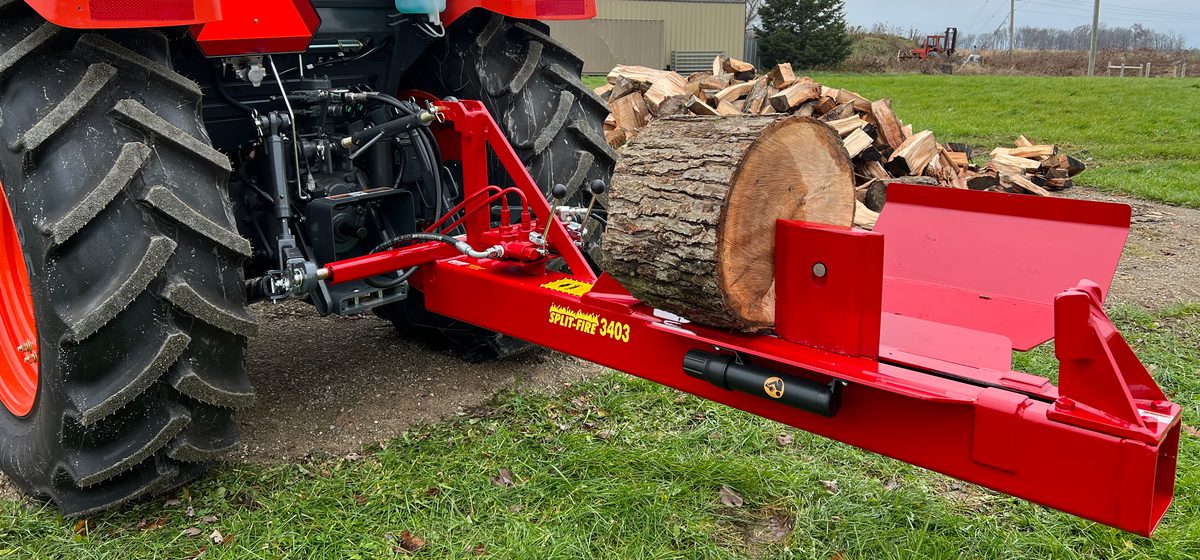

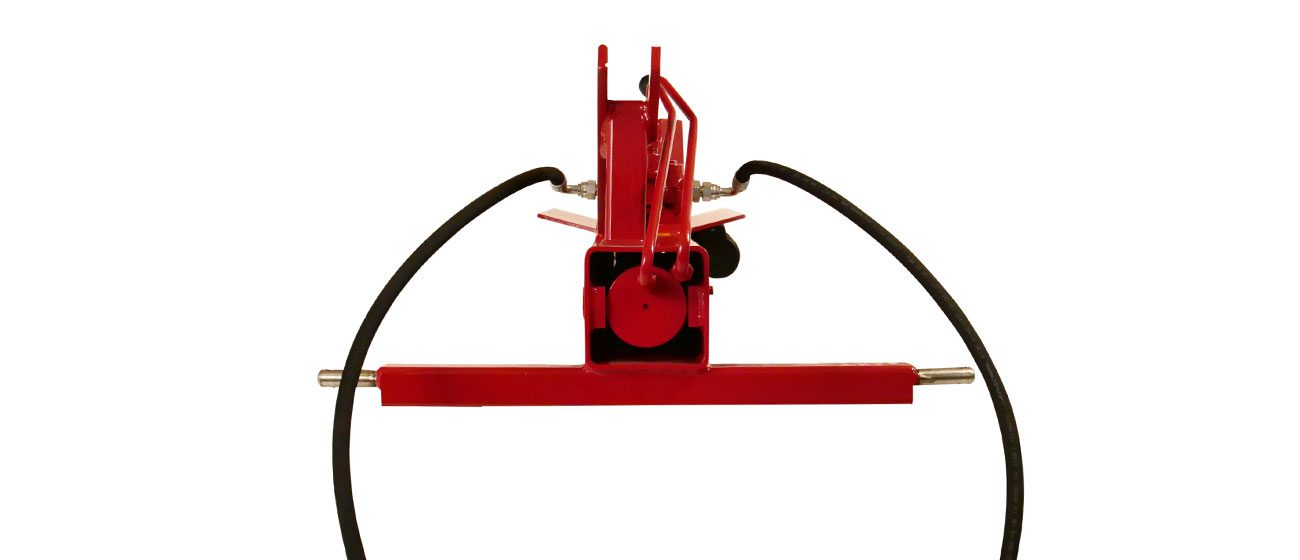

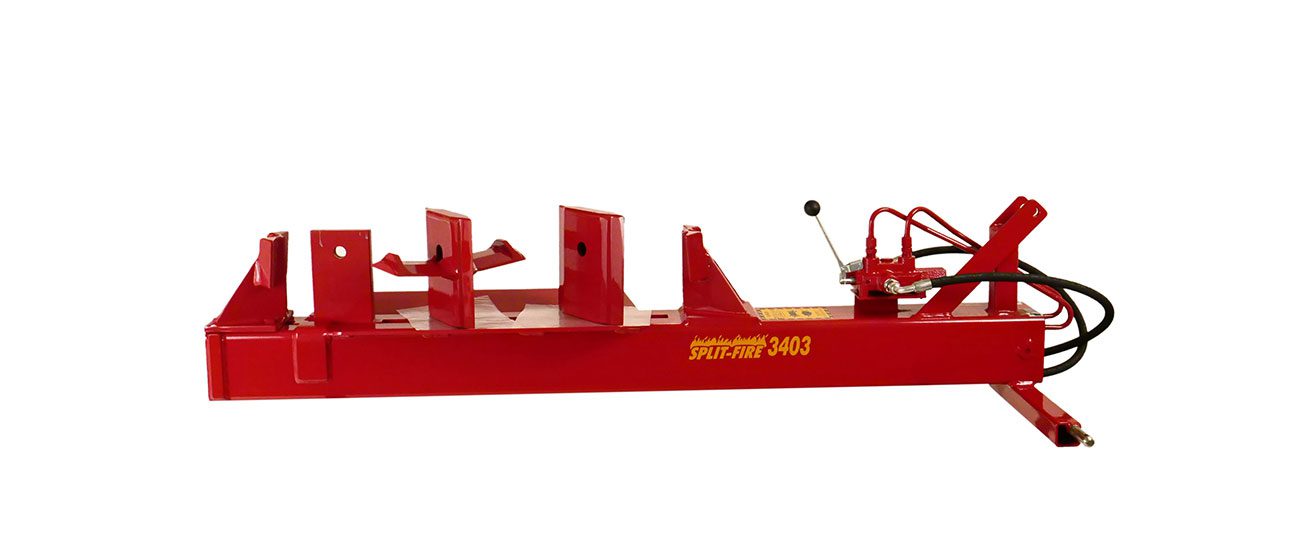

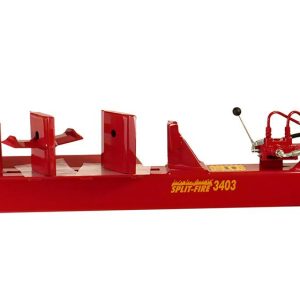

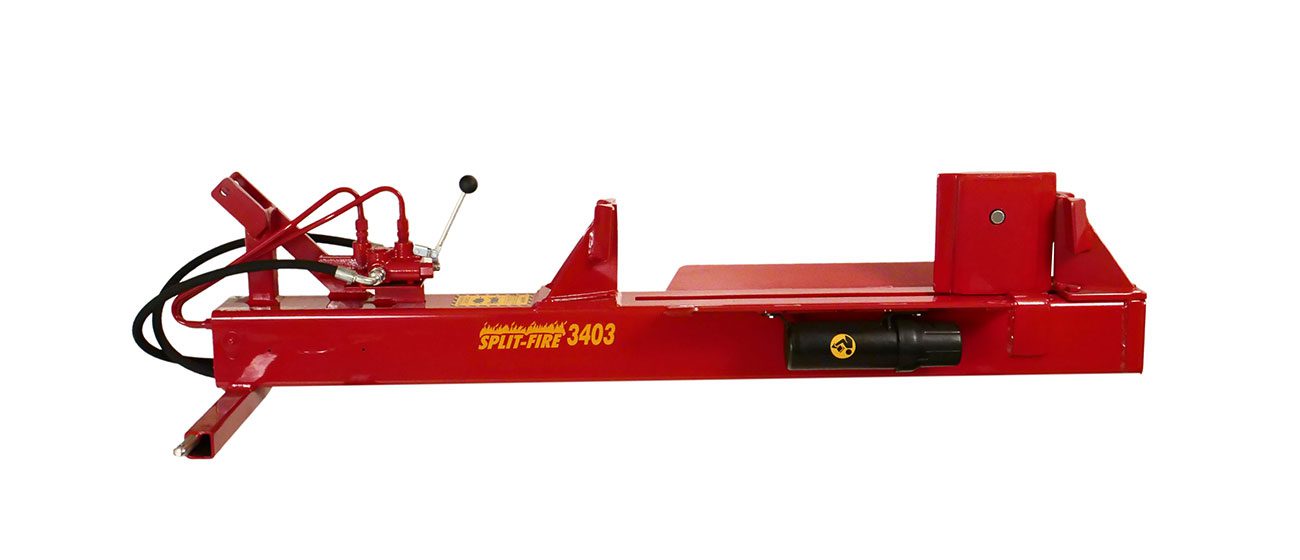

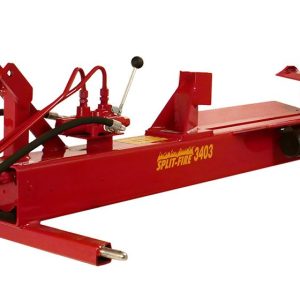

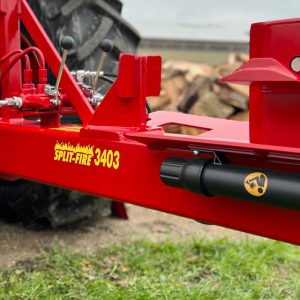

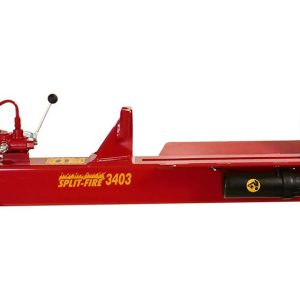

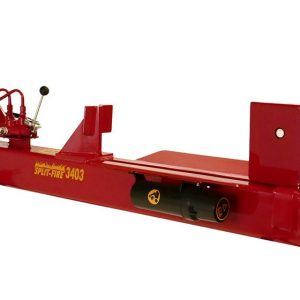

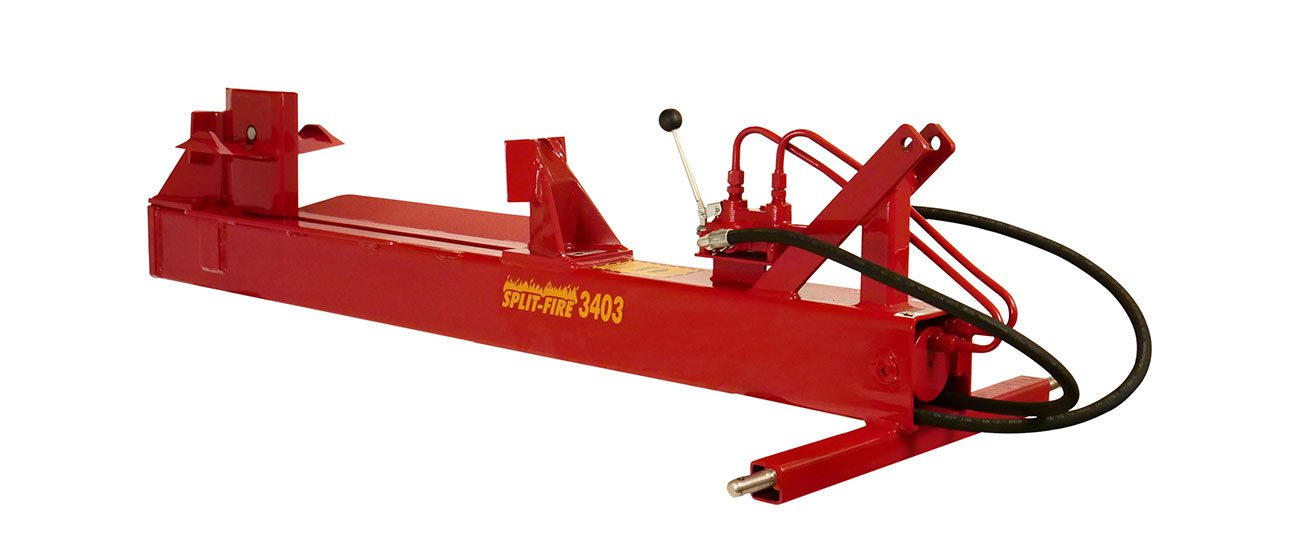

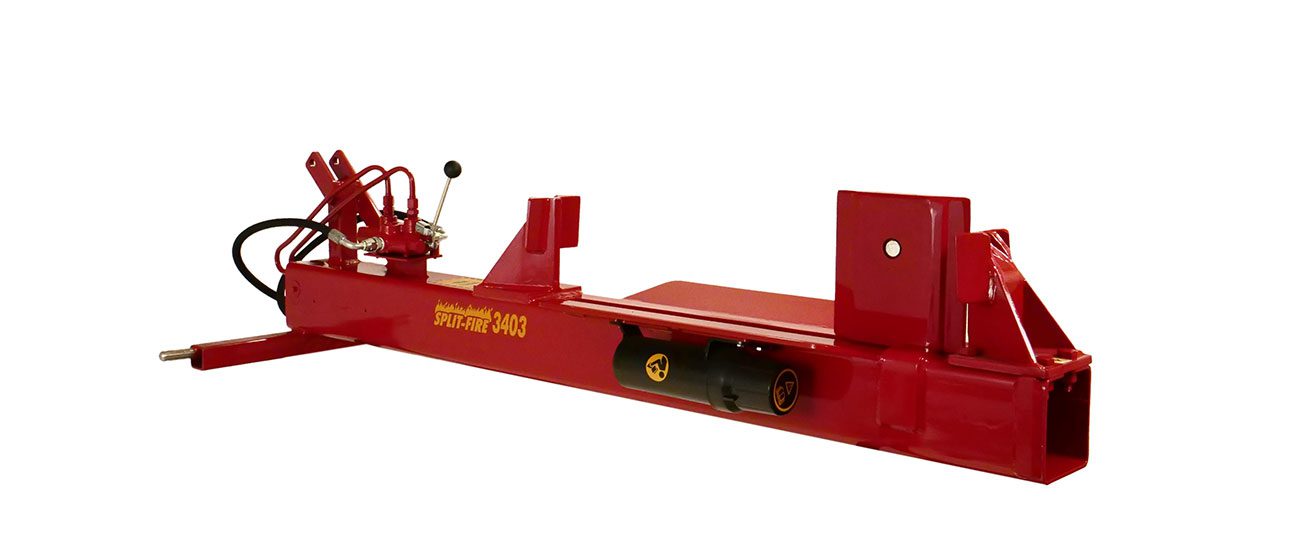

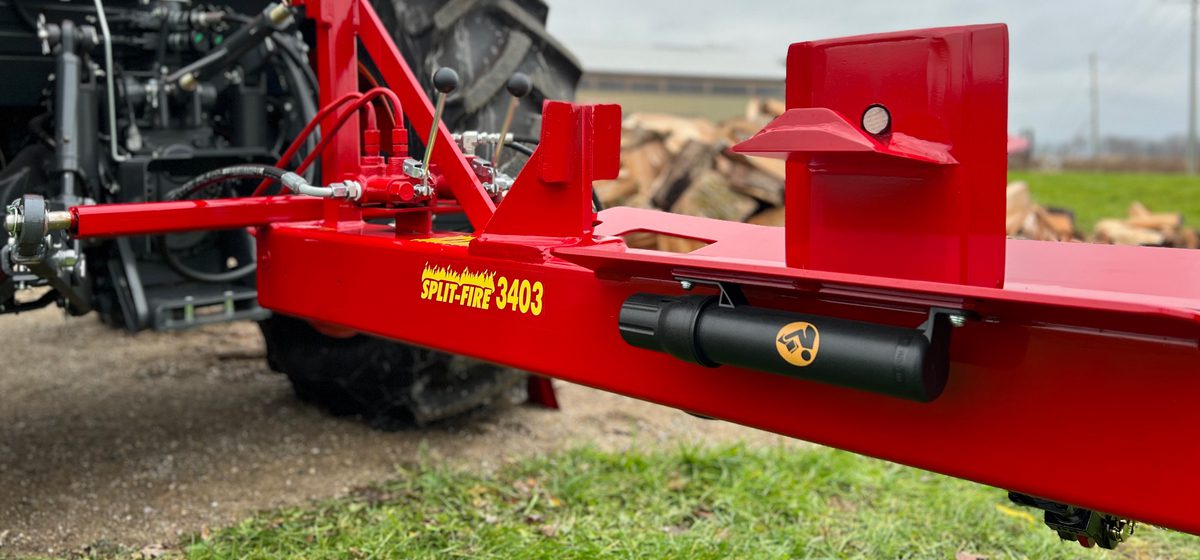

Like the 3203 log splitter, the 3403 offers the same 20 tons of power at 2900 PSI but increases flexibility with a 2-way and 4-way knife. Whether you are splitting twisted tree line logs with the 2-way knife or quartering straight grain logs with the 4-way knife, the 3403 is sure to impress. Unlike conventional push style 3pt hitch log splitters, the 3403 offers a quick dual action that is safe and efficient.
The 3403 has an increased frame length, reinforced frame, heavier log stops, and specific 4-way slider compared to the 3203 log splitter. Just like all other Split-fire 3pt hitch log splitters, all fluid and power come from the tractor, so no maintenance is required. Add weld-on options to customize your wood splitter for your specific needs. A great option for farmers and homesteaders looking for added flexibility and productivity. Verify your tractors hydraulic specs with the manufacturer or a great resource like tractordata.com
$2,184.00
| Frame | 6" x 6" steel tube |
|---|---|
| Tonnage | 20 tons @ 2900 psi |
| Cycle Speed | 9 sec. @ 12 gpm | 14 sec. @ 8 gpm | 28 sec. @ 4gpm |
| Power Source | 3 Pt. Hitch |
| Pump | Tractor Pump Displacement |
| Reservoir | Tractor |
| Stroke Length | 24" |
| Bed Width | 15" |
| Quick Connects | Not included |
| Overall Width | 34" |
| Overall Length | 73" |
| Overall Height | 18" |
| Weight | 350 lbs |
| Bed Height | 3 Pt. Hitch Raise/Lower |
| Knife Height | 9½” / 2-way | 9½” / 4-way |
| Cylinder Size | 3½” x 24" |
| Hydraulic Flow | 4 gpm – 12 gpm |
